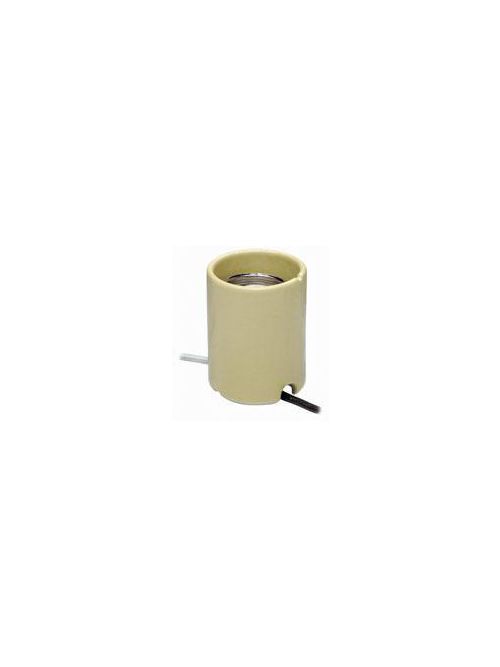

Leviton 8750 600 Volt 1500 W Yellow Glazed Porcelain Screw Mount 1-Piece 1-Circuit Mogul HID Lampholder
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$41.29/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 8750
Codale Part # 43238

Specifications

Mechanical Specifications

  • Termination: 12-Inch 14AWG SEW-2 Glass Braid
  • Wattage Rating: 1500W
  • Mounting Type: 2 8-32 Screws
  • Circuit: Single Circuit
  • Voltage: 600 Volt

Material Specifications

  • Mounting Type: 2 8-32 Screws
  • Shell Material: Glazed Porcelain
  • Lamp Socket Base: Mogul
  • Access: Back Wired
  • Construction: One-Piece
  • Lamp Type: Super Metalarc Horz HID
  • Style Name: POS Position Oriented

Standards and Certifications

  • CSA Certified: File LR-1863
  • UL Listed: File E13402

Product Features

  • Warranty: 1 Year Limited
  • Lamp Base: Mogul
  • Termination: 12-Inch 14AWG SEW-2 Glass Braid
  • Center Coil Spring: Stainless Steel
  • Light Type: HID / Mogul
  • Shell Material: Glazed Porcelain
  • Color: Yellow
  • Standards and Certifications: UL/CSA
  • Country Of Origin: China
  • Access: Back Wired
  • Lamp Socket Base: Mogul
  • Construction: One-Piece
  • Voltage: 600 Volt
  • Circuit: Single Circuit
  • Screw Shell Material: Nickel-Plated Copper Alloy
  • Mounting Type: 2 8-32 Screws
  • Wattage Rating: 1500W
  • Lamp Type: Super Metalarc Horz HID
  • Availability: Distribution
  • Style Name: POS Position Oriented
  • Contact Material: Nickel-Plated Copper-Alloy

Overview

UPC 07847715547
Codale Part No. 43238
Color Yellow
Construction One-Piece
Mounting 2 8-32 Screws
Lamp Type Super Metalarc Horz HID
Contact Material Nickel-Plated Copper-Alloy
Warranty length 1 Year Limited
Termination 12-Inch 14AWG SEW-2 Glass Braid
Item Long Description Pos Position Oriented, Mogul Base, One-Piece, Keyless, HID, Glazed Porcelain Lampholder
MDM Pkg GTiN 00078477155479
Finish Glazed
Warranty Length 1 yr
Color Yellow
Voltage 600 Volt
Type Keyless
Material Porcelain
Circuit Type Single Circuit
Applications For Commercial use
Mounting Type Locknut
Country of Origin China
Style POS Position Oriented
Standard CSA,UL
Wattage 1500 Watt
Base Mogul
Family Brand Name Leviton
Lamp Type Super Metalarc Horz HID
Construction One-Piece
Light Type HID / Mogul
Contact Material Nickel-Plated Copper-Alloy
CSA LR-1863
