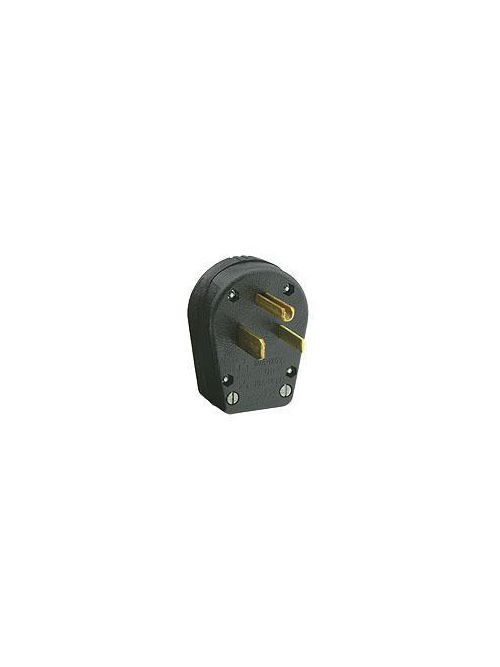

LEVITON 931 30AMP 250V OR 50AMP250V NEMA6-30P OR NEMA6-50PINTERCHANGEABLE ANGLE PLUG
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$30.29/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 931
Codale Part # 43065
30/50 Amp, 250 Volt, NEMA 6-30P/6-50P, 2P, 3W, Plug, Straight Blade, Commercial Grade, Angle, Grounding - Black

Overview

UPC 07847715536
Catalog Description 30/50 Amp, 250 Volt, Plug, Angle, Grounding, Black
Codale Part No. 43065
Color Black
Operating Temperature -40°C to 60°C
Flammability Rating Rated V-2 per UL94
Warranty length 2-Year Limited
Body Material Thermoplastic
Grounding Grounding
Product Short Description 30/50 Amp, 250 Volt, NEMA 6-30P/6-50P, 2P, 3W, Plug, Straight Blade, Commercial Grade, Angle, Grounding - Black
Item Long Description 30/50 Amp, 250 Volt, Plug, Angle, Grounding, Black
MDM Pkg GTiN 00078477155363
Warranty Length 2 yr
Size 3.49 H x 2.56 W x 1.44 D IN
Color Black
Operating Temperature -40 C
Voltage 250 Volt
Type Angle,Straight Blade
Material Thermoplastic
Conductor Size 14-6 AWG
Applications Commercial
Mounting Type Cable
Country of Origin Mexico
Wire Size 0.630-150 in
Standard ANSI C-73
Blade Type Brass
Body Material Thermoplastic
Screw Type Steel,Zinc-Plated
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 6-30P,6-50P,WD-6
Dielectric 2000 V
Flamability Class Rated V-2 Per UL94
Grounding Grounding
Contact Material Brass
Amperage 30 Amp
Blade Dimensions 2.56 in W x 1.44 in
Cord Size 0.630 - 150 in
Environmental Conditions Operating Temperatur
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 150 %
