Manufacturer | Eaton Crouse-Hinds |
---|---|
Mfg Catalog # | AR642 |
Codale Part # | 12822 |
UPC | 78227406270 |

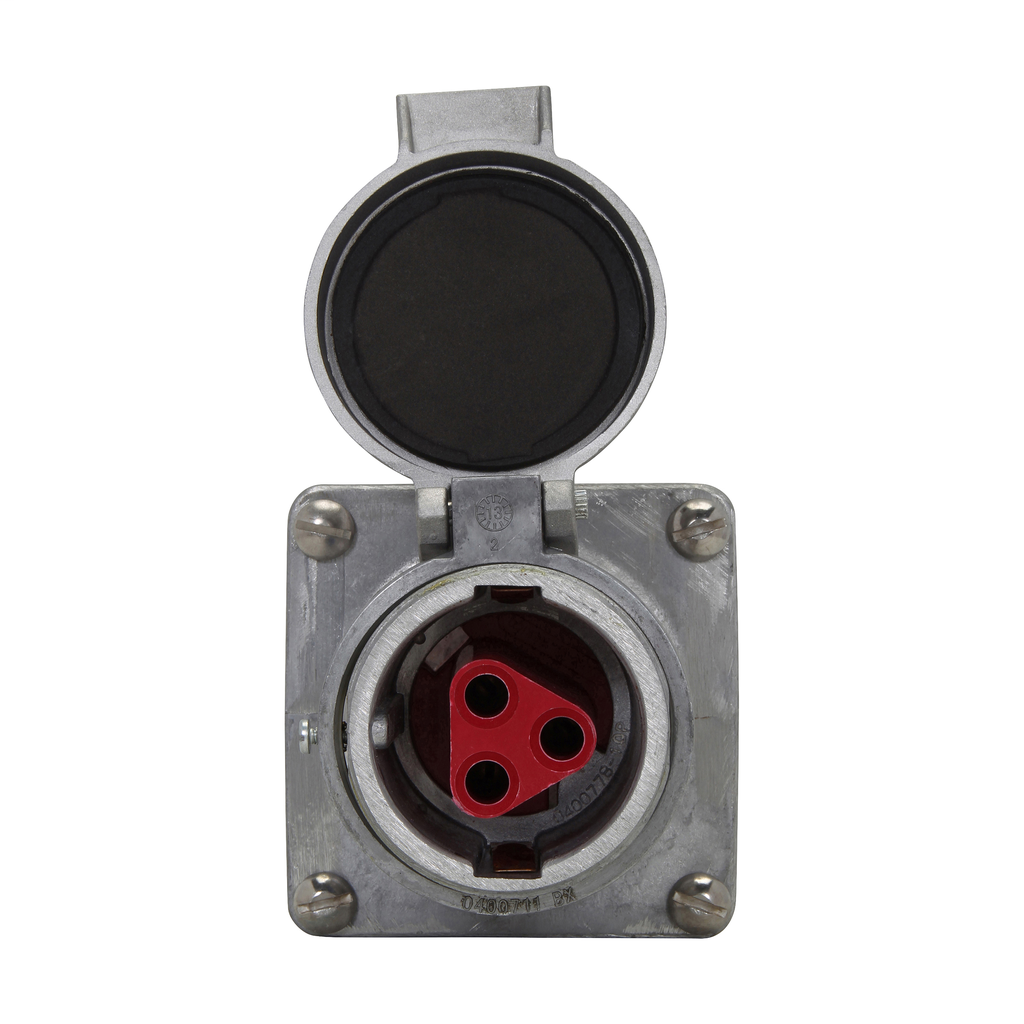

Product Description | 60A 3W4P PIN AND SLEEVE RECEPTACLE HOUSING |
Catalog Description | ARKTITE 60 AMP RECEPTACLE HOUSING 3 WIRE 4 POLE STYLE2 0.50 to 1.45 CABLE DIAMETER |
Codale Part No. | 12822 |
Material | Copper-free aluminum |
Voltage Rating | 600 Vac, 250 Vdc |
Length | 4.25 IN |
Amperage Rating | 60A |
Width | 4.25 IN |
Height | 4.25 IN |
Weight | 2.7 LB |
Product Short Description | Eaton's Crouse-Hinds series Arktite AR Spring Door Receptacle |
Item Long Description | Eaton Crouse-Hinds series Arktite AR receptacle, 60A, Three-wire, four-pole, 50-400 Hz, Style 2, Copper-free aluminum, Spring door, 600 Vac/250 Vdc |
MDM Pkg GTiN | 00782274062709 |
Length | 4.25 in |
Width | 4.25 in |
Size | 4-1/4 In Length X 4-1/4 Width X 5-1/4 Height |
Voltage | 250 Volt |
Type | Watertight, Pin and Sleeve |
Material | Aluminum, Fiberglass |
Applications | For Industrial use |
Height | 4.25 in |
Weight | 2.7 lb |
Wire Size | 6-4 AWG (Building), |
Frequency | 50-400 Hz |
Family Brand Name | Crouse-Hinds Series |
Insulation Material | Fiberglass-Reinforce |
Amperage | 60 Amp |
Sub Brand | Arktite |
MDM PRODUCT KEYWORD | JRF634H, VR642, ADR6034 |
Conductor Size | 6-4 AWG (Building), |
Connection Type | Grounding Style 2 |
Blade Dimensions | 4-1/4 in L x 4-1/4 i |
Number of Poles | 4 Pole |
Number of Wires | 3 |
Used With | CEE 63 A Connector |
