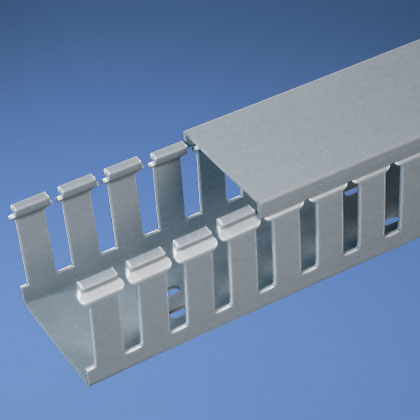

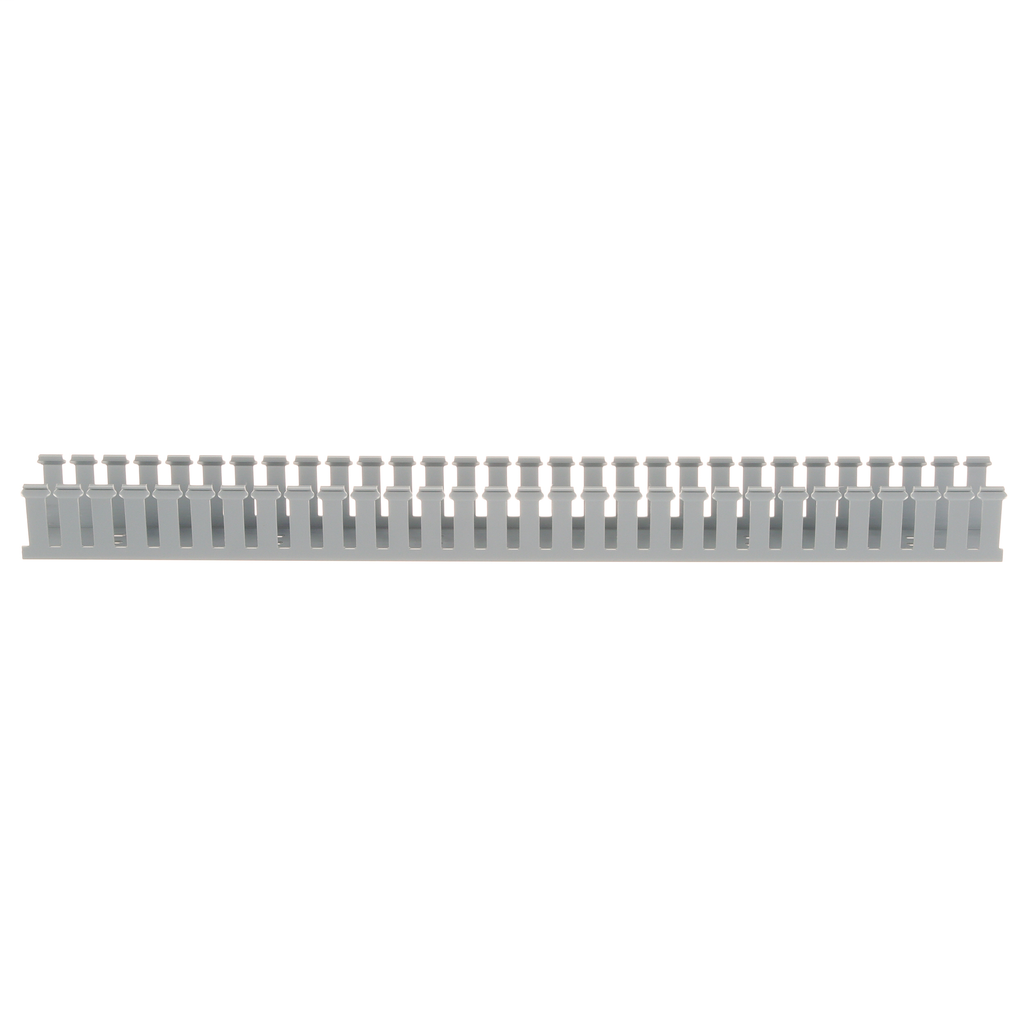

Panduit G2X2LG6 2 x 2 Inch x 6 Foot Light Gray PVC Slotted Duct
Product image thumbnail 0
Product image thumbnail 1
$6.79/ft (1 ft)
ft
Adding...
Order in multiples of 6 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # G2X2LG6
Codale Part # 119901

Specifications

  • Product Segment: IEI
  • Application: Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications
  • Product Type: Base Wiring Duct
  • Color: Light Gray
  • Cover Part Number: C2LG6
  • Flammability Rating: UL94V-0
  • Includes: Base Only
  • Standards Met: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
  • Material: PVC
  • Mount Method: Mounting Holes
  • Measurement System: Imperial
  • Wiring Duct Style: Wide Slot Wiring Duct
  • Wiring Duct Type: G
  • Overall Height (In.): 2.12
  • Overall Height (mm): 53.8
  • Overall Length (ft.): 6
  • Overall Length (m): 1.8
  • Overall Width (In.): 2.25
  • Overall Width (mm): 57.2
  • Slot Width (mm): 7.9
  • Sub Brand: Panduct®
  • Slot Width (In.): 0.31

Packaging Details

  • UPC: 07498354583
  • GTIN Package: 00074983545834
  • Standard Package Volume Ft3: 0.1312
  • Standard Package Weight Pounds: 1.5450
  • Std Package Height In: 2
  • Std Package Height MM: 50.8
  • Std Package Length In: 72
  • Std Package Length MM: 1828.8
  • Std Package Width In: 2
  • Std Package Width MM: 50.8
  • Std. Pkg. UOM: Foot
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 6
  • GTIN Carton: 50074983545839
  • Standard Carton Volume Ft3: 0.1312
  • Standard Carton Weight Pounds: 30.9000
  • Std Carton Height In: 4.7
  • Std Carton Height MM: 119.38
  • Std Carton Length In: 72.9
  • Std Carton Length MM: 1828.8
  • Std Carton Width In: 13.3
  • Std Carton Width MM: 337.82
  • Std Ctn Qty: 120
  • Min. Order UOM: Foot
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983545834
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 6
  • Pallet Quantity: 2,520
  • Pallet Volume: 55.094627
  • Pallet Weight: 648.9000

Overview

Codale Part No. 119901
Product Long Description Slotted Duct, Polyvinyl Chloride, 2 Inches x 2 Inches x 6 Feet, Light Gray, Base and covers sold separately, Made of lead-free PVC, UL Recognized continuous use temperature 122 Degrees Fahrenheit (50 Degrees Celsius), UL94 Flammability Rating of V-0, Conforms with NFPA 79-2002 section 14.3.1 requirement for flame retardant material, Provided with mounting holes.
Sub Brand Panduct®
Application (1) Type C Wiring Duct Cover with Protective Film Reduces Scrap and Labor Costs by Protecting the Surface during Storage, Handling, and Installation
Material Lead-Free PVC
Color Light Gray
Flammability Rating UL94 V-0
Product UPC 07498354583
Length 1.8 m
Width 57.2 mm
Size 57.2 x 53.8 mm
Color Light Gray
Type Type G
Material PVC
Applications For Indoor use
Height 2.12 in
Country of Origin US
Pkg Qty 6
Family Brand Name Panduit
Tc Connection Standard Mounting Holes
Overall Length 6 ft
Sub Brand Panduct
MDM DDS PROP65 WARNING No
Mounting Type Standard Hole
Depth 53.8 mm
Slot Size 7.9 mm
