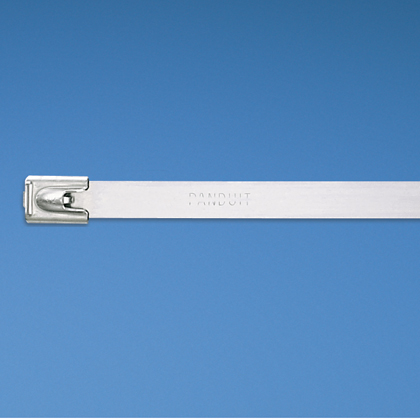

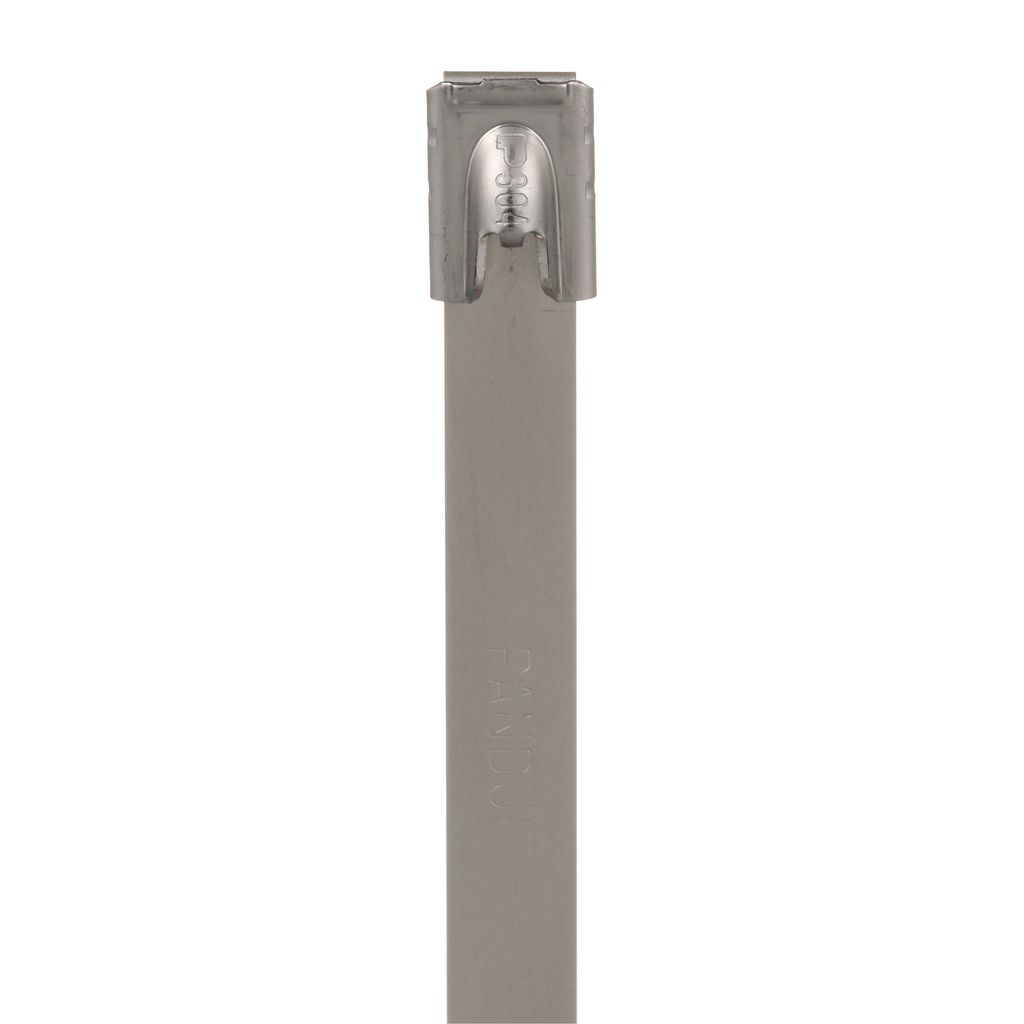

PAN MLT4H-LP316 Panduit Pan-Steel M
Product image thumbnail 0
Product image thumbnail 1
$1,441.99/m (1000 ea)
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # MLT4H-LP316
Codale Part # 119814

Specifications

  • Product Segment: IEI
  • Application: Harsh Environment
  • Product Type: Stainless Steel Cable Ties
  • Color: Metallic
  • For Use With: GS4MT-E, HTMT, PPTMT, ST2MT
  • Material: Stainless Steel Type 316
  • Minimum Bundle Diameter (In.): 0.5
  • Maximum Bundle Diameter (In.): 4
  • Sub Brand: Pan-Steel®
  • Minimum Bundle Diameter (mm): 12.7
  • Maximum Bundle Diameter (mm): 102
  • Maximum Operating Temperature (°C): 538
  • Minimum Operating Temperature (°C): -60
  • Minimum Operating Temperature (°F): -76
  • Maximum Operating Temperature (°F): 1000
  • Overall Length (In.): 14.3
  • Overall Length (mm): 362
  • Body Width (mm): 7.9
  • Body Width (In.): 0.31
  • Body Thickness (mm): 0.25
  • Body Thickness (In.): 0.01
  • Minimum Loop Tensile Strength (N): 2000
  • Minimum Loop Tensile Strength (lb): 450

Packaging Details

  • UPC: 07498354388
  • GTIN Package: 00074983543885
  • Standard Package Volume Ft3: 0.0238
  • Standard Package Weight Pounds: 0.8650
  • Std Package Height In: 1.3
  • Std Package Height MM: 33.02
  • Std Package Length In: 15.1
  • Std Package Length MM: 383.54
  • Std Package Width In: 4.3
  • Std Package Width MM: 109.22
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • GTIN Carton: 50074983543880
  • Standard Carton Volume Ft3: 0.0238
  • Standard Carton Weight Pounds: 4.3250
  • Std Carton Height In: 1.95
  • Std Carton Height MM: 49.53
  • Std Carton Length In: 18.85
  • Std Carton Length MM: 383.54
  • Std Carton Width In: 5.7
  • Std Carton Width MM: 144.78
  • Std Ctn Qty: 250
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: US,CN
  • RoHS Compliant: Compliant
  • EAN: 00074983543885
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 50
  • Pallet Quantity: 72,000
  • Pallet Volume: 34.307000
  • Pallet Weight: 1,245.6000

Overview

Codale Part No. 119814
Product Long Description MLT Tie, 304 Stainless Steel, Heavy Cross Section, 14.3 Inches (362.0mm) Length x 0.31 Inch (7.9mm) Width x 0.010 Inch (0.25mm) Thickness. Self-locking head design speeds installation and locks into place at any length along the tie body. Provides a strong. durable method of cable bundling. Can be used in a wide range of indoor, outdoor, and underground (including direct burial) applications. Smooth surfaces and rounded edges assures cable protection and worker safety.
Material 304 Stainless Steel
Color Natural
Product UPC 07498354388
Length 362 mm
Width 7.9 mm
Color Natural
Type Heavy Cross Section, Harsh
Thickness 0.2 mm
Material Stainless Steel
Applications Corrosive Environment
Country of Origin CN,US
Pkg Qty 50
Family Brand Name Panduit
Max Operating Temperature 1 degrees F
Overall Length 14.3 in
Standard Packaging Qty 50
Min Operating Temperature -76 degrees F
Environmental Conditions Corrosive Environment
Tensile Strength 2000 N
Bundle Diameter NA mm
Sub Brand Pan-Steel
MDM DDS PROP65 WARNING No
