UPC | 78227405240 |

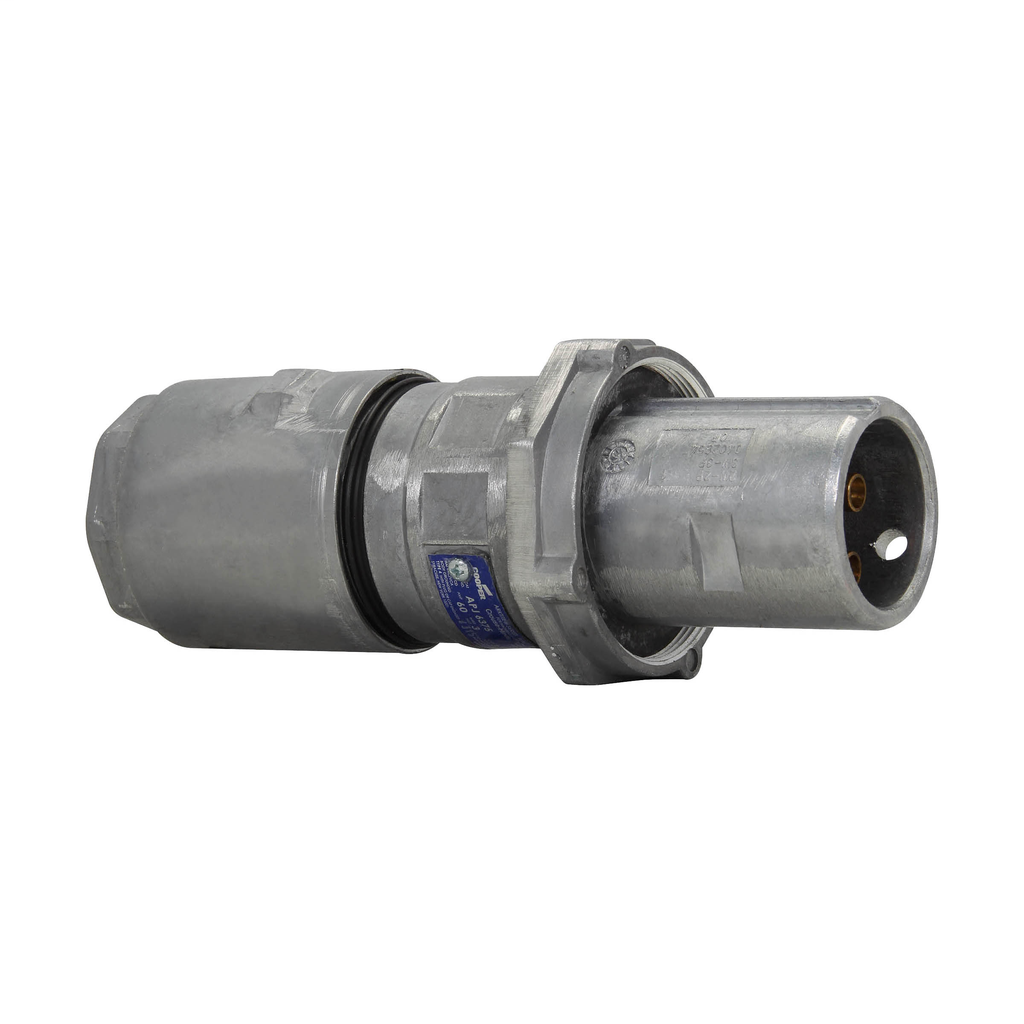

Product Description | 100 AMP 3W4P PIN AND SLEEVE PLUG |
Catalog Description | ARKTITE 100 AMP PLUG 3 WIRE 4 POLE STYLE 2 0.875 TO 1.70 CABLE DIAMETER |
Codale Part No. | 13029 |
Material | Copper-free aluminum |
Length | 10.125 IN |
Amperage Rating | 100A |
Width | 4.125 IN |
Height | 4.125 IN |
Weight | 4.15 LB |
Cable Diameter | 0.875-1.70" |
Product Short Description | Eaton's Crouse-Hinds series Arktite APJ Plug |
Item Long Description | Eaton Crouse-Hinds series Arktite APJ plug, 100A, 0.875-1.70", Three-wire, four-pole, 50-400 Hz, Style 2, Copper-free aluminum, 600 Vac,250 Vdc |
MDM Pkg GTiN | 00782274052403 |
Length | 10.13 in |
Width | 4.125 in |
Size | 4-1/8 In Diameter X 10-1/8 In Length |
Voltage | 600 Volt |
Type | Watertight |
Material | Aluminum |
Cord Type | 0.875 To 1.700 In |
Applications | For Industrial Use |
Height | 4.13 in |
Weight | 4.15 lb |
Wire Size | 4-1 AWG (Building), |
Cord Range | 0.875 - 1.700 in |
Standard | CSA C22.2,UL 1010,UL |
Frequency | 50-400 Hz |
Family Brand Name | Crouse-Hinds Series |
Amperage | 100 Amp |
Number of Poles | 4 Pole |
Sub Brand | Arktite |
Conductor Size | 4-1 AWG (Building), |
Grounding | Grounding Style 1 |
Blade Dimensions | 4-1/8 in dia x 10-1/ |
Cord Size | 0.875 - 1.7 in |
Number of Wires | 3 |
