Manufacturer | 3M |
---|---|
Mfg Catalog # | UY2-BOX |
Codale Part # | 121045 |
UPC | 05111526121 |
Codale Part No. | 121045 |
Cable Type | PIC |
Connector Type | Butt/2 Conductor |
Wire Gauge | 26 - 19 AWG |

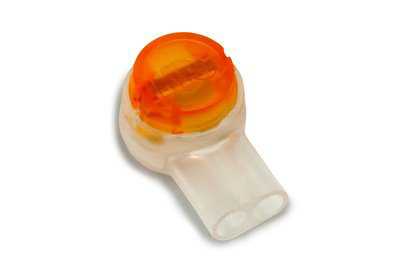

Item Long Description | The UY2's two ports accept any two solid copper conductor combinations of 19-26 AWG (0.9 mm-0.4 mm) filled or air core cable with a maximum insulation O.D. of 0.082 inch (2.08 mm). The wires joined can be different wire gauges. Factory inserted sealant insulates the connections, protects against corrosion and seals out moisture. In addition, the UY2 is available in a dry version, the UY2-D. |
Family Brand Name | 3M |
Color | Yellow |
Type | Insulated, Gel Filled |
Number of Conductors | 2 |
Applications | For Communications Application |
Cable Type | Solid Copper |
Cable Size | 26-19 AWG |
Housing Material | Polypropylene |
Contact Material | Copper |
Sub Brand | Scotchlok |
