Allen-Bradley 802MC-W3 Limit Switch Actuator
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 8 to 12 Days
Already a Customer? Log in to view your pricing
Manufacturer Allen Bradley / Rockwell
Mfg Catalog # 802MC-W3
Codale Part # 111628


  • Front mount for simplified mounting
  • Submersible
  • Autobaud
  • Proven reliability
  • Operating heads are mountable in four positions, 90┬░ apart
  • Each output programmable to N.O. or N.C.
  • Optimized for low energy use
  • Multiple operator styles
  • Class I, Groups B, C, and D or Class II, Groups E, F and G
  • NEMA Type 4 watertight construction
  • NEMA Enclosure Type 13
  • Alternative to glass-enclosed reed switches or solid state devices
  • Dual outputs with distinct programmable angles to operate
  • Class I, groups B, C and D or Class II, groups E, F and G or Class III
  • Corrosion resistant
  • Suitable for machine connectivity and low-voltage circuits
  • Teach and learn angle
  • Alternative to oversized power contacts
  • Rugged construction
  • NEMA 6P/IP67 sealing
  • Snap acting contacts
  • Direct connection to DeviceNet┬« network
  • Direct opening action
  • Rugged metal construction
  • Multiple operator styles available:
  • Plug-in design
  • Configurable counters with resets on each output
  • Programmable travel to reset (hysteresis)
  • Long life and reliability
  • Pre-wired and factory sealed
  • Connect directly to PLC input
  • High contact reliability in contaminated atmospheres
  • Meets requirement for NEMA 1, 4X, 6P and 15 enclosures


Operating Lever Data

  • Lever Type: Corrosion Resistant Rod Lever
  • Rod Material and Length: Stainless Steel Rod, 5 In Long
  • Rod Diameter: 0.13 In

Additional Information

  • Message: Operating Lever 802T-W3F Should Not Be Used With 802M-NPY5 or 802M-ASY5 Switches.
  • Message: Do Not Use 802T-W7, 802T-W7A, 802T-W7B On Maintained Contact Limit Switches.


Codale Part No. 111628

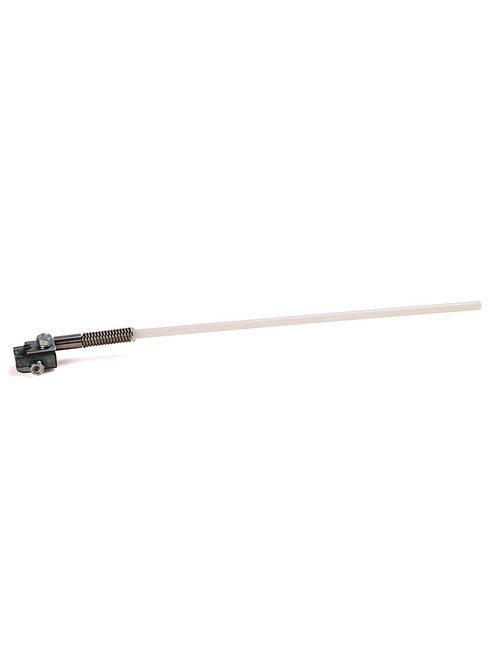

Product Long Description Actuator, 802MC Limit Switch Operator, Rod Lever Actuator, Corrosion Resistant, Stainless Steel, 0.13" Dia x 5" Long
Product UPC 78118047281
Type Corrosion-Resistant
Material Stainless Steel
Applications 802MC Limit Switch Actuator
Family Brand Name Allen Bradley
Blade Dimensions 0.13 in dia x 11-1/2 in L
Used With 802T, 802M, 802MC, 802X, 802XR Limit Switch
Sub Brand Rockwell
Standard CCC,CE,CSA,KC
