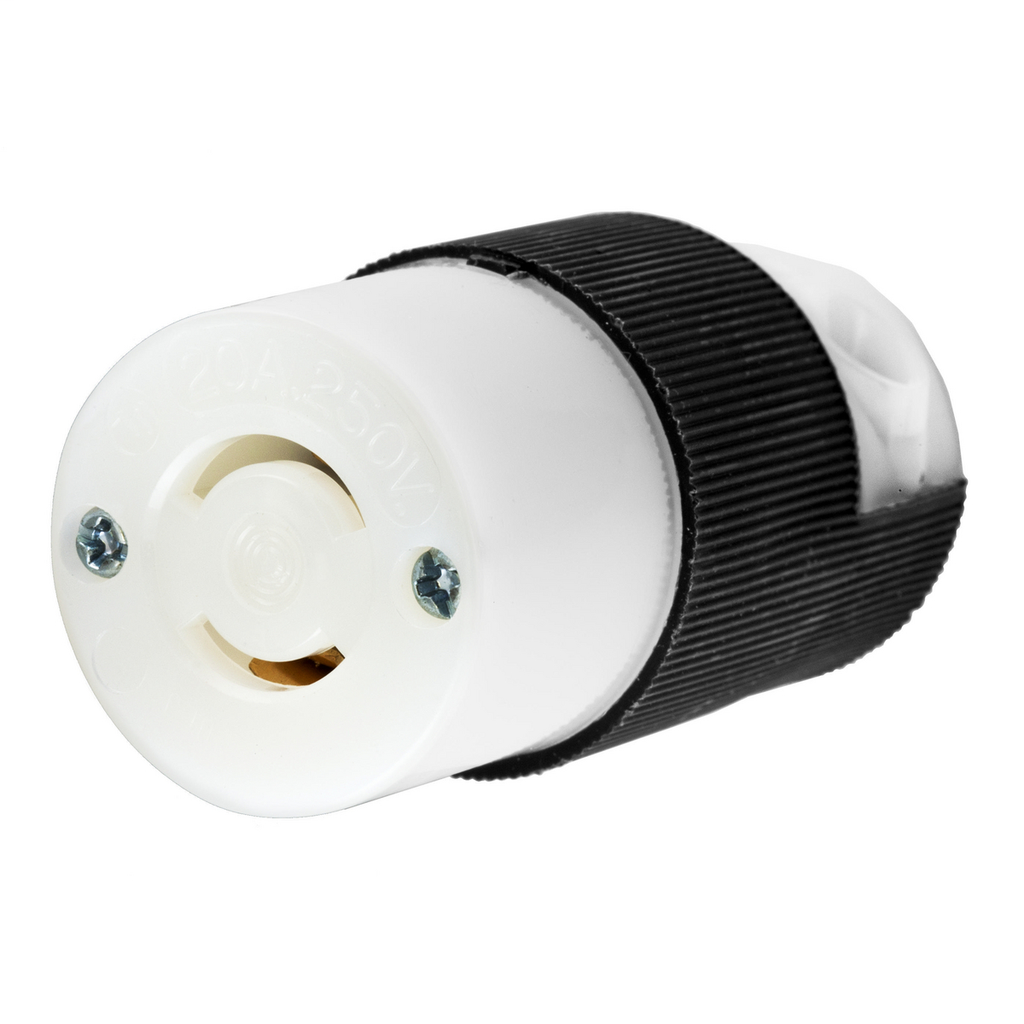

HUBBELL HBL7101C LKG CONN-NEMA L2-20R
$23.97/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell Wiring Device-Kellems
Mfg Catalog # HBL7101C
Codale Part # 110413
HUBBELL HBL7101C LKG CONN-NEMA L2-20R

Overview

UPC 78358517700
Catalog Description LKG CONN, 20A 250V, L2-20R, B/W
Codale Part No. 110413
Product Long Description Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 250V AC, 2-Pole 2-Wire Non Grounding, NEMA L2-20R, Screw Terminal, Black and White Nylon.
Type Connector Body
Application Heavy Duty Industrial
Material Nylon
Color Black, White
Voltage Rating 250 VAC
Length 1.53 in
Amperage Rating 20 A
Width 1.53 in
Number of Poles 2-Pole
Temperature Rating Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Wire Size #18 AWG to #10 AWG
Height 2.78 in
NEMA Rating L2-20P
Insulation Material Insulated Body
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Number of Wires / Conductors 2-Wire
Enviromental Conditions Indoor Dry Unless Protected By Additional Means
Weight 0.15 lb
Current Rating 20 A
Dielectric Strength Withstands 2,000V minimum
UNSPSC 39121421
Product Short Description Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 20A 250V, 2-Pole 2-Wire Non Grounding, L2-20R, Screw Terminal, Black and W hite
Size 1.53 in x 1.53 in x 2.78 in
Item Long Description Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 250V AC, 2-Pole 2-Wire Non Grounding, NEMA L2-20R, Screw Terminal, Black and White Nylon.
MDM Pkg GTiN 00783585177007
Length 1.53 in
Width 1.53 in
Size 1.53 in x 1.53 in x 2.78 in
Color Black and White
Voltage 250 Volt
Type Insulated, Standard, 2-Pole
Material Composite
Number of Conductors 2-Wire Non-Grounding
Conductor Size 12 - 10 AWG
Applications Heavy Duty Industrial
Height 2.78 in
Weight 0.15 lb
Connection Type Pressure Screw Termi
Temperature Rating 75 C Maximum Contin
Family Brand Name Hubbell Wiring Devic
Tc Connection Pressure Screw Termi
Current 20 A
Number of Poles 2 Pole
Number of Wires 2
Sub Brand Twist-Lock, Insulgr
Standard Fed.Spec.W-C-596
Environmental Conditions Indoor Dry Unless Pr
