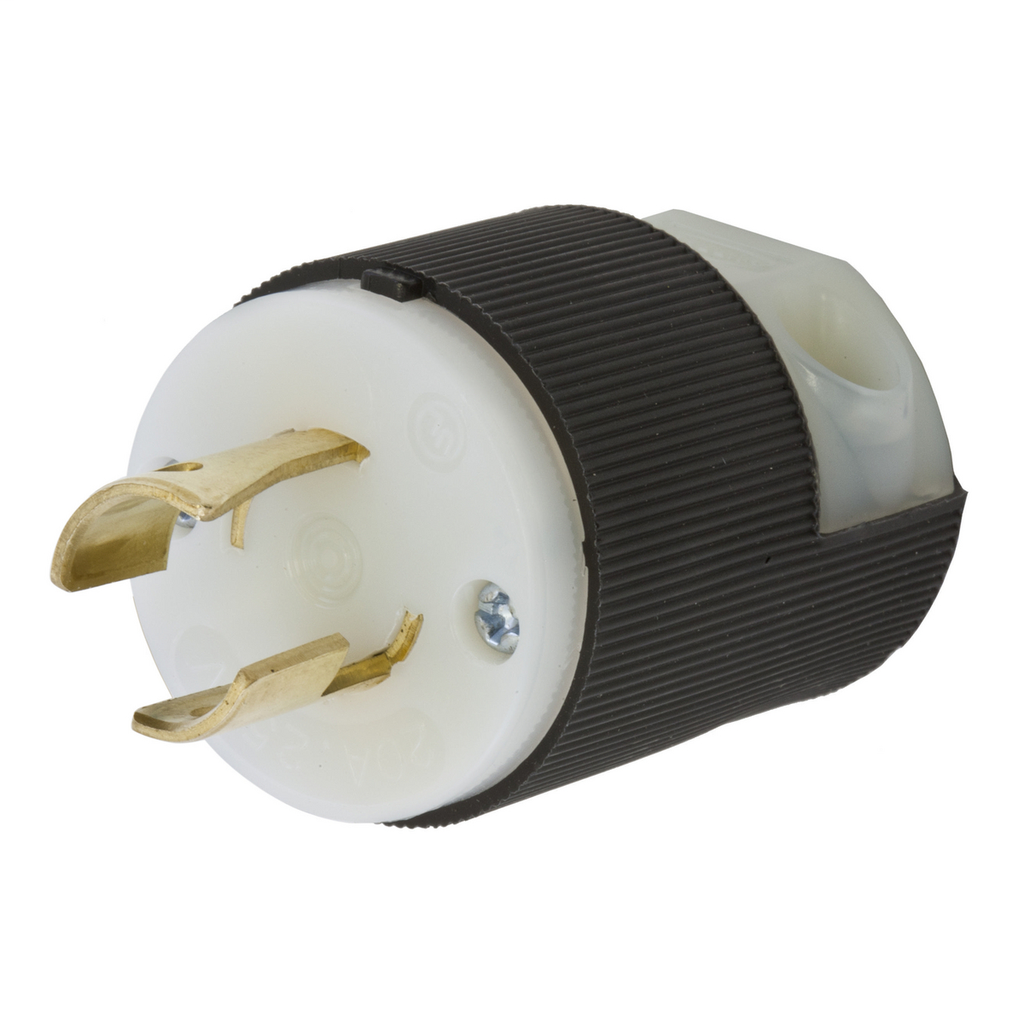

HUBBELL HBL7102C LKG PLUG-NMA L2-20P
$20.07/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell Wiring Device-Kellems
Mfg Catalog # HBL7102C
Codale Part # 110414
HUBBELL HBL7102C LKG PLUG-NMA L2-20P

Overview

UPC 78358517705
Catalog Description LKG PLUG, 20A 250V, L2-20P, B/W
Codale Part No. 110414
Product Long Description Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 20A 250V, 2-Pole 2-Wire Non-Grounding, NEMA L2-20P, Screw Terminal, Black and White Nylon, Polarized.
Type Plugs
Application Extra Heavy Duty Industrial
Material Nylon
Color Black, White
Voltage Rating 250 VAC
Length 1.53 in
Amperage Rating 20 A
Width 1.53 in
Number of Poles 2-Pole
Wire Size #16 AWG to #8 AWG
Height 1.97 in
Phase Single Phase
Wattage 5000 W
NEMA Rating L2-20P
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Number of Wires / Conductors 2-Wire
Enviromental Conditions Indoor Dry Unless Protected By Additional Means
Weight 0.15 lb
Cord Type All Listed Portables
Current Rating 20 A
Dielectric Strength Withstands 2,000V minimum
UNSPSC 39121402
Product Short Description Locking Devices, Twist-Lock®, Industrial, Male Plug, 20A 250V, 2-Pole 2-Wire Non-Grounding, L2-20P, Screw Terminal, Black and White
Size 1.53 in x 1.53 in x 1.97 in
Item Long Description Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 20A 250V, 2-Pole 2-Wire Non-Grounding, NEMA L2-20P, Screw Terminal, Black and White Nylon, Polarized.
MDM Pkg GTiN 00783585177052
Length 1.53 in
Width 1.53 in
Size 1.53 in x 1.53 in x 1.97 in
Color Black/White
Voltage 250 Volt
Type Insulgrip, Standard Sized
Material Composite
Conductor Size 12-10 AWG
Cord Type Portable
Applications Extra Heavy Duty Industrial Application
Mounting Type Surface
Height 1.97 in
Weight 0.15 lb
Wire Size 16 AWG-8 AWG
Wattage 5,000 Watt
Family Brand Name Hubbell Wiring Devic
Grounding No
Tc Connection Terminal Screws
Current 20 A
Environmental Conditions Indoor Dry Unless Pr
Number of Poles 2 Pole
Number of Wires 2
Sub Brand Twist-Lock, Insulgr
Standard CSA C22.2 No.43,Fed.
