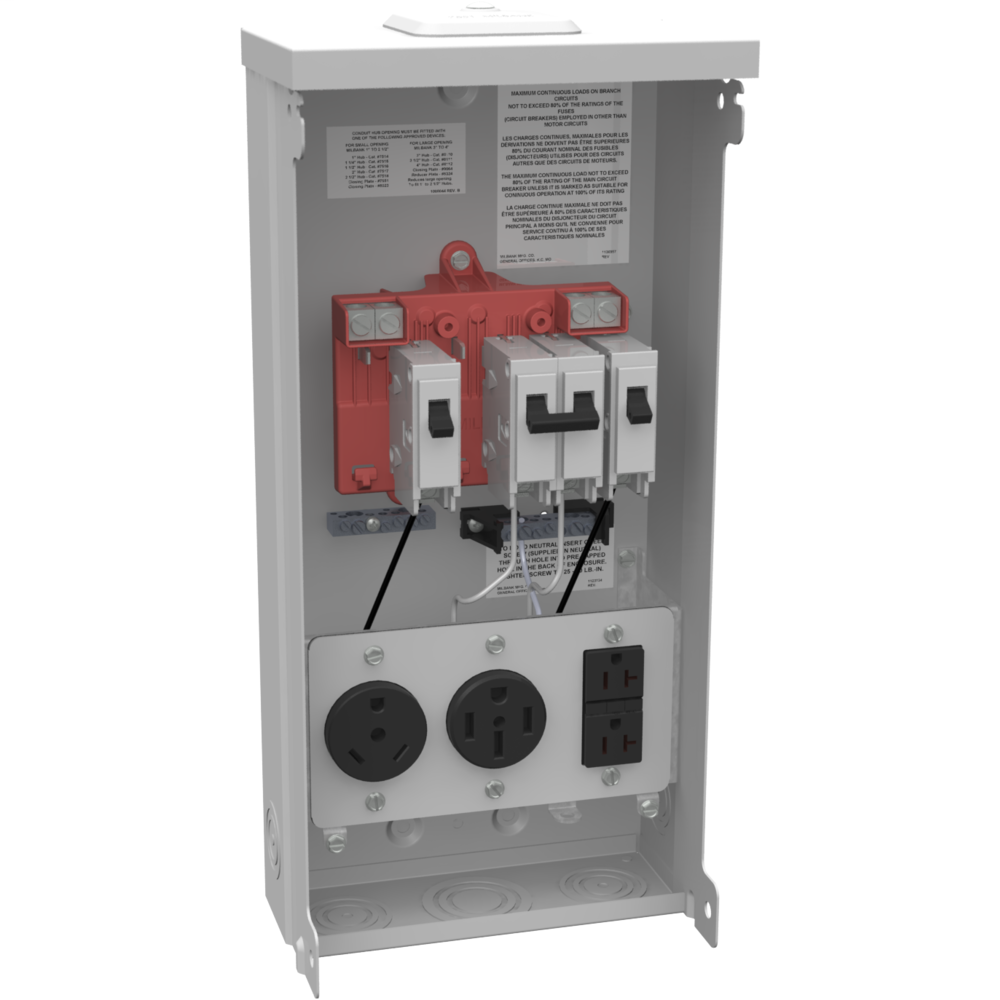

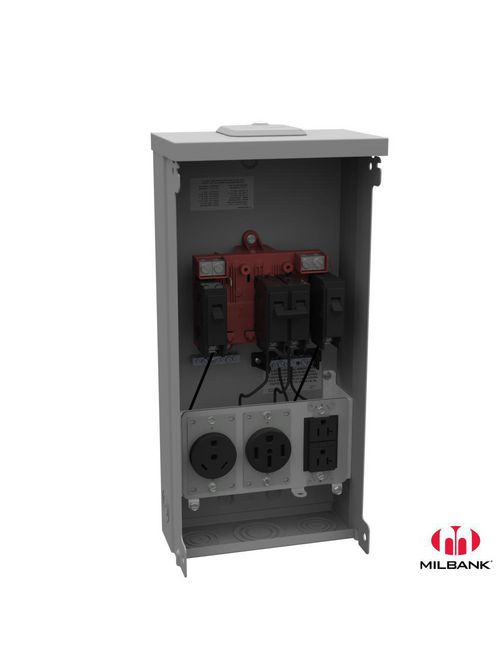

Milbank U5000-XL-75 120/240 VAC 125 Amp NEMA 3R 16 Gauge ASA 61 Gray Polyester Powder Coated Surface Mount Power Outlet
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$333.46/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer MILBANK
Mfg Catalog # U5000-XL-75
Codale Part # 474740

Specifications

  • Brand Name: Milbank
  • Type: Unmetered Power Supply
  • Special Features: Single Pole 20 Ampere Breaker and Single Pole 30 Ampere Breaker and Double Pole 50 Ampere Breaker
  • Application: RV Power
  • Standard: UL Listed;Type 3R
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Amperage Rating: 125 Continuous Ampere
  • Phase: 1 Phase
  • Frequency Rating: 60 Hertz
  • Size: 5.188L x 8.875W x19.25H
  • Number of Main Breakers: 3
  • Main Breaker Size: One Single Pole 20 Ampere Breaker and One Single Pole 30 Ampere Breaker and One Double Pole 50 Ampere Breaker
  • Cable Entry: Overhead or Underground
  • Terminal: Lay in
  • Insulation: Glass Polyester
  • Mounting: Surface Mount
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 4 Terminal
  • Bypass Provision: No Bypass
  • Number of Meter Positions: Single Power Head
  • Equipment Ground: Ground Bar
  • Hub/Closing Plate: Small Closing Plate
  • Line Side Wire Range: 14 - 2/0 AWG
  • Number Branch Circuits: 2
  • Number of Receptacles: 3
  • Receptacle Configuration: One NEMA 14-50 and One NEMA TT30 and One NEMA 5-20 Ground Fault
  • Height: 19.25 IN
  • Length: 5.188 IN
  • Width: 8.875 IN
  • UNSPSC Number: 39121102
  • Product Family Code: POUM
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.

Overview

UPC 78457225878
Codale Part No. 474740
UNSPSC 39121102
Product Long Description UNMTR SML CLS PLT TT30 1450 520GR SURF MNT
Type Unmetered Power Supply
Brand Name Milbank
Application RV Power
Material G90 Galvanized Steel with Powder Coat Finish
Size 5.188L x 8.875W x19.25H
Voltage Rating Up to 240 Volts Alternating Current
Mounting Surface Mount
Length 5.188 IN
Amperage Rating 125 Continuous Ampere
Width 8.875 IN
Height 19.25 IN
Phase 1 Phase
Insulation Material Glass Polyester
Cable Entry Overhead or Underground
Item Long Description UNMTR SML CLS PLT TT30 1450 520GR SURF MNT
Length 5.188 in
Width 8.875 in
Size 5.188L x 8.875W x 19.25H
Voltage 240 Volt
Type Unmetered Power Supply
Insulation Type Glass Polyester
Material G90 Galvanized Steel With Powder Coat Finish
Terminal Type Lay In
Applications RV Power
Mounting Type Surface Mount
Height 19.25 in
Cable Size 14 To 2-0 AWG
Standard Type 3R,UL Listed
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 1 Phase
Number of Terminations 4
Amperage 125 Amp
Hub Style Small Closing Plate
Cable Entry Overhead Or Underground
Enclosure G90 Galvanized Steel with Powder Coat Finish
