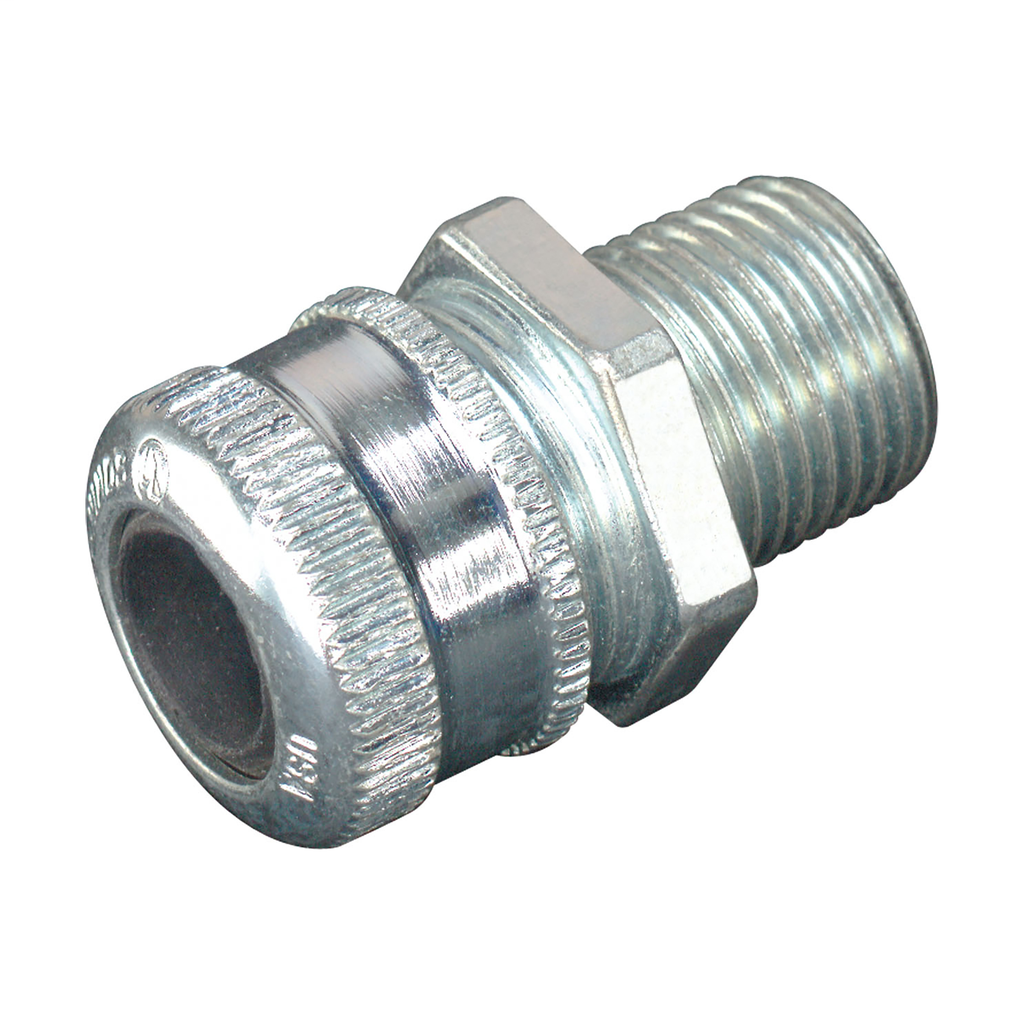

CROUSE-H CGB499 1-1/4-IN 1.00-1.188 WT CORD CONNECTOR

UPC	78227413520
Product Description	1 1/4 IN NPT MALE CORD CONNECTOR
Catalog Description	1 1/4 NPT MALE CORD/CABLE FITTING NEOPRENE BUSH
Codale Part No.	13073
Length	3.001 IN
Width	2.25 IN
Height	2.25 IN
Cable Type	Non-armoured and tray cable
Weight	1.14 LB
Thread Type	NPT
Thread Size	1-1/4"
Product Short Description	Eaton's Crouse-Hinds series CGB Cable Gland
Item Long Description	Eaton Crouse-Hinds series CGB cable gland, Cable range min/max: 1.000-1.188", Non-armoured and tray cable, Non-armoured, Steel, General purpose, 1-1/4" NPT
MDM Pkg GTiN	00782274135205
Length	3.14 in
Finish	Zink Chromate
Width	2.25 in
Size	1-1/4 In
Type	Straight
Material	Steel
Applications	Non-Armored and Tray Cable, General Purpose
Height	2.25 in
Weight	1.14 lb
Standard	UL (CANADA AND US),C
Connection Type	Male NPT
Temperature Rating	-25 to 40 C
Family Brand Name	Crouse-Hinds Series
Tc Connection	Male NPT
Enclosure	Class I Div 2
