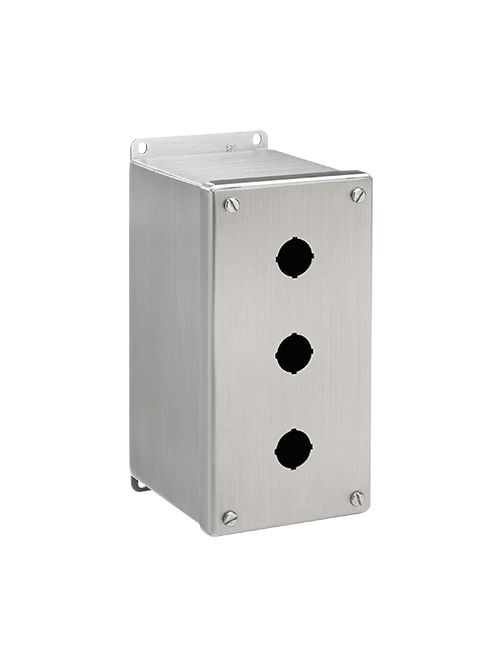

Hoffman E1PBXSS 4 x 4 x 4.75 Inch 304 Stainless Steel NEMA 4X Push Button Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$333.99/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer nVent Hoffman
Mfg Catalog # E1PBXSS
Codale Part # 106610

Features

  • Extra-deep design accommodates additional contact blocks for pushbuttons.
  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Bonding provision on door; grounding nut on body
  • 4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
  • Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
  • Oil-resistant gasket

Specifications

  • Height (H) (inch): 4
  • Height (H) (millimetre): 102
  • Width (W) (inch): 4
  • Width (W) (millimetre): 102
  • Depth (D) (inch): 4.75
  • Depth (D) (millimetre): 121
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 304
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Hole Quantity: 1
  • Overall Dimensions (L x W) (inch): 5.00 x 4.22
  • Overall Dimensions (L x W) (millimetre): 127 x 107
  • Mounting (G x H) (inch): 4.50 x 3.12
  • Mounting (G x H) (millimetre): 114 x 79
  • Stainless Steel Type: 304
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP66
  • Color: Unpainted
  • Finish: Brushed #4
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.52
  • Number of Holes: 1
  • Size: 1PB x 30.5mm

Overview

DISK UNSPSC 39121326
Codale Part No. 106610
Product Long Description Designed to house 30.5-mm oil-tight pushbuttons, switches and pilot lights. Enclosures provide protection against dirt, dust, oil and water. Extra-deep design accommodates additional contact blocks for pushbuttons. See Mild Steel chapter for related mild steel enclosures.
Industry Standards "UL 508A Listed; Type 4, 4X, 12; File Number E61997
Application cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12; File Number E61997
Color NEMA/EEMAC Type 4X, 12, 13
Voltage Rating CSA File Number 42186: Type 4, 4X, 12
Length IEC 60529, IP66"
Actuator Type 16
Product UPC 78351059350
Width 102 mm
Size 1PB x 30.5mm
Color Stainless Steel
Type 1 Hole
Material Stainless Steel
Number of Holes 1 Hole
Applications Provide Protection Against Dirt, Dust, Oil and Water
Depth 121 mm
Height 102 mm
Standard 12,13,4X,CSA File Number 42186: Type 4,CUL Listed Per CSA C22.2 No 94,File Number E61997,IEC 60529,IP66,NEMA/EEMAC Type 4X,Type 4,UL 508A Listed
Family Brand Name Hoffman
Gauge 14
Cover Type Screw
Used With 30.5 mm Oil-Tight Pushbuttons, Switches and Pilot Lights
Sub Brand Hoffman
Finish Brushed
Thickness 1.52 mm
