CHANCE GEP6 DEAD END T POLE EYE PLATE
$19.77/ea
In Stock | 103 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell Power Systems
Mfg Catalog # GEP6
Codale Part # 1395725
CHANCE GEP6 DEAD END T POLE EYE PLATE

Overview

UPC 09635903658
Codale Part No. 1395725

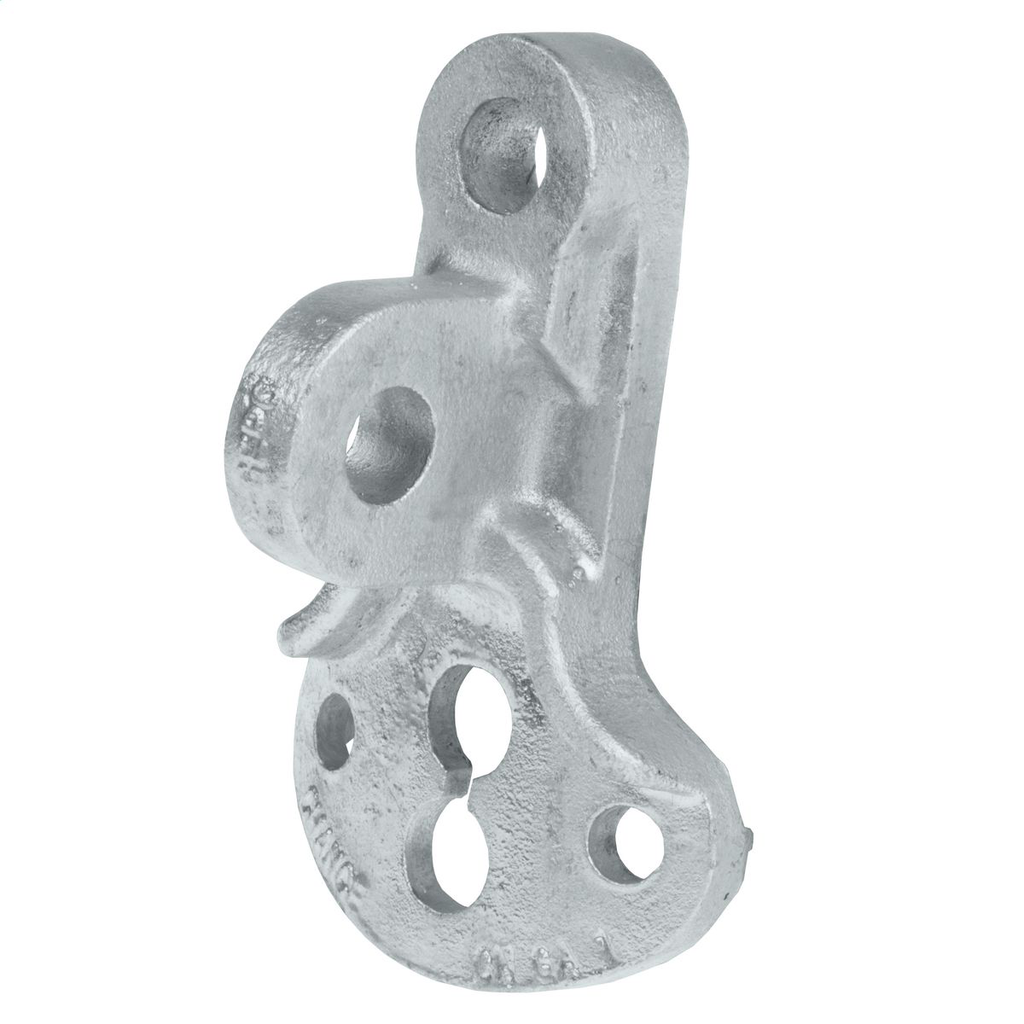

Product Long Description Cast ductile iron pole eye plate for attaching to fiberglass guy strains or clevis fittings is rated for 20,000 lbs. at 45 and 90 degrees. Has 13/16" clevis hole and 13/16" upper and lower mounting holes as well as two 9/16" lag holes in the wide base. Common industry slang is Monkey Face.
Material Ductile Iron, ASTM A-536
Weight 2.73 lb
Product Short Description POLE EYE PLATE GUY ATTACHMENT, 21,000lbs RATED STRENGTH, 13/16in CLEVIS PIN HOLE, MOUNTS with THREE 3/4in BOLTS
Family Brand Name US Unclassified
