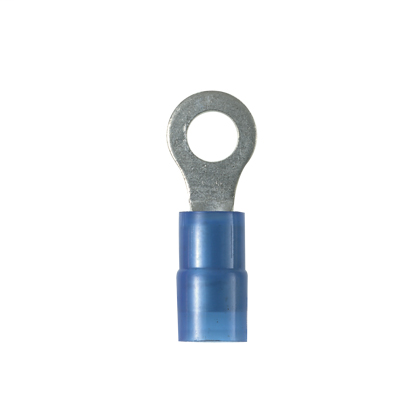

PANDUIT PN14-10R-C NYLON RING TERMINAL
$80.99/c (100 ea)
Usually ships within 8 to 12 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PN14-10R-C
Codale Part # 115022
PANDUIT PN14-10R-C NYLON RING TERMINAL

Overview

UPC 07498380020
Product Description RING TERMINAL, NYLON INSULATED, 18 - 14AWG
Catalog Description Ring Terminal, 18 14 AWG, #10 stud size, nylon insulated, standard package.
Codale Part No. 115022
Product Long Description Ring tongue design assures a secure connection in high vibration applications. Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL 94V-2/HB, maximum insulation temperature 221 degrees Fahrenheit (105 degrees Celsius). UL and CSA rated up to 600 Volts per UL 486A/B. Standard Package.
Sub Brand Pan-Term
For Use With CP-861, CP-862, CP-871
Barrel Type Insulation Grip Sleeve
Color Code Blue
Flammability Rating UL 94 V-2/UL 94 HB
Packaging Type Bottle
Product Short Description Ring Terminal, 18 14 AWG, #10 stud size, nylon insulated, standard package.
MDM Item Long Description Ring tongue design a
MDM Pkg GTiN 00074983800209
Finish Tin-Plated
Width 0.31 in
Size NA
Color Blue
Type Loose Piece Ring Terminal
Barrel Type Insulation Grip Slee
Material Copper
Country of Origin MX
Wire Size 1.0 - 2.5 mm
Temperature Rating 221 F
Pkg Qty 100
Family Brand Name Panduit
Tc Connection Standard
Max Operating Temperature 221 degrees F
Overall Length 0.85 in
Barrel Length 0.43 in
Color Coding Blue
Enclosure Ring shape
Sub Brand Pan-Term
