PANDUIT CLT100F-C20 LOOM TUBING SLIT

Manufacturer	Panduit
Mfg Catalog #	CLT100F-C20
Codale Part #	117817

Overview

UPC	07498328715
Product Description	CORR. LOOM TUBING SLIT, 1 IN X 100 FT

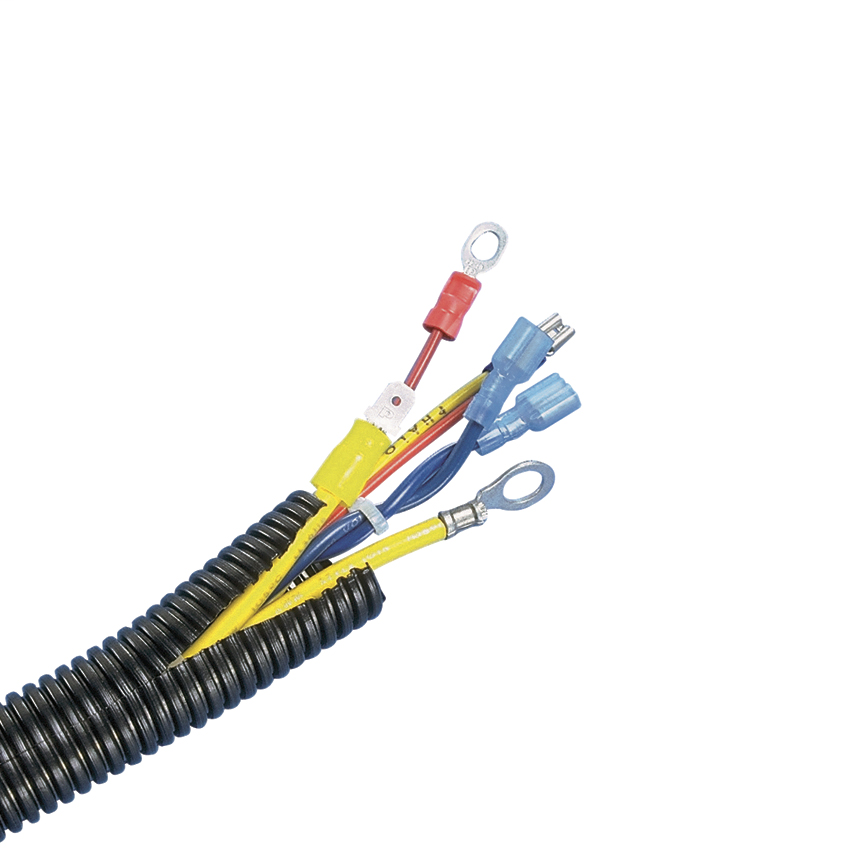

Catalog Description	The corrugated loom tubing slit wall measures 1" (25.4mm) x 100' (30.5m). It is black and made of polyethylene.
Codale Part No.	117817
Product Long Description	Corrugated Loom Tubing Slit, 1 Inch (25.4 mm) x 100 Feet (30.5 Meters), Black. Material is Polyethylene. Temperature Range is -40 degrees Fahrenheit to 122 degrees Fahrenheit (-40 degrees Celsius to 50 degrees Celsius). Offered for applications where Spiral Wrap or Braided Expandable Sleeving may be difficult to install or they do not offer the amount of protection required. Protects and reduces the risk of damage to wiring. Resistant to crush, impact and abrasion. Slit wall design eases installation. Can be held in place using Panduit push mount cable ties or mounts. Applications include control panel wiring and cable harness management.
Application	Provides Protection for Cables, Crush Impact and Abrasion Resistant, Hold in Place with Push Type Cable Ties Adhesive or Push Type Mounts.
Material	Polyethylene
Color	Black
Flammability Rating	UL94-HB
Product Short Description	The corrugated loom tubing slit wall measures 1" (25.4mm) x 100' (30.5m). It is black and made of polyethylene.
Item Long Description	Corrugated Loom Tubing Slit, 1 Inch (25.4 mm) x 100 Feet (30.5 Meters), Black. Material is Polyethylene. Temperature Range is -40 degrees Fahrenheit to 122 degrees Fahrenheit (-40 degrees Celsius to 50 degrees Celsius). Offered for applications where Spiral Wrap or Braided Expandable Sleeving may be difficult to install or they do not offer the amount of protection required. Protects and reduces the risk of damage to wiring. Resistant to crush, impact and abrasion. Slit wall design eases installation. Can be held in place using Panduit push mount cable ties or mounts. Applications include control panel wiring and cable harness management.
MDM Pkg GTiN	00074983287154
Length	30.5 m
Color	Black
Type	Corrugated Loom Tubing
Material	Polyethylene
Applications	For Indoor use
Country of Origin	US
Temperature Rating	-40 to 122 F
Pkg Qty	1
Family Brand Name	Panduit
Outside Diameter	27.7 mm
Max Operating Temperature	122 degrees F
Inside Diameter	23.2 mm
Min Operating Temperature	-40 degrees F
