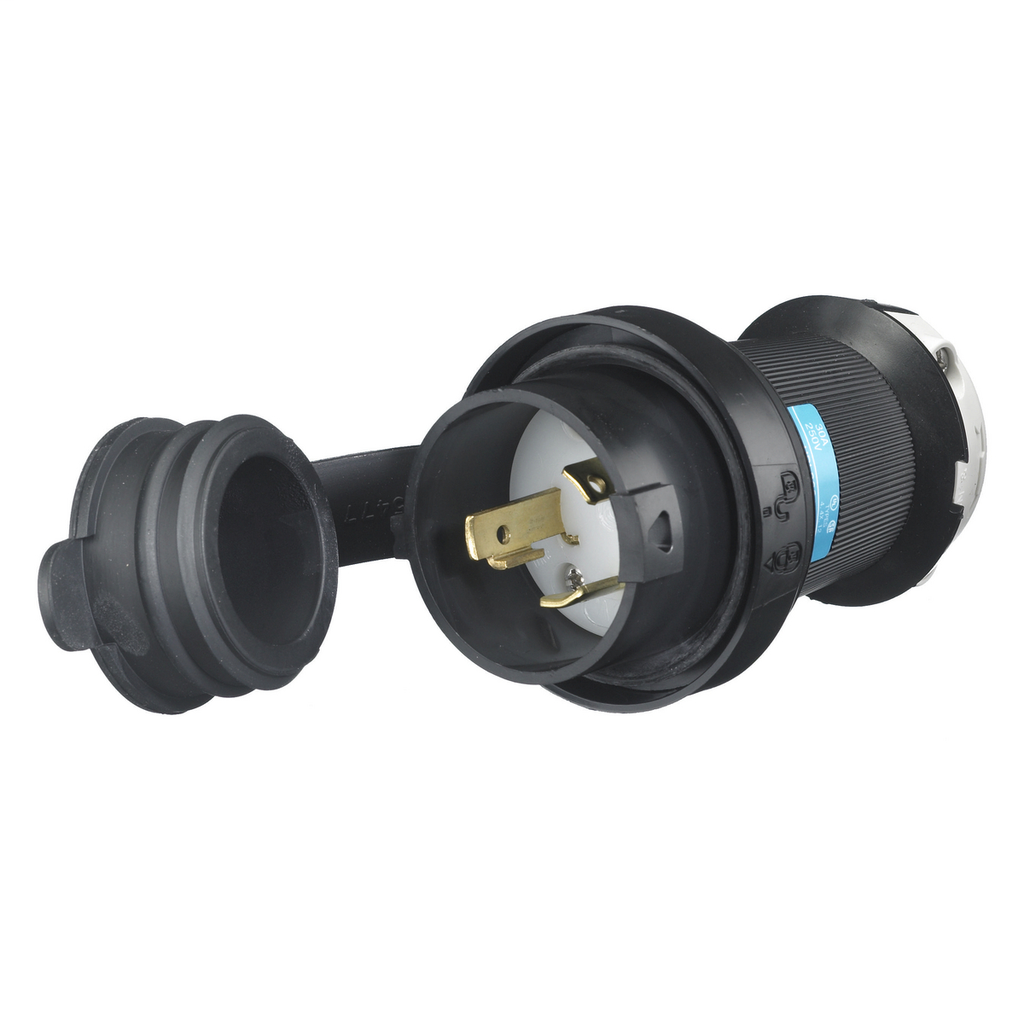

HUBBELL HBL2621SW 30AMP 250V 2P3W NEMAL6-30 TWIST LOCK PLUG W/ SAFETY SHROUD

Manufacturer	Hubbell Wiring Device-Kellems
Mfg Catalog #	HBL2621SW
Codale Part #	104689

Overview

UPC	78358523168
Catalog Description	LKG WT S/SHRD PLUG, 30A 250V, L6-30P
Codale Part No.	104689
Product Long Description	Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Male Plug, 30A 250V AC, 2-Pole 3-Wire Grounding, NEMA L6-30P, Screw Terminal, Black PBT housing, White PBT clamps.
Type	Plugs
Application	Extra Heavy Duty Industrial
Material	Composite
Color	Black, White
Voltage Rating	250 V
Length	2.77 in
Amperage Rating	30 A
Width	2.77 in
Number of Poles	2-Pole
Wire Size	#16 AWG to #8 AWG
Height	4.40 in
Phase	Single Phase
Wattage	7500 W
NEMA Rating	L6-30P
Operating Temperature	Maximum continuous 75°C and minimum -40°C without Impact
Number of Wires / Conductors	3-Wire
Enviromental Conditions	Watertight
Weight	0.60 lb
Cord Type	All Listed Portables
Current Rating	30 A
Dielectric Strength	Withstands 2,000V minimum
UNSPSC	39121403
Product Short Description	Locking Devices, Twist-Lock®, Watertight Safety Shroud, Male Plug, 30A 250V, 2-Pole 3-Wire Grounding, L6-30P, Screw Terminal, Black and White
Size	2.77 in x 2.77 in x 4.40 in
Item Long Description	Locking Devices, Twist-Lock, Watertight Safety-Shroud, Male Plug, 30A 250V AC, 2-Pole 3-Wire Grounding, NEMA L6-30P, Screw Terminal, Black PBT housing, White PBT clamps.
MDM Pkg GTiN	00783585231686
Length	2.77 in
Width	2.77 in
Size	2.77 in x 2.77 in x 4.40 in
Color	Black,White
Voltage	250 Volt
Type	Standard, Shrouded
Material	PBT
Conductor Size	16-8 AWG
Cord Type	Portable
Applications	For Extra Heavy Duty Industrial Applications
Mounting Type	Surface, Cord
Height	3.668 in
Weight	0.60 lb
Wire Size	16 AWG-8 AWG
Wattage	7500 Watt
Temperature Rating	-40 to 75 C Continu
Family Brand Name	Hubbell Wiring Devic
Grounding	Yes
Tc Connection	Terminal Screws
Dielectric Strength	2000 V
Current	30 A
Blade Dimensions	4.4 in H
Cord Size	0.325 - 0.93 in
Environmental Conditions	Watertight, UL 94 Re
Number of Poles	2 Pole
Number of Wires	3
Sub Brand	Twist-Lock, Waterti
