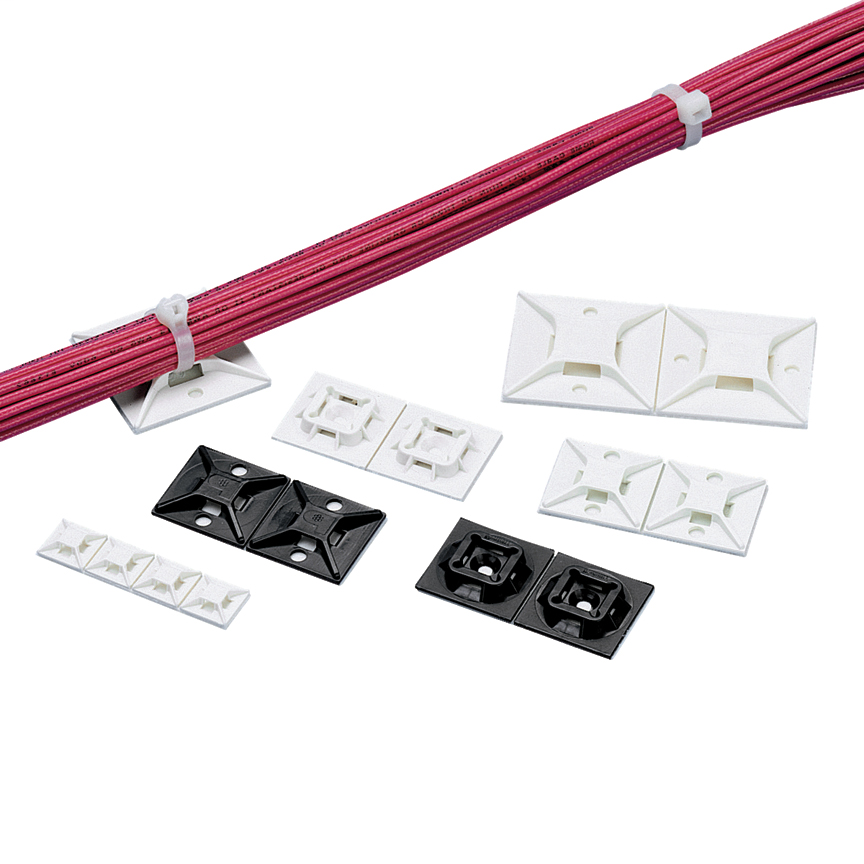

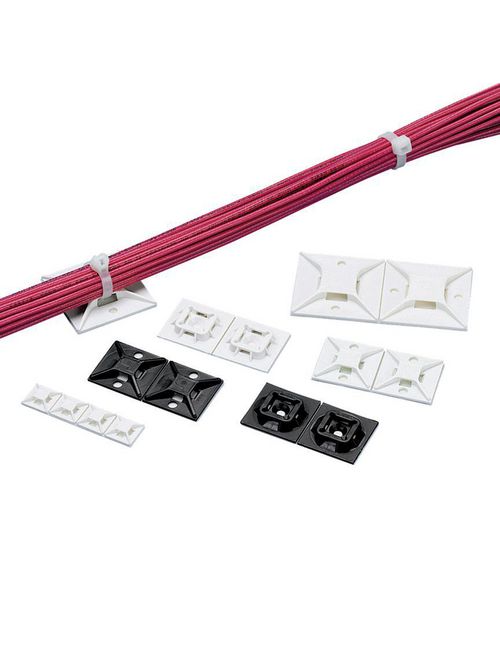

Panduit ABM3H-A-L 1.5 x 1.5 Inch (38.1 x 38.1 mm) Adhesive Cable Tie Mount
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$146.99/c (100 ea)
Usually ships within 8 to 12 Days
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # ABM3H-A-L
Codale Part # 49581

Specifications

  • Product Segment: IEI
  • Product Type: Cable Tie Mount
  • Application: Used with Miniature, Intermediate, and Standard Cables Ties
  • Color: White
  • Environment: Indoor
  • Material: Nylon 6.6
  • Maximum Compatible Panel Thickness (mm): 1
  • Maximum Compatible Panel Thickness (In.): 0.04
  • Maximum Operating Temperature (°F): 120.2
  • Maximum Operating Temperature (°C): 49
  • Minimum Operating Temperature (°C): -29
  • Minimum Operating Temperature (°F): -20.2
  • Mount Method: Rubber Adhesive Tape
  • Mounting Hole Thread Size: #6
  • Overall Height (In.): 0.29
  • Overall Height (mm): 7.4
  • Overall Length (mm): 38.1
  • Overall Length (In.): 1.5
  • Overall Width (In.): 1.5
  • Overall Width (mm): 38.1
  • Standards Met: CE Compliant, UL Recognized: E136577, RoHS Compliant
  • Static Load Capacity (kg): 0.5
  • Static Load Capacity (lb): 1.13

Packaging Details

  • UPC: 07498358472
  • GTIN Package: 00074983584727
  • Standard Package Volume Ft3: 0.0334
  • Standard Package Weight Pounds: 0.3650
  • Std Package Height In: 1.95
  • Std Package Height MM: 49.53
  • Std Package Length In: 10.1
  • Std Package Length MM: 256.54
  • Std Package Width In: 5.95
  • Std Package Width MM: 151.13
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • GTIN Carton: 50074983584722
  • Standard Carton Volume Ft3: 0.0334
  • Standard Carton Weight Pounds: 3.6500
  • Std Carton Height In: 7.05
  • Std Carton Height MM: 179.07
  • Std Carton Length In: 11
  • Std Carton Length MM: 256.54
  • Std Carton Width In: 9
  • Std Carton Width MM: 228.6
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983584727
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 500

Overview

UPC 07498358472
Codale Part No. 49581
Product Long Description Cable Tie Mount, Adhesive, 1.5 Inches x 1.5 Inches (38.1 mm x 38.1 mm). Superior adhesive for long term reliability. 2-up mount configuration speeds liner removal and installation. Four-way cable tie entry for easy orientation of wires and cables. Adhesive backing allows routing of wires and cables where mounting holes cannot be drilled. Use with Panduit cable ties for a complete wire routing solution. Material is Nylon 6.6. Use with Miniature through Heavy Panduit Cable Ties. Color is White.
Application Used with Miniature, Intermediate, and Standard Cables Ties
Material Nylon 6.6
Color White
Item Long Description Panduits ABM3H-A-L 4-way rubber-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Nylon 6.6 and can be used with miniature, intermediate, standard, light-heavy, heavy, and hook and loop mount cable ties. These mounts are designed for indoor environments. They are 1.5" x 1.5" (38.1mm x 38.1mm), supplied in strips of 2, are white in color and come in packages of 50.
MDM Pkg GTiN 00074983584727
Width 1.5 in
Color White
Type Cable Tie Mount
Material Nylon
Height 0.29 in
Country of Origin US
Screw Size #6 (M3)
Pkg Qty 50
Family Brand Name Panduit
Max Operating Temperature 120.2 degrees F
Overall Length 1.5 in
Min Operating Temperature -20.2 degrees F
Sub Brand Cable Tie Mount
MDM DDS PROP65 WARNING No
Mounting Type Rubber Adhesive Tape
