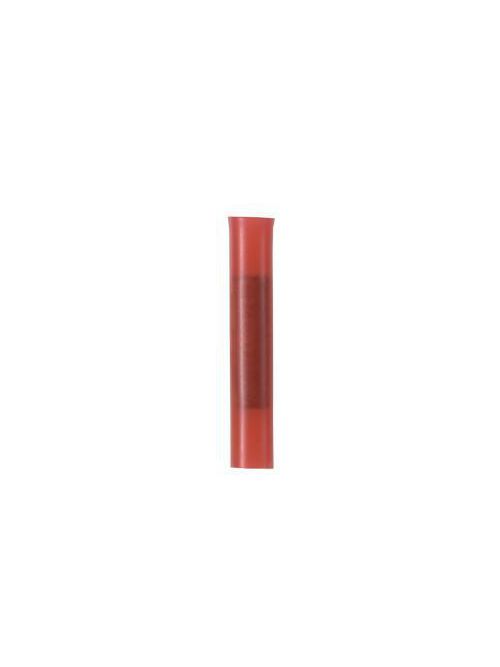

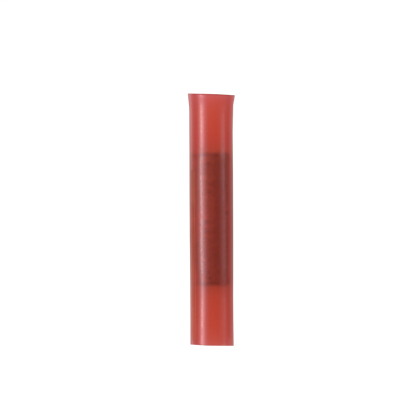

Butt Splice 22 18 AWG, nylon insulated, standard package.
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$72.99/c (100 ea)
Usually ships within 8 to 12 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # BSN18-C
Codale Part # 49518
Butt Splice 22 18 AWG, nylon insulated, standard package.

Overview

UPC 07498383000
Product Description BUTT SPLICE, NYLON INSULATED, 22 - 18 AW
Catalog Description Butt Splice 22 18 AWG, nylon insulated, standard package.
Codale Part No. 49518
Product Long Description Designed to splice two solid or stranded wires together to repair or lengthen wires. Butted configuration provides low profile for limited space applications. Brazed seam protects terminal barrel from splitting during the crimp process. Internal wire stop assures proper length of insertion into terminal barrel. UL Flammability UL 94V-2/HB, maximum insulation temperature 221 Degrees Fahrenheit (105 Degrees Celsius). UL and CSA rated up to 600 Volts per UL 486C.
Sub Brand Pan-Term
Barrel Type Brazed Seam
Color Code Red
Product Short Description Butt Splice 22 18 AWG, nylon insulated, standard package.
Item Long Description Designed to splice two solid or stranded wires together to repair or lengthen wires. Butted configuration provides low profile for limited space applications. Brazed seam protects terminal barrel from splitting during the crimp process. Internal wire stop assures proper length of insertion into terminal barrel. UL Flammability UL 94V-2/HB, maximum insulation temperature 221 Degrees Fahrenheit (105 Degrees Celsius). UL and CSA rated up to 600 Volts per UL 486C.
MDM Pkg GTiN 00074983830008
Finish Tin-Plated
Width 0.2 in
Size 22 - 18
Color Red
Type Insulated
Barrel Type Long
Material Copper
Country of Origin MX
Temperature Rating 221 F
Pkg Qty 100
Family Brand Name Panduit
Tc Connection Standard
Overall Length 1.15 in
Barrel Length 1.15 in
Color Coding Red
Sub Brand Pan-Term
MDM DDS PROP65 WARNING No
Voltage 600 Volt
Conductor Size 22-18 AWG
Contact Material Copper
