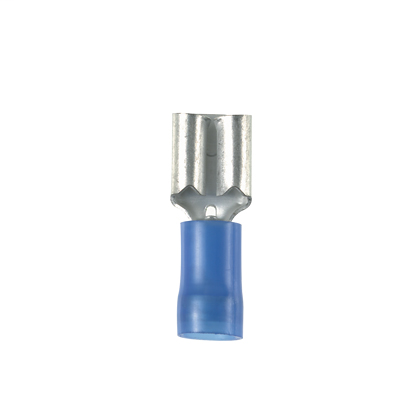

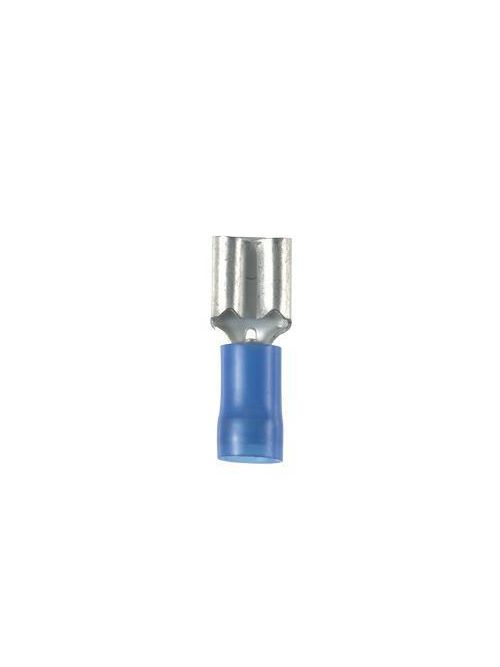

Panduit DNF14-250-C Nylon Barrel Insulated Female Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$80.99/c (100 ea)
Usually ships within 8 to 12 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # DNF14-250-C
Codale Part # 49746

Specifications

  • Product Segment: IEI
  • Disconnect Type: Female Disconnect
  • Insulation Material: Nylon
  • Insulation Type: Barrel Insulated
  • Maximum Wire Size (AWG): #14
  • Minimum Wire Size (AWG): #16
  • Wire Strip Length (mm): 7.1
  • Wire Strip Length (In.): 9/32
  • Tab Size (In.): 0.250 x 0.032
  • Tab Size (mm): 6.3 x 0.8
  • Standards Met: UL 310, CSA 22.2 No.153
  • Maximum Voltage (V): 300
  • Base Material: Brass
  • Finish/Coating: Tin-Plated
  • Color Code: Blue
  • Barrel Type: Funnel
  • Flammability Rating: UL94-HB
  • Maximum Operating Temperature (°F): 194
  • Maximum Operating Temperature (°C): 90
  • Sub Brand: Pan-Term®
  • Minimum Metric Conductor Size (mm²): 1.5
  • Maximum Metric Conductor Size (mm²): 2.5
  • Maximum Wire Insulation Diameter (In.): 0.16
  • Maximum Wire Insulation Diameter (mm): 4.1
  • Overall Height (mm): 3.1
  • Overall Height (In.): 0.12
  • Overall Length (mm): 21.1
  • Overall Length (In.): 0.83
  • Overall Width (mm): 7.4
  • Overall Width (In.): 0.29
  • Tongue Angle: Straight
  • Packaging Type: Bottle
  • Product Type: Loose Piece Disconnect
  • For Use With: CT-1550, CT-1551, CT-2500/L (CT-2550CH)
  • Maximum Voltage (kV): 0.3

Packaging Details

  • UPC: 07498382719
  • GTIN Package: 00074983827190
  • Standard Package Volume Ft3: 0.0099
  • Standard Package Weight Pounds: 0.3500
  • Std Package Height In: 1.9
  • Std Package Height MM: 48.26
  • Std Package Length In: 4.35
  • Std Package Length MM: 110.49
  • Std Package Width In: 1.9
  • Std Package Width MM: 48.26
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983827195
  • Standard Carton Volume Ft3: 0.0099
  • Standard Carton Weight Pounds: 1.7500
  • Std Carton Height In: 4.4
  • Std Carton Height MM: 111.76
  • Std Carton Length In: 9.9
  • Std Carton Length MM: 110.49
  • Std Carton Width In: 2.1
  • Std Carton Width MM: 53.34
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983827190
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 100
  • Pallet Quantity: 0
  • Pallet Volume: 0.000000
  • Pallet Weight: 0.0000

Overview

UPC 07498382719
Codale Part No. 49746
Product Long Description Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost. Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength. Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection. UL Flammability UL 94V-2/HB, maximum insulation temperature 194 Degrees Fahrenheit (90 Degrees Celsius). UL and CSA rated up to 300 Volts per UL 310.
Sub Brand Pan-Term
For Use With CT-100, CT-160, CT-260, CT-400, CT-460, CT-1550, CT-1551, CT-500
Barrel Type Insulation Grip Sleeve
Color Code Blue
Disconnect Type Female Disconnect
Flammability Rating HB
Packaging Type Bottle
Item Long Description The DNF14-250-C Pan-Term Disconnect is a female disconnect with a nylon insulated barrel and funnel entry. The internal wire stop assures proper wire insertion length for a higher quality connection. Barrel serrations assure good wire contact and maximum tensile strength. Metal insulation grip sleeve crimps to wire insulation providing protection to the crimp joint for high vibration applications.
Finish Tin Plated
Width 0.29 in
Color Blue
Type Loose-Piece
Barrel Type Grip Sleeve
Material Brass
Height 0.12 in
Country of Origin MX
Wire Size 14
Temperature Rating 194 F
Pkg Qty 100
Family Brand Name Panduit
Tc Connection Funnel Entry
Max Operating Temperature 194 degrees F
Overall Length 0.83 in
Color Coding Blue
Sub Brand Pan-Term
Voltage 300 Volt
Conductor Size 16-14 AWG
Tab Size 1/4 x 0.032 in
Insulation Material Nylon
