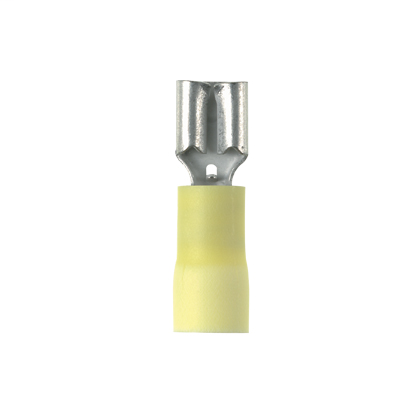

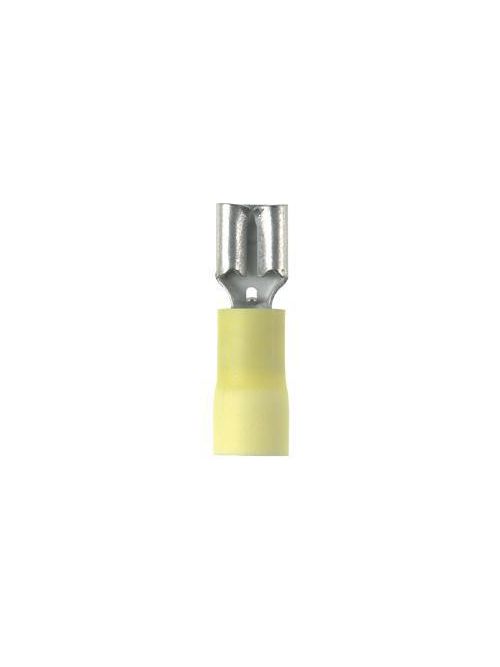

Panduit DV10-250-L Vinyl Barrel Insulated Female Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$93.99/c (100 ea)
Usually ships within 8 to 12 Days
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # DV10-250-L
Codale Part # 49745

Specifications

  • Product Segment: IEI
  • Disconnect Type: Female Disconnect
  • Insulation Type: Barrel Insulated
  • Insulation Material: Vinyl
  • Minimum Wire Size (AWG): #12
  • Maximum Wire Size (AWG): #10
  • Wire Strip Length (mm): 7.1
  • Wire Strip Length (In.): 9/32
  • Tab Size (mm): 6.3 x 0.8
  • Tab Size (In.): 0.250 x 0.032
  • Standards Met: UL 310, CSA 22.2 No.153
  • Maximum Voltage (V): 600
  • Finish/Coating: Tin-Plated
  • Base Material: Brass
  • Color Code: Yellow
  • Barrel Type: Funnel
  • Flammability Rating: UL94V-0
  • Sub Brand: Pan-Term®
  • Maximum Metric Conductor Size (mm²): 6
  • Minimum Metric Conductor Size (mm²): 4
  • Maximum Wire Insulation Diameter (mm): 5.8
  • Maximum Wire Insulation Diameter (In.): 0.23
  • Overall Height (mm): 3.3
  • Overall Height (In.): 0.13
  • Overall Length (In.): 1.03
  • Overall Length (mm): 26.16
  • Overall Width (In.): 0.3
  • Overall Width (mm): 7.62
  • Tongue Angle: Straight
  • Packaging Type: Bottle
  • Product Type: Loose Piece Disconnect
  • For Use With: CT-1550, CT-1551
  • Maximum Voltage (kV): 0.6

Packaging Details

  • UPC: 07498382104
  • GTIN Package: 00074983821044
  • Standard Package Volume Ft3: 0.0067
  • Standard Package Weight Pounds: 0.2400
  • Std Package Height In: 1.95
  • Std Package Height MM: 49.53
  • Std Package Length In: 4.35
  • Std Package Length MM: 110.49
  • Std Package Width In: 1.95
  • Std Package Width MM: 49.53
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • GTIN Carton: 50074983821049
  • Standard Carton Volume Ft3: 0.0067
  • Standard Carton Weight Pounds: 2.4000
  • Std Carton Height In: 4.35
  • Std Carton Height MM: 110.49
  • Std Carton Length In: 10
  • Std Carton Length MM: 110.49
  • Std Carton Width In: 4.3
  • Std Carton Width MM: 109.22
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983821044
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: Y
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 50

Overview

UPC 07498382104
Codale Part No. 49745
Product Long Description Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost. Internal barrel serrations assure good wire contact and maximum tensile strength. Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection. UL Flammability UL 94V-0. maximum insulation temperature 194 Degrees Fahrenheit (90 Degrees Celsius). UL and CSA rated up to 600 Volts per UL 310.
Sub Brand Pan-Term
For Use With CT-550, CT-1551, CT-1550, CT-100, CT-160, CT-260, CT-460
Barrel Type Sleeved Barrel
Color Code Yellow
Disconnect Type Female Disconnect
Flammability Rating V0
Packaging Type Bottle
Item Long Description The DV10-250-L Pan-Term Disconnect is a female disconnect with a vinyl insulated barrel and funnel entry. The internal wire stop assures proper wire insertion length for a higher quality connection. Barrel serrations assure good wire contact and maximum tensile strength.
MDM Pkg GTiN 00074983821044
Finish Tin Plated
Width 0.3 in
Color Yellow
Type Loose-Piece
Barrel Type Sleeved Barrel
Material Brass
Conductor Size 4 - 6 mm
Height 0.13 in
Country of Origin MX
Wire Size 10
Tab Size 6.3 x 0.8 mm
Temperature Rating 105 C
Pkg Qty 50
Family Brand Name Panduit
Insulation Material PVC
Tc Connection Funnel Entry
Max Operating Temperature 302 degrees F
Overall Length 1.03 in
Color Coding Yellow
Sub Brand Pan-Term
MDM DDS PROP65 WARNING No
Voltage 600 Volt
