UPC | 07498337503 |

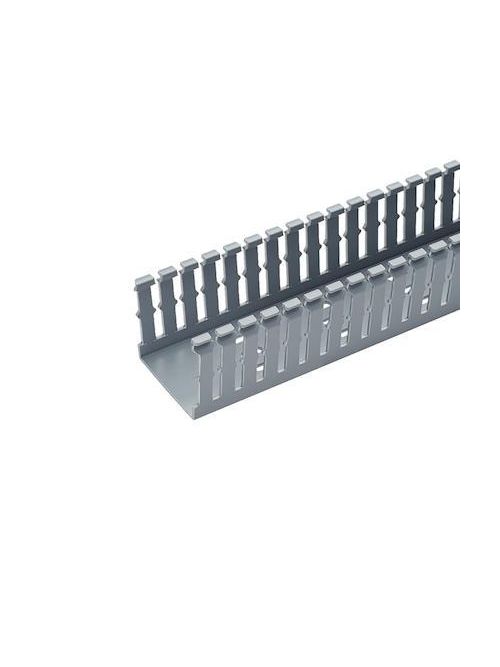

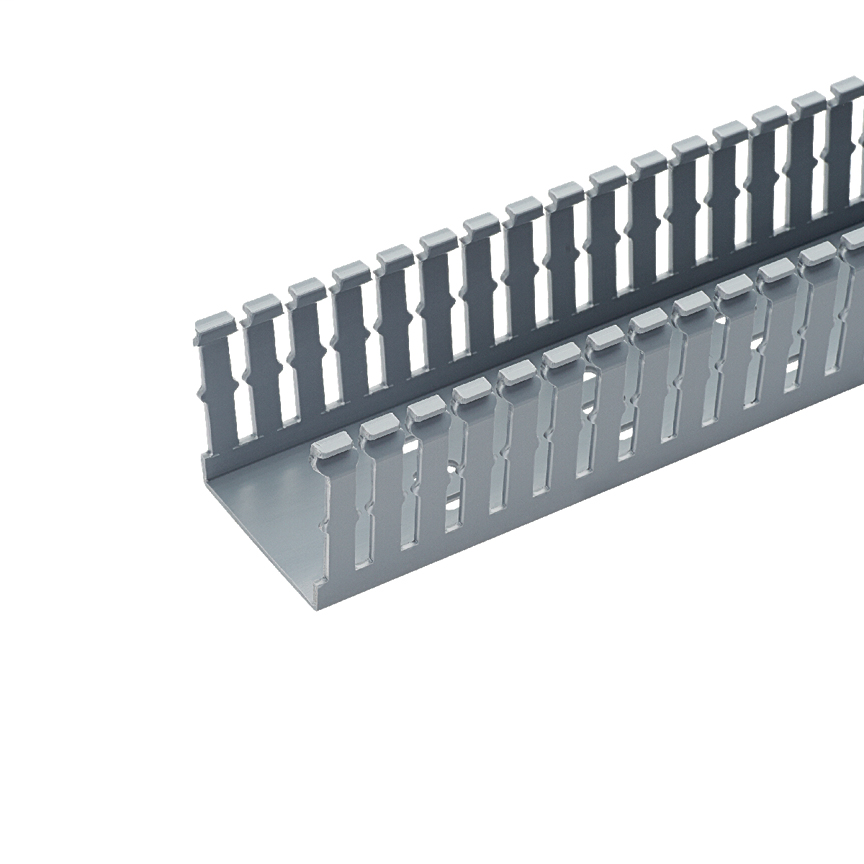

Catalog Description | Panduct type F narrow slot wiring duct, 1 W x 1 H, 6' length, PVC, light gray. |
Codale Part No. | 49557 |
Product Long Description | Slotted Duct, Polyvinyl Chloride, 1 Inch x 1 Inch x 6 Feet, Light Gray, Base and covers sold separately, Made of lead-free PVC, UL Recognized continuous use temperature 50 Degrees Celsius (122 Degrees Fahrenheit), UL94 Flammability Rating of V-0, Conforms with NFPA 79-2002 section 14.3.1 requirement for flame retardant material, Available in Light Gray and White, Provided with mounting holes. |
Sub Brand | Panduct® |
Application | (1) Type C Wiring Duct Cover with Protective Film Reduces Scrap and Labor Costs by Protecting the Surface during Storage, Handling, and Installation |
Material | Lead-Free PVC |
Color | Light Gray |
Flammability Rating | UL94 V-0 |
Product Short Description | Panduct® type F narrow slot wiring duct, 1 W x 1 H, 6' length, PVC, light gray. |
Item Long Description | Narrow Slotted Duct, PVC, 1 X 1 X 6' |
MDM Pkg GTiN | 00074983375035 |
Length | 1.8 m |
Width | 1.25 in |
Size | 32.0 x 28.7 mm |
Color | Light Gray |
Type | Base Wiring Duct |
Thickness | 0.06 IN |
Material | Lead-Free PVC |
Applications | Indoor |
Mounting Type | Mounting Holes |
Depth | 28.7 mm |
Height | 1.13 in |
Country of Origin | US |
Pkg Qty | 6 |
Family Brand Name | Panduit |
Tc Connection | Standard Mounting Ho |
Overall Length | 6 ft |
Slot Size | 5 mm |
Sub Brand | Panduct |
