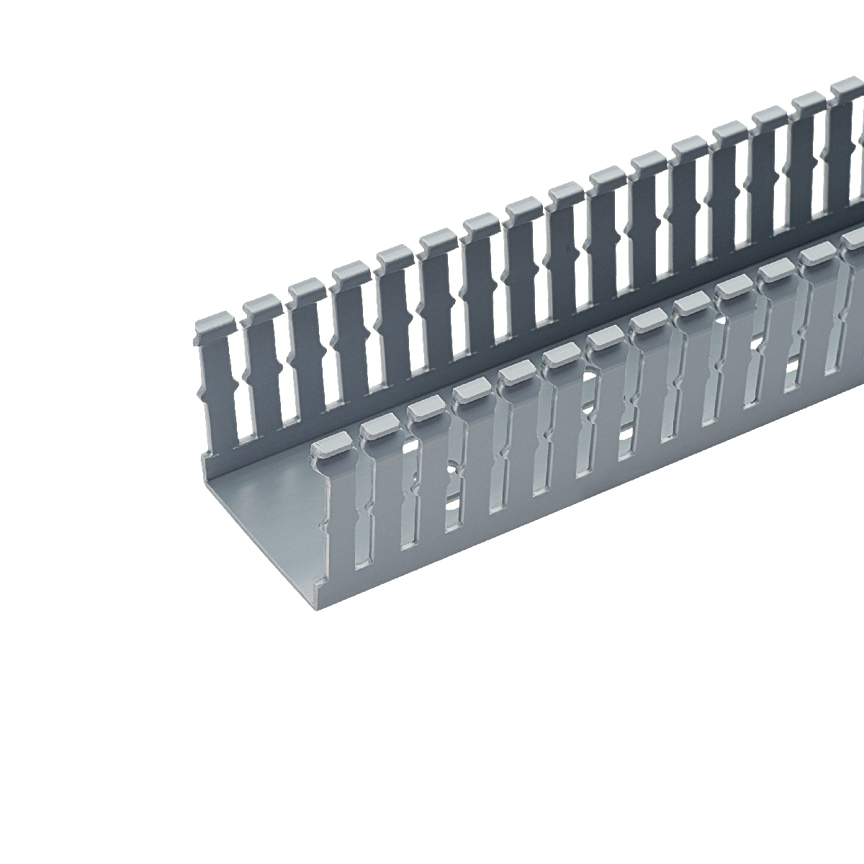

Panduit F2X2LG6 2 x 2 Inch x 6 Foot Light Gray PVC Slotted Duct
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$6.79/ft (1 ft)
ft
Adding...
Order in multiples of 6 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # F2X2LG6
Codale Part # 49567

Specifications

  • Product Segment: IEI
  • Product Type: Base Wiring Duct
  • Application: Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
  • Color: Light Gray
  • Cover Part Number: C2LG6
  • Flammability Rating: UL94V-0
  • Includes: Base Only
  • Standards Met: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
  • Material: PVC
  • Mount Method: Mounting Holes
  • Measurement System: Imperial
  • Wiring Duct Style: Narrow Slot Wiring Duct
  • Wiring Duct Type: F
  • Overall Height (mm): 53.8
  • Overall Height (In.): 2.12
  • Overall Length (ft.): 6
  • Overall Length (m): 1.8
  • Overall Width (In.): 2.25
  • Overall Width (mm): 57.2
  • Sub Brand: Panduct®
  • Slot Width (In.): 0.2
  • Slot Width (mm): 5

Packaging Details

  • UPC: 07498337553
  • GTIN Package: 00074983375530
  • Standard Package Volume Ft3: 0.1319
  • Standard Package Weight Pounds: 1.5225
  • Std Package Height In: 2
  • Std Package Height MM: 50.8
  • Std Package Length In: 72
  • Std Package Length MM: 1828.8
  • Std Package Width In: 2
  • Std Package Width MM: 50.8
  • Std. Pkg. UOM: Foot
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 6
  • GTIN Carton: 50074983375535
  • Standard Carton Volume Ft3: 0.1319
  • Standard Carton Weight Pounds: 30.4500
  • Std Carton Height In: 4.7
  • Std Carton Height MM: 119.38
  • Std Carton Length In: 72.9
  • Std Carton Length MM: 1828.8
  • Std Carton Width In: 13.3
  • Std Carton Width MM: 337.82
  • Std Ctn Qty: 120
  • Min. Order UOM: Foot
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983375530
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 6

Overview

UPC 07498337553
Codale Part No. 49567
Product Long Description Slotted Duct, Polyvinyl Chloride, 2 Inches x 2 Inches x 6 Feet, Light Gray, Base and covers sold separately, Made of lead-free PVC, UL Recognized continuous use temperature 50 Degrees Celsius (122 Degrees Fahrenheit), UL94 Flammability Rating of V-0, Conforms with NFPA 79-2002 section 14.3.1 requirement for flame retardant material, Available in Light Gray and White, Provided with mounting holes.
Sub Brand Panduct®
Application (1) Type C Wiring Duct Cover with Protective Film Reduces Scrap and Labor Costs by Protecting the Surface during Storage, Handling, and Installation
Material Lead-Free PVC
Color Light Gray
Flammability Rating UL94 V-0
Item Long Description Narrow Slotted Duct, PVC, 2 X 2 X 6'
MDM Pkg GTiN 00074983375530
Length 6 ft
Width 2 in
Size 57.2 x 53.8 mm
Color Light Gray
Type Type F
Thickness 0.08 IN
Material Lead-Free PVC
Applications For Indoor use
Mounting Type Standard Mounting Hole
Depth 2 in
Height 2.12 in
Country of Origin US
Pkg Qty 6
Family Brand Name Panduit
Tc Connection Standard Mounting Holes
Overall Length 6 ft
Slot Size 5 mm
Sub Brand Panduct
