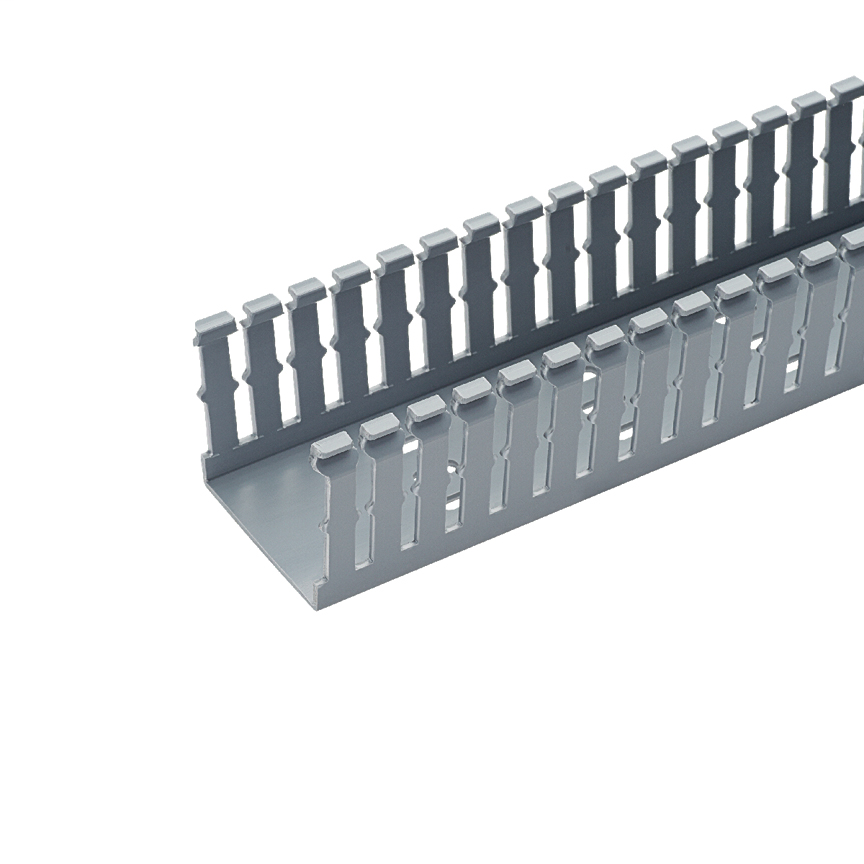

Panduct® type F narrow slot wiring duct, 4 W x 3 H, 6' length, PVC, light gray.

UPC	07498337593
Catalog Description	Panduct type F narrow slot wiring duct, 4 W x 3 H, 6' length, PVC, light gray.
Codale Part No.	49573
Product Long Description	Slotted Duct, Polyvinyl Chloride, 4 Inches x 3 Inches x 6 Feet, Light Gray, Base and covers sold separately, Made of lead-free PVC, UL Recognized continuous use temperature 50 Degrees Celsius (122 Degrees Fahrenheit), UL94 Flammability Rating of V-0, Conforms with NFPA 79-2002 section 14.3.1 requirement for flame retardant material, Available in Light Gray and White, Provided with mounting holes.
Sub Brand	Panduct®
Application	(1) Type C Wiring Duct Cover with Protective Film Reduces Scrap and Labor Costs by Protecting the Surface during Storage, Handling, and Installation
Material	Lead-Free PVC
Color	Light Gray
Flammability Rating	UL94 V-0
Product Short Description	Panduct® type F narrow slot wiring duct, 4 W x 3 H, 6' length, PVC, light gray.
MDM Item Long Description	Narrow Slotted Duct,
MDM Pkg GTiN	00074983375936
Length	1.8 m
Width	108 mm
Size	108.0 x 79.2 mm
Color	Light Gray
Type	Type F, Bottom Perforation
Thickness	0.1 IN
Material	Lead-Free PVC
Applications	For Indoor use
Height	3.12 in
Country of Origin	US
Pkg Qty	6
Family Brand Name	Panduit
Tc Connection	Standard Mounting Ho
Overall Length	6 ft
Sub Brand	Panduct
Mounting Type	Standard Hole
Depth	79.2 mm
Slot Size	5 mm Pitch
