PAN HST0.4-6-X2Y HeatShrinkThickAdh
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$8.59/ea
In Stock | 20 available at 2 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # HST0.4-6-X2Y
Codale Part # 49991

Specifications

  • UNSPSC: 39121723
  • Product Segment: IEI
  • Note: HST0.4-6-X2Y replaces HST0.4-6-X2
  • Product Type: Heat Shrink
  • Color: Red
  • Material: Highly Flame Retardant Adhesive Lined Cross-Linked Polyolefin
  • Maximum Operating Temperature (°F): 230
  • Maximum Operating Temperature (°C): 110
  • Minimum Operating Temperature (°F): -67
  • Minimum Operating Temperature (°C): -55
  • Sub Brand: Wet-Shrink
  • Nominal Recovered Wall Thickness (In.): 0.08
  • Nominal Recovered Wall Thickness (mm): 2
  • Overall Length (In.): 6
  • Overall Length (ft.): 3.96
  • Overall Length (m): 0.2
  • Overall Length (mm): 152.4
  • Shrink Ratio: 3:1
  • Shrink Temperature (°F): 248
  • Shrink Temperature (°C): 120
  • Maximum Recovered Inside Diameter (In.): 0.16
  • Maximum Recovered Inside Diameter (mm): 4.1
  • Minimum Expanded Inside Diameter (mm): 10.2
  • Minimum Expanded Inside Diameter (In.): 0.4

Packaging Details

  • UPC: 07498310718
  • GTIN Package: 00074983107186
  • Standard Package Volume Ft3: 0.0420
  • Standard Package Weight Pounds: 0.3050
  • Std Package Height In: 1.5
  • Std Package Height MM: 38.1
  • Std Package Length In: 9
  • Std Package Length MM: 228.6
  • Std Package Width In: 8
  • Std Package Width MM: 203.2
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 10
  • GTIN Carton: 50074983107181
  • Standard Carton Volume Ft3: 0.0420
  • Standard Carton Weight Pounds: 3.0500
  • Std Carton Height In: 7.162
  • Std Carton Height MM: 181.9148
  • Std Carton Length In: 11.076
  • Std Carton Length MM: 228.6
  • Std Carton Width In: 9.136
  • Std Carton Width MM: 232.0544
  • Std Ctn Qty: 100
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CA
  • RoHS Compliant: Compliant
  • EAN: 00074983107186
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 10

Overview

UPC 07498310718
Codale Part No. 49991

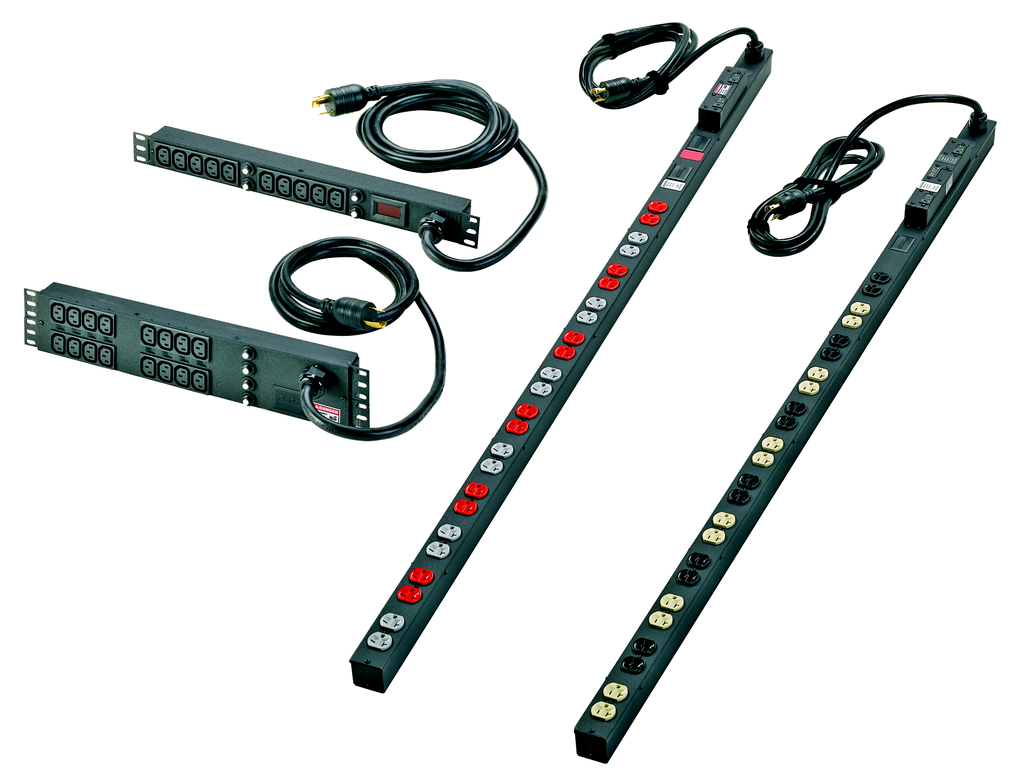

Product Long Description Basic Rack PDU Vertical power strip 30A, 120/208V, WYE, 18 IEC C-13, 6 IEC C-19 and 6 NEMA 5-20R receptacles and, three low profile 20 A double pole magnetic breaker on-off switch, 10â™ (3m) with NEMA L21-30P input cord. Dimensions: 70"H x 2.5"W x 2.36"D (1778mm x 64mm x 60mm)
Brand Name Panduit
Sub Brand Power Outlet Units
Color Black
Input Voltage 208V - Three Phase WYE
Plug Type NEMA L21-30P
Output Voltage 120-208V
Family Brand Name Panduit
Item Long Description Thick wall adhesive lined, .4" (10.2mm) diameter, 6.0" (152.4mm) length, adhesive lined red cross-linked polyolefin, 10 pc. package quantity.
MDM Pkg GTiN 00074983107186
Color Red
Type Heat Shrink
Thickness 0.08 IN
Material Highly Flame Retardant Adhesive Lined Cross-Linked Polyolefin
Shrink Ratio 3:1
Country of Origin CA
Pkg Qty 10
Outside Diameter 0.4 in
Max Operating Temperature 230 degrees F
Overall Length 3.96 ft
Inside Diameter 0.160 IN
Min Operating Temperature -67 degrees F
UNSPSC 39121723
Sub Brand Wet-Shrink
