Manufacturer | Panduit |
---|---|
Mfg Catalog # | HSTT06-48-Q |
Codale Part # | 49358 |
UPC | 07498390587 |
Product Description | HEAT SHRINK THIN, .06(1.6MM) DIA, BLACK |

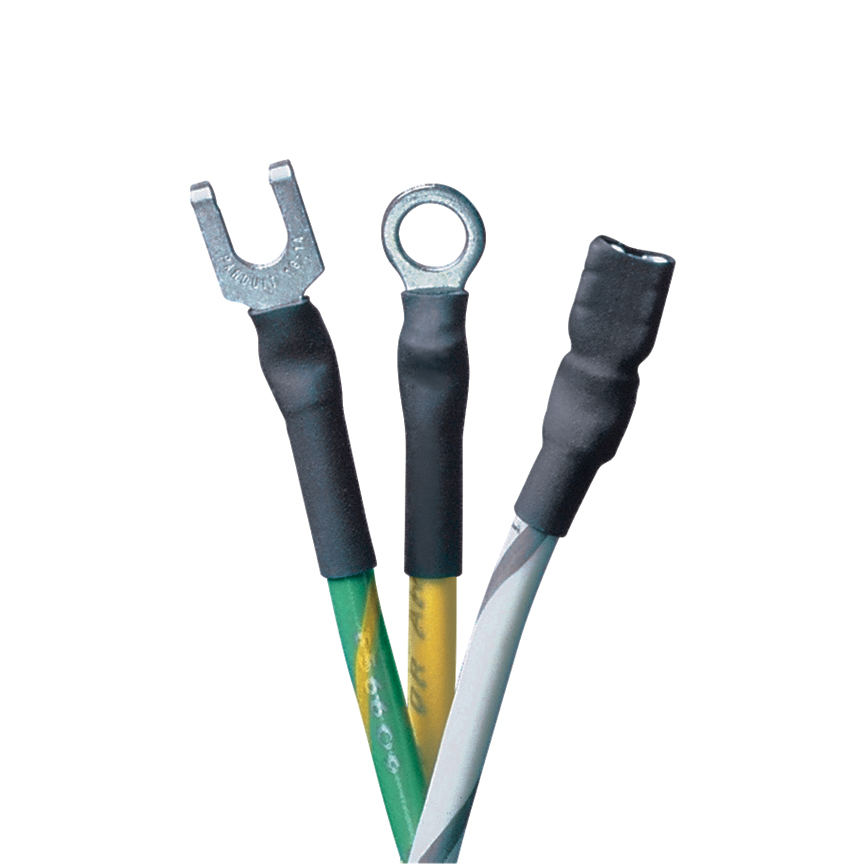

Catalog Description | Panduit Thin-wall Heat Shrink Tubing shrinks around wires, connectors, joints and terminals when heated to protect against abrasion, fire and chemicals. Cross-link Polyolefin, 0.06D x 3.94L (1.6mm x 1.2m), Black, 25pc. |
Codale Part No. | 49358 |
Product Long Description | DRY-SHRINK Thin Wall Heat Shrink, 0.063 Inch (1.6 mm) Diameter, 0.031 Inch (0.8 mm) Maximum Recovered Inside Diameter, 48 Inch Lengths, 25 pieces, Black. For use in insulating, protecting, harnessing and identifying electrical and electronic components. Shrink Ratio is 2 to 1. Temperature Range is -67 degrees Fahrenheit to 275 degrees Fahrenheit (-55 degrees Celsius to 135 degrees Celsius). Voltage is 600 Volts. UL Recognized. CSA Certified. Military Specification AMS-DTL-23053/5 Class 1 (material performance only). |
Application | For Dry Locations |
Material | Flame retardant polyolefin cross-linked except clear |
Color | Black |
Shrink Ratio | 2:1 |
Product Short Description | Panduit Thin-wall Heat Shrink Tubing shrinks around wires, connectors, joints and terminals when heated to protect against abrasion, fire and chemicals. Cross-link Polyolefin, 0.06D x 3.94L (1.6mm x 1.2m), Black, 25pc. |
Item Long Description | DRY-SHRINK Thin Wall Heat Shrink, 0.063 Inch (1.6 mm) Diameter, 0.031 Inch (0.8 mm) Maximum Recovered Inside Diameter, 48 Inch Lengths, 25 pieces, Black. For use in insulating, protecting, harnessing and identifying electrical and electronic components. Shrink Ratio is 2 to 1. Temperature Range is -67 degrees Fahrenheit to 275 degrees Fahrenheit (-55 degrees Celsius to 135 degrees Celsius). Voltage is 600 Volts. UL Recognized. CSA Certified. Military Specification AMS-DTL-23053/5 Class 1 (material performance only). |
MDM Pkg GTiN | 00074983905874 |
Color | Black |
Type | Heat Shrink |
Thickness | 0.4 mm |
Material | Flame Retardant Poly |
Shrink Ratio | 2:1 |
Applications | For Dry Locations |
Country of Origin | KR |
Pkg Qty | 25 |
Family Brand Name | Panduit |
Outside Diameter | 1.6 mm |
Overall Length | 4 ft |
Inside Diameter | 0.8 mm |
Sub Brand | Dry-Shrink |
MDM DDS PROP65 WARNING | No |
MDM PRODUCT KEYWORD | 25002, TWHS-063-48, 46-601, 50020, CPO63-0-A, HSTT06-48-TL |
UNSPSC | 39121723 |
