Panduit HSTT06-48-QC .06 Inch 1.6 mm Diameter Clear Thin Wall Heat Shrink Tubing
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2.09/pc (1 ea)
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # HSTT06-48-QC
Codale Part # 49382

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121723
  • Product Type: Heat Shrink
  • Color: Clear
  • Material: Polyolefin cross-linked
  • Nominal Diameter (mm): 1.6
  • Sub Brand: Dry-Shrink
  • Nominal Recovered Wall Thickness (mm): 0.4
  • Nominal Recovered Wall Thickness (In.): 0.017
  • Overall Length (ft.): 4
  • Overall Length (m): 1.2
  • Shrink Ratio: 2:1
  • Minimum Expanded Inside Diameter (In.): 0.063
  • Minimum Expanded Inside Diameter (mm): 1.6
  • Application: For Dry Locations

Packaging Details

  • UPC: 07498390658
  • GTIN Package: 00074983906581
  • Standard Package Volume Ft3: 0.1733
  • Standard Package Weight Pounds: 0.6150
  • Std Package Height In: 2.4
  • Std Package Height MM: 60.96
  • Std Package Length In: 49.4
  • Std Package Length MM: 1254.76
  • Std Package Width In: 2.6
  • Std Package Width MM: 66.04
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 25
  • Standard Carton Volume Ft3: 0.1733
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 1254.76
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: KR
  • RoHS Compliant: Compliant
  • EAN: 00074983906581
  • REACH Status: False
  • Buy American Compliant: N
  • ARRA Compliant: N
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 25

Overview

UPC 07498390658
Codale Part No. 49382

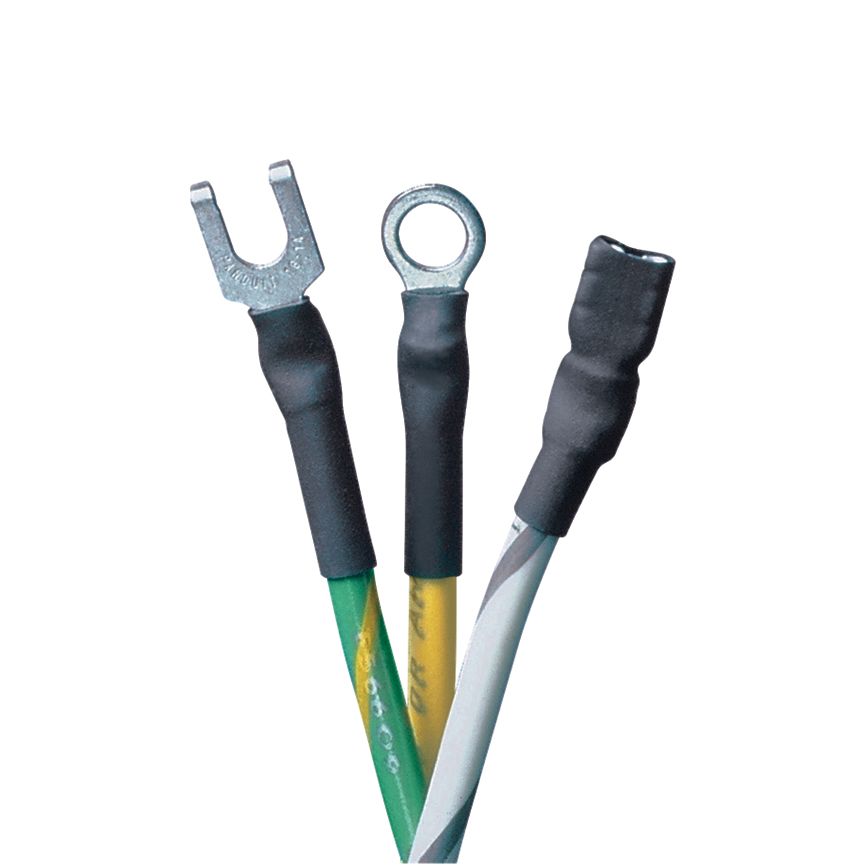

Product Long Description DRY-SHRINK Thin Wall Heat Shrink, 0.063 Inch (1.6 mm) Diameter, 0.031 Inch (0.8 mm) Maximum Recovered Inside Diameter, 48 Inch Lengths, 25 pieces, Clear. For use in insulating, protecting, harnessing and identifying electrical and electronic components. Shrink Ratio is 2 to 1. Temperature Range is -67 degrees Fahrenheit to 275 degrees Fahrenheit (-55 degrees Celsius to 135 degrees Celsius). Voltage is 600 Volts. Military Specification AMS-DTL-23053/5 Class 2 (material performance only).
Application For Dry Locations
Material Polyolefin cross-linked
Color Clear
Shrink Ratio 2:1
Item Long Description Thin wall heat shrink, .06" (1.6mm) diameter, clear cross-linked polyolefin, 25 pc. package quantity.
MDM Pkg GTiN 00074983906581
Color Clear
Type Heat Shrink
Thickness 0.017 IN
Material Polyolefin Cross-linked
Shrink Ratio 2:1
Applications For Dry Locations
Country of Origin KR
Pkg Qty 25
Family Brand Name Panduit
Outside Diameter 0.063 in
Overall Length 4 ft
Inside Diameter 0.031 IN
Sub Brand Dry-Shrink
UNSPSC 39121723
