Panduit HSTT12-48-Q .12 Inch 3.2 mm Diameter Black Thin Wall Heat Shrink Tubing
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2.39/pc (1 ea)
In Stock | 33 available at 3 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # HSTT12-48-Q
Codale Part # 49359

Specifications

  • UNSPSC: 39121723
  • Product Segment: IEI
  • Product Type: Heat Shrink
  • Adhesive Lined: NA
  • Color: Black
  • Material: Flame retardant polyolefin cross-linked except clear
  • Nominal Diameter (mm): 3.2
  • Sub Brand: Dry-Shrink
  • Nominal Recovered Wall Thickness (mm): 0.5
  • Nominal Recovered Wall Thickness (In.): 0.02
  • Overall Length (ft.): 4
  • Overall Length (m): 1.2
  • Resistance Properties: Heat-Resistant
  • Shrink Ratio: 2:1
  • Minimum Expanded Inside Diameter (In.): 0.125
  • Minimum Expanded Inside Diameter (mm): 3.2
  • Application: For Dry Locations

Packaging Details

  • UPC: 07498390589
  • GTIN Package: 00074983905898
  • Standard Package Volume Ft3: 0.1733
  • Standard Package Weight Pounds: 0.7600
  • Std Package Height In: 2.4
  • Std Package Height MM: 60.96
  • Std Package Length In: 49.4
  • Std Package Length MM: 1254.76
  • Std Package Width In: 2.6
  • Std Package Width MM: 66.04
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 25
  • Standard Carton Volume Ft3: 0.1733
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 1254.76
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: KR
  • RoHS Compliant: Compliant
  • EAN: 00074983905898
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: N
  • ARRA Compliant: N
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 25

Overview

UPC 07498390589
Codale Part No. 49359
Product Long Description DRY-SHRINK Thin Wall Heat Shrink, 0.125 Inch (3.2 mm) Diameter, 0.062 Inch (1.6 mm) Maximum Recovered Inside Diameter, 48 Inch Lengths, 25 pieces, Black. For use in insulating, protecting, harnessing and identifying electrical and electronic components. Shrink Ratio is 2 to 1. Temperature Range is -67 degrees Fahrenheit to 275 degrees Fahrenheit (-55 degrees Celsius to 135 degrees Celsius). Voltage is 600 Volts. UL Recognized. CSA Certified. Military Specification AMS-DTL-23053/5 Class 1 (material performance only).
Application For Dry Locations
Material Flame retardant polyolefin cross-linked except clear
Color Black
Shrink Ratio 2:1

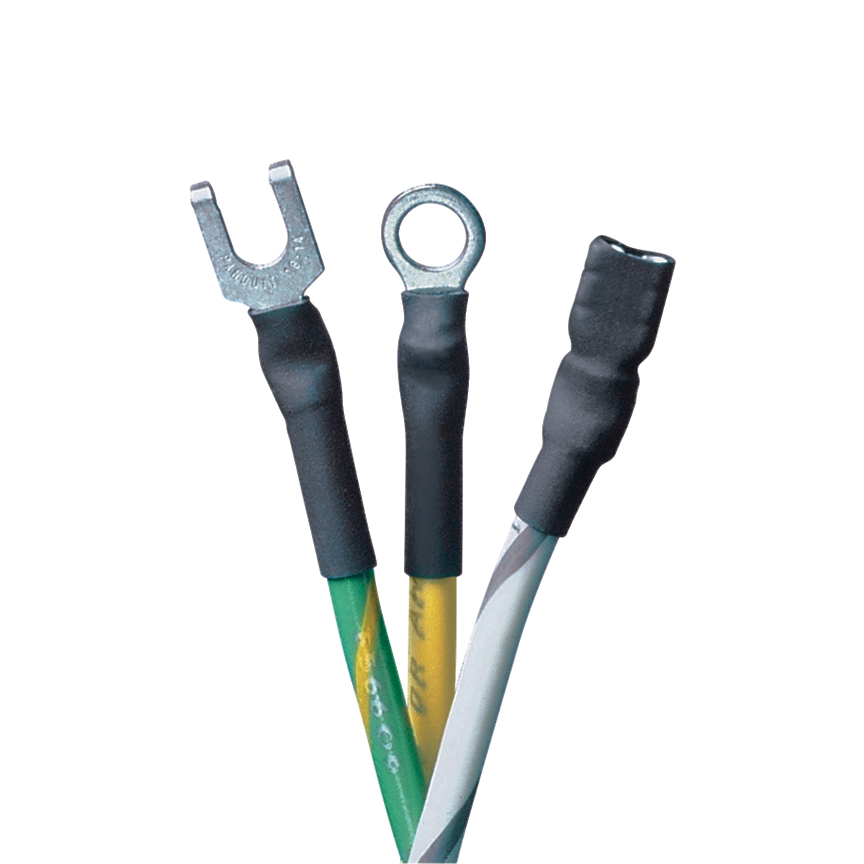

Item Long Description Panduit Thin-wall Heat Shrink Tubing shrinks around wires, connectors, joints and terminals when heated to protect against abrasion, fire and chemicals. Cross-link Polyolefin, 0.12D x 3.94L (3.2mm x 1.2m), Black, 25pc.
MDM Pkg GTiN 00074983905898
Color Black
Type Flame Retardant
Thickness 0.02 IN
Material Polyolefin
Shrink Ratio 2:1
Applications For Dry Locations
Country of Origin KR
Pkg Qty 25
Family Brand Name Panduit
Outside Diameter 0.125 in
Overall Length 4 ft
Inside Diameter 0.062 IN
Sub Brand Dry-Shrink
MDM DDS PROP65 WARNING No
Length 3.94 ft
Temperature Rating -55 to 135 C
UNSPSC 39121723
