Panduit HSTT19-48-Q .19 Inch 4.8 mm Diameter Black Thin Wall Heat Shrink Tubing
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2.99/pc (1 ea)
In Stock | 36 available at 2 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # HSTT19-48-Q
Codale Part # 49360

Specifications

  • Product Segment: IEI
  • Product Type: Heat Shrink
  • Adhesive Lined: No
  • Color: Black
  • Material: Cross-Linked Polyolefin
  • Maximum Operating Temperature (°C): 135
  • Maximum Operating Temperature (°F): 275
  • Minimum Operating Temperature (°F): -67
  • Minimum Operating Temperature (°C): -55
  • Nominal Diameter (mm): 4.8
  • Nominal Diameter (In.): 0.187
  • Nominal Recovered Wall Thickness (mm): 0.5
  • Sub Brand: Dry-Shrink™
  • Nominal Recovered Wall Thickness (In.): 0.02
  • Overall Length (In.): 48
  • Overall Length (ft.): 4
  • Overall Length (mm): 1219.2
  • Overall Length (m): 1.22
  • Resistance Properties: Flame Retardant
  • Standards Met: UL: E122770; Mil Spec: AMS-DTL-23053/5 Class 1
  • Shrink Ratio: 2:1
  • Shrink Temperature (°C): 90
  • Shrink Temperature (°F): 194
  • Maximum Recovered Inside Diameter (mm): 2.4
  • Maximum Recovered Inside Diameter (In.): 0.093
  • Minimum Expanded Inside Diameter (mm): 4.8
  • Minimum Expanded Inside Diameter (In.): 0.187
  • Application: For Dry Locations; Insulating and protecting wires and cables

Packaging Details

  • UPC: 07498390590
  • GTIN Package: 00074983905904
  • Standard Package Volume Ft3: 0.1733
  • Standard Package Weight Pounds: 0.8350
  • Std Package Height In: 2.4
  • Std Package Height MM: 60.96
  • Std Package Length In: 49.4
  • Std Package Length MM: 1254.76
  • Std Package Width In: 2.6
  • Std Package Width MM: 66.04
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 25
  • Standard Carton Volume Ft3: 0.1733
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 1254.76
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: KR
  • RoHS Compliant: Compliant
  • EAN: 00074983905904
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 25

Overview

UPC 07498390590
Codale Part No. 49360
Product Long Description DRY-SHRINK Thin Wall Heat Shrink, 0.187 Inch (4.8 mm) Diameter, 0.093 Inch (2.4 mm) Maximum Recovered Inside Diameter, 48 Inch Lengths, 25 pieces, Black. For use in insulating, protecting, harnessing and identifying electrical and electronic components. Shrink Ratio is 2 to 1. Temperature Range is -67 degrees Fahrenheit to 275 degrees Fahrenheit (-55 degrees Celsius to 135 degrees Celsius). Voltage is 600 Volts. UL Recognized. CSA Certified. Military Specification AMS-DTL-23053/5 Class 1 (material performance only).
Application For Dry Locations
Material Flame retardant polyolefin cross-linked except clear
Color Black
Shrink Ratio 2:1

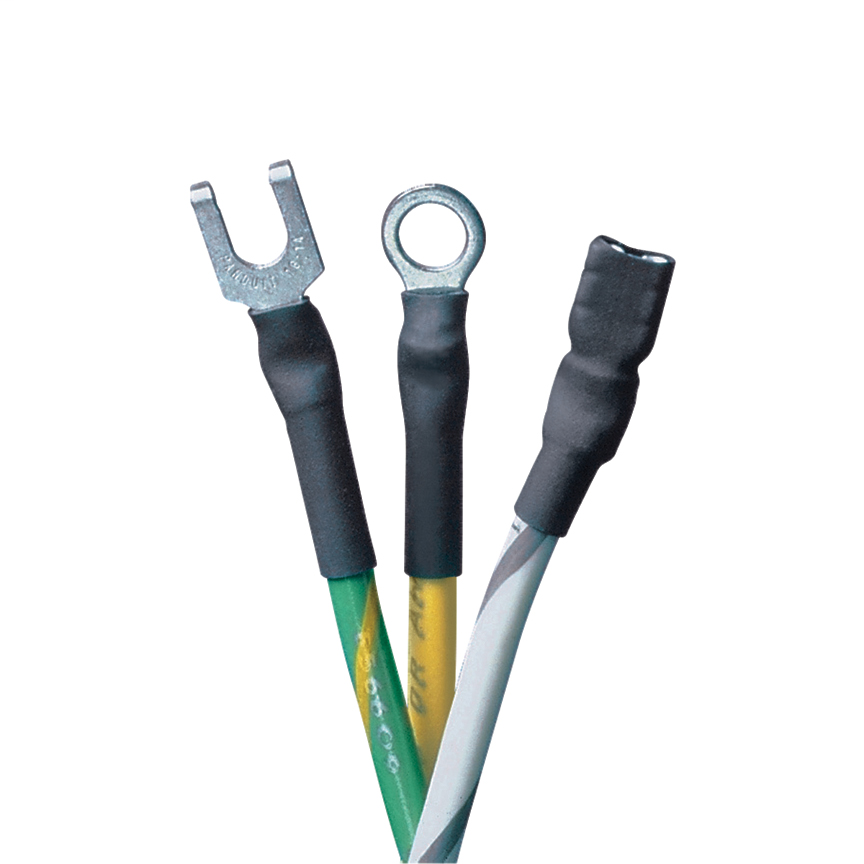

Item Long Description The HSTT19-48-Q Thin Wall Heat Shrink Tubing shrinks around wires, connectors, joints, and terminals when heated to protect against abrasion. Applications include insulating and protecting wires/cables in indoor, dry locations. Shrink ratio: 2:1. Temperature range: -67F to 275F (-55C to 135C). Flame retardant, cross-linked polyolefin. 0.187 Diameter x 4 Long (4.8 mm x 1.2 m). Color Black. 25 per package.
MDM Pkg GTiN 00074983905904
Color Black
Type Flame Retardant
Thickness 0.5 mm
Material Polyolefin
Shrink Ratio 2:1
Applications For Dry Locations
Country of Origin KR
Temperature Rating -55 to 135 C
Pkg Qty 25
Family Brand Name Panduit
Outside Diameter 4.8 mm
Overall Length 4 ft
Inside Diameter 2.4 mm
Sub Brand Dry-Shrink
MDM DDS PROP65 WARNING No
