Panduit HSTT25-48-QC 2.5 Inch (64 mm) Diameter Clear Thin Wall Heat Shrink Tubing
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3.87/pc (1 ea)
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # HSTT25-48-QC
Codale Part # 49375

Specifications

  • Product Segment: IEI
  • Product Type: Heat Shrink
  • Adhesive Lined: No
  • Color: Clear
  • Material: Cross-Linked Polyolefin
  • Maximum Operating Temperature (°C): 135
  • Maximum Operating Temperature (°F): 275
  • Minimum Operating Temperature (°C): -55
  • Minimum Operating Temperature (°F): -67
  • Nominal Diameter (mm): 6.4
  • Nominal Diameter (In.): 0.25
  • Sub Brand: Dry-Shrink™
  • Nominal Recovered Wall Thickness (In.): 0.025
  • Nominal Recovered Wall Thickness (mm): 0.6
  • Overall Length (ft.): 4
  • Overall Length (In.): 48
  • Overall Length (m): 1.22
  • Overall Length (mm): 1219.2
  • Standards Met: Mil Spec: AMS-DTL-23053/5 Class 2
  • Shrink Ratio: 2:1
  • Shrink Temperature (°F): 194
  • Shrink Temperature (°C): 90
  • Maximum Recovered Inside Diameter (In.): 0.125
  • Maximum Recovered Inside Diameter (mm): 3.2
  • Minimum Expanded Inside Diameter (mm): 6.4
  • Minimum Expanded Inside Diameter (In.): 0.25
  • Application: For Dry Locations; Insulating and protecting wires and cables

Packaging Details

  • UPC: 07498390662
  • GTIN Package: 00074983906628
  • Standard Package Volume Ft3: 0.1733
  • Standard Package Weight Pounds: 1.0925
  • Std Package Height In: 2.4
  • Std Package Height MM: 60.96
  • Std Package Length In: 49.4
  • Std Package Length MM: 1254.76
  • Std Package Width In: 2.6
  • Std Package Width MM: 66.04
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 25
  • Standard Carton Volume Ft3: 0.1733
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 1254.76
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: KR
  • RoHS Compliant: Compliant
  • EAN: 00074983906628
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: N
  • ARRA Compliant: N
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 25

Overview

UPC 07498390662
Codale Part No. 49375
Product Long Description DRY-SHRINK Thin Wall Heat Shrink, 0.250 Inch (6.4 mm) Diameter, 0.125 Inch (3.2 mm) Maximum Recovered Inside Diameter, 48 Inch Lengths, 25 pieces, Clear. For use in insulating, protecting, harnessing and identifying electrical and electronic components. Shrink Ratio is 2 to 1. Temperature Range is -67 degrees Fahrenheit to 275 degrees Fahrenheit (-55 degrees Celsius to 135 degrees Celsius). Voltage is 600 Volts. Military Specification AMS-DTL-23053/5 Class 2 (material performance only).
Application For Dry Locations
Material Polyolefin cross-linked
Color Clear
Shrink Ratio 2:1

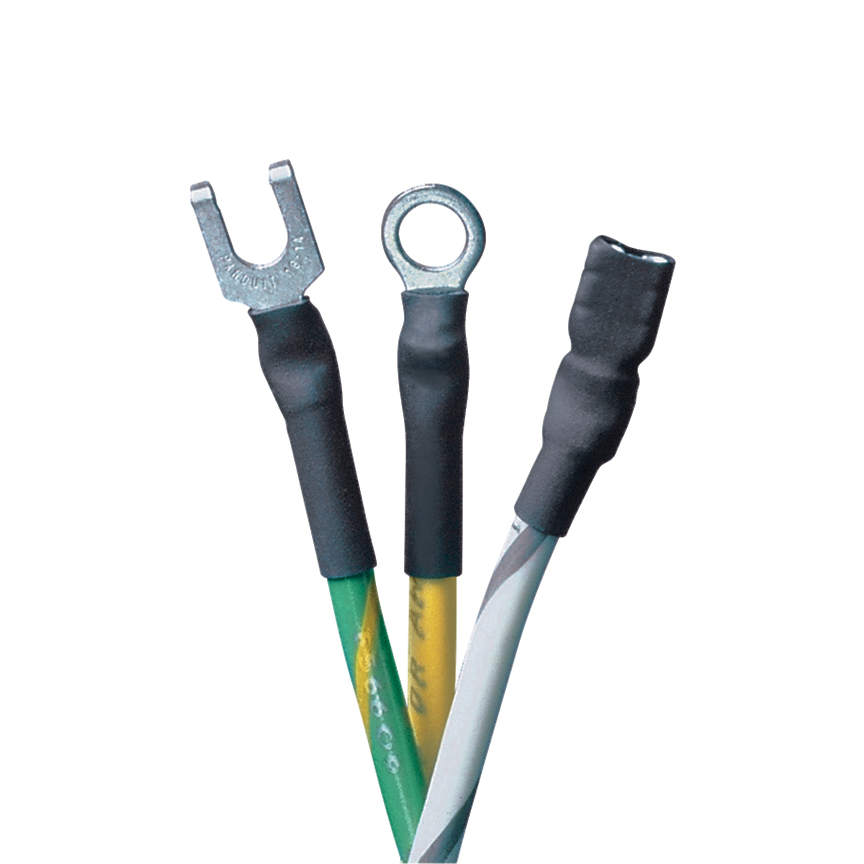

Item Long Description The HSTT25-48-QC Thin Wall Heat Shrink Tubing shrinks around wires, connectors, joints, and terminals when heated to protect against abrasion. Applications include insulating and protecting wires/cables in indoor, dry locations. Shrink ratio: 2:1. Temperature range: -67F to 275F (-55C to 135C). Cross-linked polyolefin. 0.25 Diameter x 4 Long (6.4 mm x 1.2 m). Color Clear. 25 per package.
MDM Pkg GTiN 00074983906628
Color Clear
Type Heat Shrink
Thickness 0.025 IN
Material Polyolefin Cross-linked
Shrink Ratio 2:1
Applications For Dry Locations
Country of Origin KR
Pkg Qty 25
Family Brand Name Panduit
Outside Diameter 0.25 in
Overall Length 4 ft
Inside Diameter 0.125 IN
Sub Brand Dry-Shrink
MDM DDS PROP65 WARNING No
