Manufacturer | Panduit |
---|---|
Mfg Catalog # | HSTT50-48-5 |
Codale Part # | 49384 |
UPC | 07498390593 |
Product Description | HEAT SHRINK THIN, .50(12.7MM) DIA, BLAC |

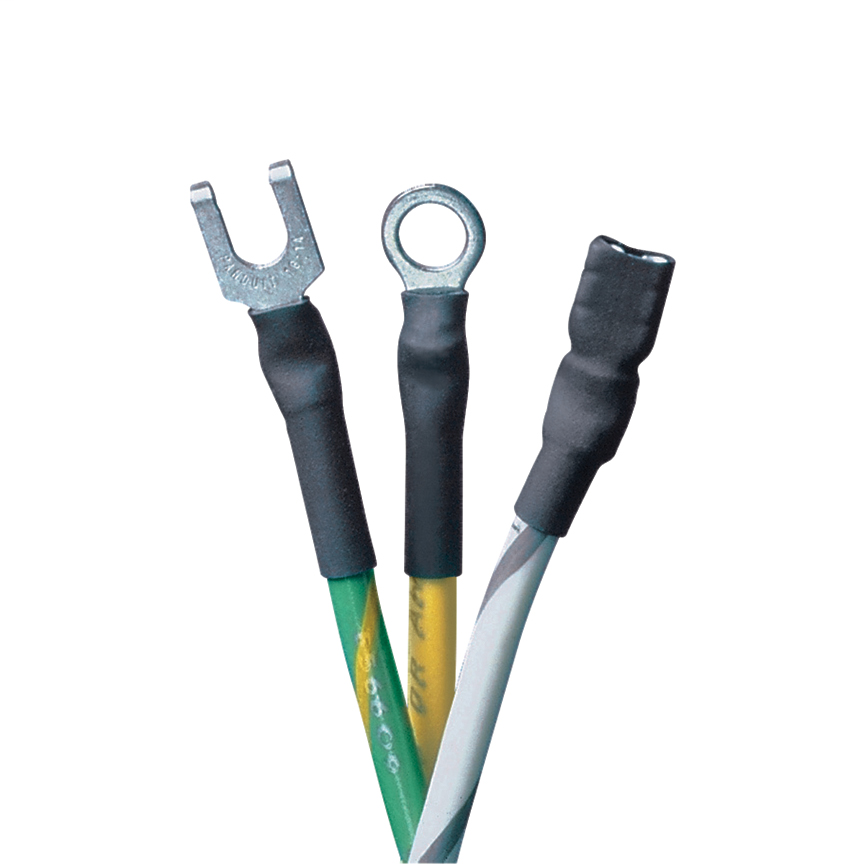

Catalog Description | Thin wall heat shrink, .50" (12.7mm) diameter, black cross-linked polyolefin, 5 pc. package quantity. |
Codale Part No. | 49384 |
Product Long Description | DRY-SHRINK Thin Wall Heat Shrink, 0.500 Inch (12.7 mm) Diameter, 0.250 Inch (6.4 mm) Maximum Recovered Inside Diameter, 48 Inch Lengths, 5 pieces, Black. For use in insulating, protecting, harnessing and identifying electrical and electronic components. Shrink Ratio is 2 to 1. Temperature Range is -67 degrees Fahrenheit to 275 degrees Fahrenheit (-55 degrees Celsius to 135 degrees Celsius). Voltage is 600 Volts. UL Recognized. CSA Certified. Military Specification AMS-DTL-23053/5 Class 1 (material performance only). |
Application | For Dry Locations |
Material | Flame retardant polyolefin cross-linked except clear |
Color | Black |
Shrink Ratio | 2:1 |
Product Short Description | Thin wall heat shrink, .50" (12.7mm) diameter, black cross-linked polyolefin, 5 pc. package quantity. |
Item Long Description | DRY-SHRINK Thin Wall Heat Shrink, 0.500 Inch (12.7 mm) Diameter, 0.250 Inch (6.4 mm) Maximum Recovered Inside Diameter, 48 Inch Lengths, 5 pieces, Black. For use in insulating, protecting, harnessing and identifying electrical and electronic components. Shrink Ratio is 2 to 1. Temperature Range is -67 degrees Fahrenheit to 275 degrees Fahrenheit (-55 degrees Celsius to 135 degrees Celsius). Voltage is 600 Volts. UL Recognized. CSA Certified. Military Specification AMS-DTL-23053/5 Class 1 (material performance only). |
MDM Pkg GTiN | 00074983905935 |
Length | 1.2 m |
Color | Black |
Type | Heat Shrink |
Thickness | 0.025 IN |
Material | Flame Retardant Poly |
Shrink Ratio | 2:1 |
Applications | For Dry Locations |
Country of Origin | KR |
Temperature Rating | -55 to 135 C |
Pkg Qty | 5 |
Family Brand Name | Panduit |
Outside Diameter | 0.5 in |
Overall Length | 4 ft |
Inside Diameter | 0.250 IN |
Sub Brand | Dry-Shrink |
MDM DDS PROP65 WARNING | No |
MDM PRODUCT KEYWORD | ST500-48, 46-608, 25009, HSTT50-48-T, CPO500-0-A-M, PSBT-12-FR-48, 50140, 50600, HSTT50-48-Q, CPO500-0-A, TWHS-500-48 |
