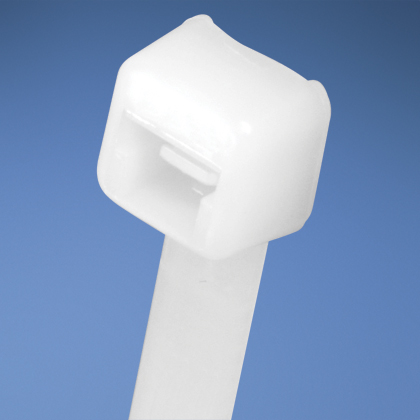

Panduit PLT2S-M 1000/Pack 7.4 Inch (188 mm) Standard Cross Section Nylon Cable Tie
Product image thumbnail 0
Product image thumbnail 1
$72.99/m (1000 ea)
ea
Adding...
Order in multiples of 1000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PLT2S-M
Codale Part # 50018

Specifications

  • Product Segment: IEI
  • Product Type: Cable Ties
  • Color: Natural
  • Sub Brand: Pan-Ty®
  • Environment: Indoor
  • For Use With: GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PPTS, PTH, STS2, STH2
  • Material: Nylon 6.6
  • Resistance Properties: NA
  • Maximum Bundle Diameter (In.): 1.88
  • Maximum Bundle Diameter (mm): 48
  • Maximum Installation Temperature (°F): 32
  • Maximum Operating Temperature (°F): 185
  • Maximum Operating Temperature (°C): 85
  • Minimum Bundle Diameter (In.): 0.06
  • Minimum Bundle Diameter (mm): 1.5
  • Minimum Installation Temperature (°C): -20
  • Minimum Installation Temperature (°F): -4
  • Minimum Loop Tensile Strength (N): 222
  • Minimum Loop Tensile Strength (lb): 50
  • Minimum Operating Temperature (°F): -76
  • Minimum Operating Temperature (°C): -60
  • Overall Length (mm): 188
  • Overall Length (In.): 7.4
  • Body Width (In.): 0.19
  • Body Width (mm): 4.8
  • Body Thickness (mm): 1.3
  • Body Thickness (In.): 0.052
  • Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2S, 21S), RoHS Complaint
  • Military Cross Reference Number: MS3367-1-9

Packaging Details

  • UPC: 07498354078
  • GTIN Package: 00074983540785
  • Standard Package Volume Ft3: 0.2210
  • Standard Package Weight Pounds: 3.0773
  • Std Package Height In: 3.8
  • Std Package Height MM: 96.52
  • Std Package Length In: 12.4
  • Std Package Length MM: 314.96
  • Std Package Width In: 11.4
  • Std Package Width MM: 289.56
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • GTIN Carton: 50074983540780
  • Standard Carton Volume Ft3: 0.2210
  • Standard Carton Weight Pounds: 30.7728
  • Std Carton Height In: 15.55
  • Std Carton Height MM: 394.97
  • Std Carton Length In: 23.05
  • Std Carton Length MM: 314.96
  • Std Carton Width In: 11.05
  • Std Carton Width MM: 280.67
  • Std Ctn Qty: 10000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CR
  • RoHS Compliant: Compliant
  • EAN: 00074983540785
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 5,000

Overview

UPC 07498354078
Codale Part No. 50018
Product Long Description Cable Tie, 7.4 Inches (188 mm) Length, Standard, 50 Pounds Minimum Loop Tensile Strength, Nylon 6.6, Natural. Material Flammability Rating of V-2. For indoor use. One-piece construction for consistent performance and reliability. Low thread force. Curved tip is easy to pick up from flat surfaces and allows faster initial threading.
Material Nylon 6.6
Color Natural
For Use With GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH
Item Long Description Cable Tie, 7.4L (188mm), Standard, Nylon, Natural
MDM Pkg GTiN 00074983540785
Length 188 mm
Width 4.8 mm
Color Natural
Type Standard, Locking
Thickness 1.3 mm
Material Nylon 6/6
Applications For General use
Country of Origin Costa Rica
Temperature Rating -60 to 85 C
Pkg Qty 1000
Family Brand Name Panduit
Max Operating Temperature 185 degrees F
Overall Length 7.4 in
Standard Packaging Qty 1000/Pack
Min Operating Temperature -76 degrees F
Tensile Strength 222 N
Bundle Diameter 48 mm
Sub Brand Pan-Ty
MDM DDS PROP65 WARNING No
