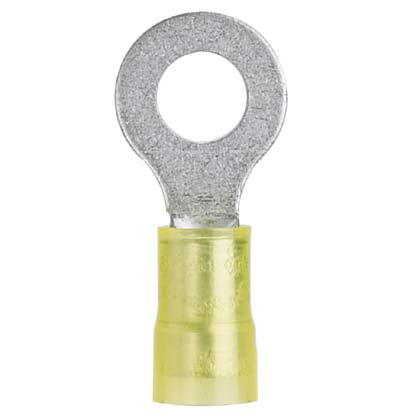

Panduit PN10-14R-L 12-10 AWG Nylon Insulated Ring Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$96.99/c (100 ea)
Usually ships within 8 to 12 Days
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PN10-14R-L
Codale Part # 49671

Specifications

  • Product Segment: IEI
  • Stud Hole Size (In.): 1/4
  • Insulation Material: Nylon
  • Maximum Copper Conductor Size (AWG STR): #10
  • Minimum Wire Size (AWG): #12
  • Maximum Wire Size (AWG): #10
  • Maximum Copper Conductor Size (AWG SOL): #10
  • Minimum Copper Conductor Size (AWG STR): #12
  • Minimum Copper Conductor Size (AWG SOL): #12
  • Minimum Metric Conductor Size (mm²): 4
  • Maximum Metric Conductor Size (mm²): 6
  • Wire Strip Length (mm): 7.1
  • Wire Strip Length (In.): 9/32
  • Standards Met: UL 486A/B, and CSA 22.2 No.65
  • Maximum Voltage (kV): 0.6
  • Maximum Voltage (V): 600
  • Base Material: Copper
  • Finish/Coating: Tin-Plated
  • Color Code: Yellow
  • Barrel Type: Grip Sleeve
  • Flammability Rating: UL94-HB
  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105
  • Maximum Wire Insulation Diameter (mm): 5.72
  • Maximum Wire Insulation Diameter (In.): 0.225
  • Sub Brand: Pan-Term®
  • Overall Length (mm): 30.7
  • Overall Length (In.): 1.21
  • Overall Width (In.): 0.52
  • Overall Width (mm): 13.2
  • Tongue Thickness (In.): 0.04
  • Tongue Thickness (mm): 1.02
  • Tongue Width (In.): 0.52
  • Tongue Width (mm): 13.2
  • Packaging Type: Bottle
  • Product Type: Loose Piece Ring Terminal
  • For Use With: CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)

Packaging Details

  • UPC: 07498380034
  • GTIN Package: 00074983800346
  • Standard Package Volume Ft3: 0.0099
  • Standard Package Weight Pounds: 0.3400
  • Std Package Height In: 1.9
  • Std Package Height MM: 48.26
  • Std Package Length In: 4.3
  • Std Package Length MM: 109.22
  • Std Package Width In: 1.95
  • Std Package Width MM: 49.53
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • GTIN Carton: 50074983800341
  • Standard Carton Volume Ft3: 0.0099
  • Standard Carton Weight Pounds: 3.4000
  • Std Carton Height In: 4.4
  • Std Carton Height MM: 111.76
  • Std Carton Length In: 10.35
  • Std Carton Length MM: 109.22
  • Std Carton Width In: 4.45
  • Std Carton Width MM: 113.03
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983800346
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 50
  • Pallet Quantity: 0
  • Pallet Volume: 0.000000
  • Pallet Weight: 0.0000

Overview

UPC 07498380034
Codale Part No. 49671
Product Long Description Ring Terminal, Nylon Insulated, 12 - 10 American Wire Gauge (AWG), 1/4 Inch Stud Size. Ring tongue design assures a secure connection in high vibration applications. Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL 94V-2/HB, maximum insulation temperature 221 degrees Fahrenheit (105 degrees Celsius). UL and CSA rated up to 600 Volts per UL 486A/B. Standard Package.
Sub Brand Pan-Term
Barrel Type Insulation Grip Sleeve
Color Code Yellow
Flammability Rating UL 94 V-2/UL 94 HB
Packaging Type Bottle
Item Long Description The PN10-14R-L Pan-Term Terminal is a nylon insulated, ring terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.
Finish Tin-Plated
Width 0.52 in
Size M6
Color Yellow
Type Loose Piece Ring Terminal
Barrel Type Grip Sleeve
Material Copper
Country of Origin MX
Wire Size 12-10 AWG
Temperature Rating 221 F
Pkg Qty 50
Family Brand Name Panduit
Tc Connection Standard
Max Operating Temperature 221 degrees F
Overall Length 1.21 in
Barrel Length 0.61 in
Color Coding Yellow
Enclosure Ring shape
Sub Brand Pan-Term
Voltage 600 Volt
