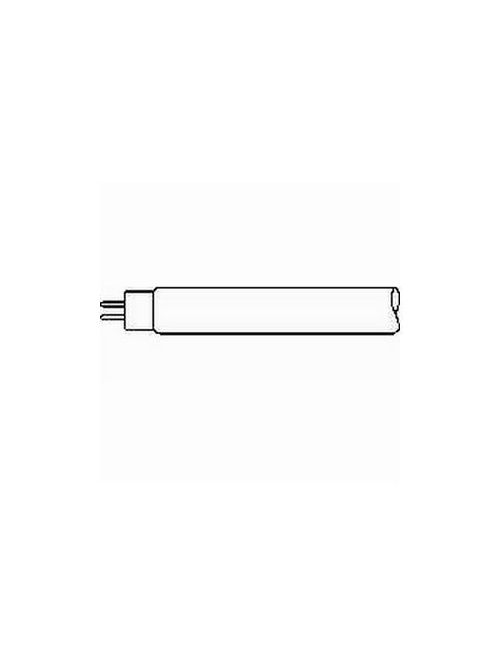

Philips 290213 24 W T5 Miniature Bi-Pin 1950 Lumen 4100 K 85 CRI Linear Fluorescent Lamp
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$11.67/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Signify Lamps
Mfg Catalog # 290213
Codale Part # 435908

Features

  • Reduced maintenance and disposal costs.
  • Long life for an extended relamping cycle.
  • 35,000 hours rated average life*.
  • Up to 70% more lumens than standard Standard T5 lamps.
  • Reduces the impact on the environment: low mercury, energy efficiency, long life, and less material.
  • Only 1.4 mg of mercury, the lowest in the industry.
  • With just 12 Picograms per lumen hour†, these lamps allow for more design freedom and help exceed all LEED requirements◊.
  • 24, 39, 54 and 80 Watt with 3000, 3500, 4100, 5000, and 6500 Color Temperatures.

Benefits

  • Reduces the impact on the environment with low mercury, energy efficiency, long life, and less material.
  • Warranty period: 36 months.
  • 95% lumen maintenance.

Applications

  • Ideal for medium-bay and high-bay retail and industrial applications.

Warning And Safety

  • Lamp contains mercury. Manage in Accord with Disposal Laws. See: www.lamprecycle.org or 1-800-555-0050

Specifications

General Information

  • Base: G5 [ G5]
  • Life to 50% Failures Preheat (Nom): 30000 h
  • Features: HO Alto® [ High Output Alto]
  • System Description: High Output (HO)
  • LSF Preheat 2000 h Rated: 99 %
  • LSF Preheat 4000 h Rated: 99 %
  • LSF Preheat 6000 h Rated: 99 %
  • LSF Preheat 8000 h Rated: 99 %
  • LSF Preheat 16000 h Rated: 97 %
  • LSF Preheat 20000 h Rated: 84 %

Light Technical

  • Color Code: 841 [ CCT of 4100K]
  • Initial lumen (Nom): 1950 lm
  • Luminous Flux (Rated) (Nom): 1700 lm
  • Color Designation: Cool White (CW)
  • Luminous Efficacy (@ Max Lumen, Rated) (Nom): 87 lm/W
  • Correlated Color Temperature (Nom): 4100 K
  • Luminous Efficacy (rated) (Nom): 76 lm/W
  • Color Rendering Index (Max): 85
  • Color Rendering Index (Min): 80
  • Color Rendering Index (Nom): 82
  • LLMF 2000 h Rated: 96 %
  • LLMF 4000 h Rated: 95 %
  • LLMF 6000 h Rated: 94 %
  • LLMF 8000 h Rated: 93 %
  • LLMF 12000 h Rated: 92 %
  • LLMF 16000 h Rated: 91 %
  • LLMF 20000 h Rated: 90 %

Operating and Electrical

  • Power (Rated) (Nom): 22.5 W
  • Lamp Current (Nom): 0.295 A

Temperature

  • Design Temperature (Nom): 35 °C

Controls and Dimming

  • Dimmable: Yes

Mechanical and Housing

  • Cap-Base Information: Green [ Green Cap]

Approval and Application

  • Energy Efficiency Label (EEL): A
  • Mercury (Hg) Content (Nom): 1.4 mg

Overview

UPC 04667729021
Codale Part No. 435908
Product Long Description High Output (HO)
Color Code 841  [ CCT of 4100K]
Base G5  [ G5]
Dimmable Yes
Family Brand Name Philips Lighting
Item Long Description Lamps, Fluorescent, Energy Saving, Lamp Type: F24T5/841/HO/ALTO , Length: 22 inch, Life Average Rated: 20000 Hour, Base: T5 Miniature Bi-Pin, Watts: 24, Color Rendering Index: 85, Diameter: 5/8 inch, Light Output: 2000 Lumens, Features: TL841, 4100K
MDM Pkg GTiN 00046677290214
Color Cool White
Voltage 281 Volt
Type High Output
Diameter 17 mm
Applications General Use
Weight 54.000 g
Wattage 24 Watt
Color Temperature 4100 K
Lumens 1950 lm
Base G5
Shape T5
Dimmable? Yes
Amperage 0.295 Amp
Correlated Color Temp 4100 K
Bulb Shape T5
Efficacy 76 LPW
Lamp Wattage 25 wtt
Color Rendering Index 80,82
Power Rating 22.5 W
Color Coding 841
