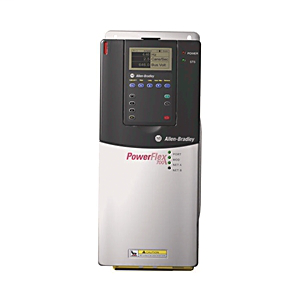

Allen-Bradley 20BD040A0AYNANC0 Powerflex 700 40 Amp 30 Hp AC Drive
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$9,545.00/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen Bradley / Rockwell
Mfg Catalog # 20BD040A0AYNANC0
Codale Part # 1405182

Features

  • Provides excellent torque production, tight torque regulation, and fast update times of torque inputs
  • Offers CIP™ (Common Industrial Protocol) communications including DeviceNet™, ControlNet™, and EtherNet/IP™
  • Provides V/Hz control, sensorless vector control, and vector control with FORCE™ Technology
  • Offers configuration and programming via optional integral LCD keypad, remote keypad, or software
  • Meets demands for space, flexibility, and reliability
  • Offers Premier Integration with PowerFlex® AC drives which uses the Logix control platform to simplify parameter and tag programming and reduce development time
  • Our industry expertise in Drives Systems Solutions can help you maximize machine availability and minimize project risk.
  • Includes power ratings:
  • Offers a control cassette which houses all control, I/O, and encoder options and is interchangeable with all PowerFlex® 700 drive ratings

Specifications

  • Voltage Rating: 480 VAC, 3 PH

Lifecycle Status Note

  • LifeCycle Status Note: PowerFlex 700 Frame 7-10 Drives are now Discontinued. We recommend that you consider the new generation PowerFlex 755 drive family as an alternative.

Base Drive Information

  • Input Voltage: 480 VAC, 3 PH
  • Output Current: 40 Amps
  • Enclosure: IP20 / Type 1, with conformal coating
  • Frame Size: Frame Size 3
  • I/O: Vector Control with 24V I/O
  • Brake IGBT: Brake IGBT Installed
  • Brake Resistor: No Brake Resistor
  • EMC Filtering Options: Second Environment Filter per CE EMC directive (89/336/EEC)

Options Information

  • Base Plus Options: Base Plus Options Method
  • Internal Communication Module: No Communication Module

Overview

Codale Part No. 1405182
Product Long Description 20B, 40 A at 30 Hp, 480V AC Three-Phase, IP20/NEMA/UL 1, Vector Ctrl W/ 24V I/O, No Feedback, No HIM - Blank Plate, No Communication Module, W/ EMC Filt & ComModeChoke, Brake IGBT Installed, No Internal Brake Resistor, Size 3 Frame, No Custom Firmware, Documentation
Voltage Rating 480 VAC, 3 PH
Enclosure Specification IP20 / Type 1, with conformal coating
Input Voltage 480 VAC, 3 PH
Frame Size Frame Size 3
Output Current 40 Amps
Product UPC 82091902127
Size Size 3 Frame
Voltage 480 Volt
Type 20B
Applications In Industrial Area
Input Voltage 480 V
Family Brand Name Allen Bradley
Enclosure Type IP20, NEMA/UL Type 1, Frame 3
Control Type Vector Control with 24 V I/O
Output 2 Analog
Output Current 40 A
Blade Dimensions 222 mm W x 200 mm D x 517.5 mm H
Enclosure IP20/NEMA/UL 1
Sub Brand PowerFlex 700
Standard C-TICK,CE,CUL,GOST,KC,MARINE,UL
Display Type No HIM - Blank Plate
