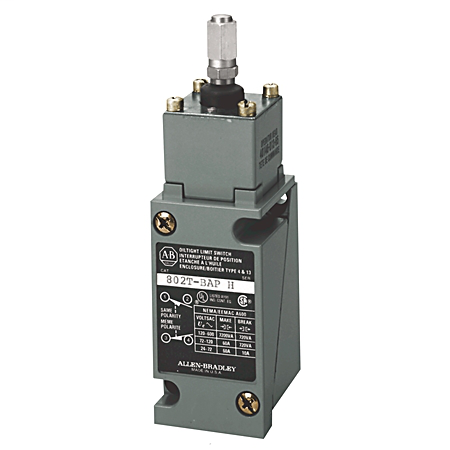

A-B 802T-BAP Metal Plug-In Oiltight
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$231.78/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen Bradley / Rockwell
Mfg Catalog # 802T-BAP
Codale Part # 123031

Features

  • Rugged metal construction
  • Alternative to oversized power contacts
  • Suitable for machine connectivity and low-voltage circuits
  • Proven reliability
  • Long life and reliability
  • NEMA 6P/IP67 sealing
  • Alternative to glass-enclosed reed switches or solid state devices
  • Snap acting contacts
  • Plug-in design
  • Front mount for simplified mounting
  • Direct opening action
  • Rugged construction
  • Optimized for low energy use
  • Connect directly to PLC input

Specifications

  • Type: Oiltight Limit Switches

Switch Data

  • Energy Rating: Standard Energy
  • Plug-In or NonPlug-In Style: Plug-In
  • Switch Components: Complete Switch
  • Actuation Type: Top Push Rod, Adjustable
  • Number of Circuits: 2-Circuit
  • Mode of Operation: N/A (Push Type/Wobble/Whisker/Neutral)
  • Safety Switch: No
  • Travel to Operate Contacts (Nominal): 1.4mm (0.057in)
  • Torque to Operate Contacts (Max.): 13.8N (3.1lb)
  • Travel to Reset Contacts (Max.): 7mm (0.276in)
  • Maximum Travel: 6.0mm (0.236in)

Operating Lever Data

  • Operating Lever: Operating Lever Not Selected

Overview

Codale Part No. 123031
Product Long Description Plug-In Oiltight Limit Switch, Metal, 10 A Standard Energy, Adjustable Top Push Rod, 2 Circuits, Conduit Entry, Standard Contacts, 1 Normally Open Contact, 1 Normally Closed Contact, Standard Low Temprature, -18°C, 110 °C High Temp Limit, Snap Acting, 1/2" NPT Thread, Push Accuation, Spring Return, Full Switch (Head & Body), NEMA Style Standard Mounting, Not Direct Acting, 802T Plug-in Style, 3.1 lb in, 1.4 mm, 0.7 mm, A600, 199
Type Oiltight Limit Switches
Product UPC 66246807967
Size 802T Plug-in Style
Operating Temperature -18 C
Type Plug-in Oiltight
Applications Full Switch (Head & Body)
Family Brand Name Allen Bradley
Tc Connection Cable Length Not Applicable,Number of Pins Not Applicable,Conduit Entry,Connector Type Not Applicable
Actuator Adjustable Top Push Rod
Contact Configuration 2 Circuits
Contact Rating A600
Number of Poles 2 Pole
Enclosure Metal
Material Metal
Mounting Type Standard
Temperature Rating -18 to 110 C
Number of Circuits 2
Standard CCC,CE,CSA,KC,UL
Connection Type Cable Length Not Applicable,Number Of Pins Not Applicable,Conduit Entry,Connector Type Not Applicable
