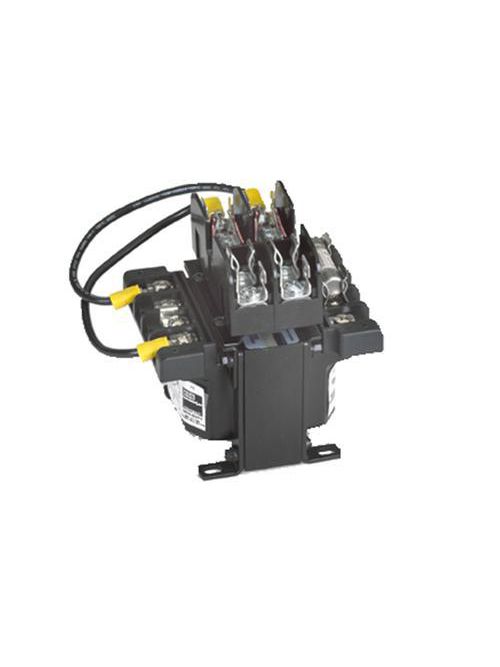

HEVI-DUTY E1000 1000VA 480 TO120VOLT WITH PRIMARY AND SECONDARYFUSE BLOCK
Product image thumbnail 0
Product image thumbnail 1
$217.95/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Sola/Hevi-Duty Products
Mfg Catalog # E1000
Codale Part # 487047
HEVI-DUTY E1000 1000VA 480 TO 120VOLT WITH PRIMARY AND SECONDARY FUSE BLOCK

Overview

UPC 78347253131
Catalog Description Encapsulated Industrial Control Transformer 1000VA, Volts Primary, 220x440, 230x460, 240x 480, Volts Secondary: 110, 115, 120, Frequency 50/60 HZ/60 HZ
Codale Part No. 487047
Item Long Description SolaHD offers a broad range of industrial control solutions for the most demanding industrial applications. Our products exceed NEMA ratings for inrush and regulation to ensure control systems are powered correctly. Electromagnetic control components demand inrush currents up to 10 times the transformer's nominal rating. While this inrush is occurring, the output side of the transformer must not fall below 85% of nominal as specified by NEMA ST-1, Part 4. Using a transformer that does not meet these ratings may cause erroneous shutdowns of downstream processes. The SBE series is available from 50 to 5000 VA, 55 C rise and features copper windings and encapsulation (through 1000 VA) for longer life and protection from the environment. This low temperature performance can mean smaller cabinet size or longer life for any electronic components that may be nearby.
MDM Pkg GTiN 00783472531318
Length 6.93 in
Width 6.38 in
Type SBE Encapsulated Series Transformers
Applications Industrial
Height 5.56 in
Wattage 750 Watt
Family Brand Name SolaHD
Number of Phases 1 Phase
Secondary Voltage 120 Volt Secondary
Primary Voltage 240 x 480 Volt Prima
