ACME T-1-81057 BUCK BOOST TRANSFORMER 250VA
$133.99/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ACME Transformers
Mfg Catalog # T181057
Codale Part # 466726

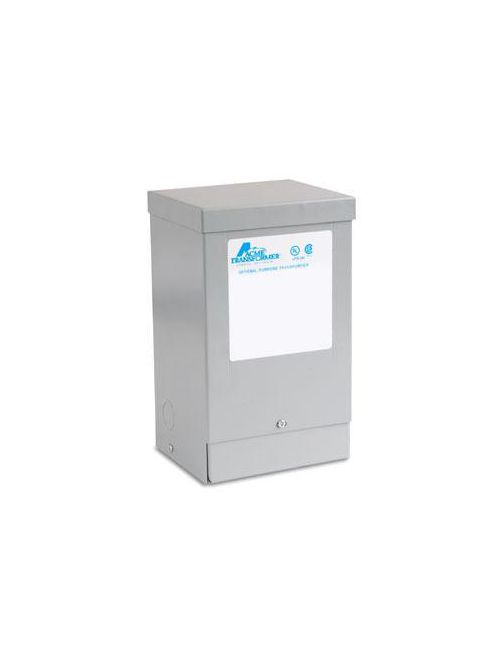

ACME T-1-81057 BUCK BOOST TRANSFORMER 250VA

Overview

UPC 04750317590
Catalog Description Acme Electric T-1-81057 Transformer, Encapsulated Core And Coil Buck-Boost, 120/240 V, 16/32 V, 3.98 KVA/16.67 AMP: 255 V Line And 239 V Load Buck Voltage, 3.75 KVA/15.63 AMP: 225 V Line And 240 V Load Boost Voltage, 60 HZ, 1 PH, 15.60 AMP At 16 V, 7.8 AMP At 32 V, 115 DEG C Rise, Wire Lead Screw Terminal Connection, 180 DEG C Class H Insulation, Wall Mounting, NEMA 3R, 4.08 IN Length, 3.88 IN Width, 8.68 IN Height, 0.25 KVA, Steel, Configuration: Primary: Two Winding, Secondary: Two Winding, UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, OSHA Compliant, ANSI, IEEE, For Low Voltage Lighting Or Control Circuitry
Family Brand Name ACME Electric
