UPC | 07498380018 |

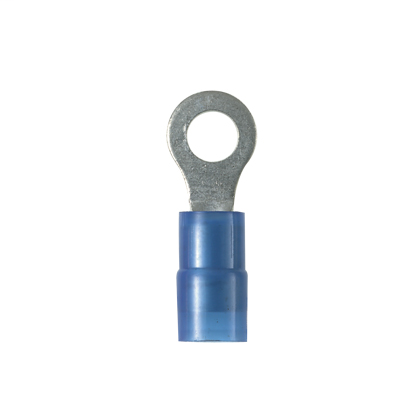

Product Description | RING TERMINAL, NYLON INSULATED, 18 - 14AWG |
Catalog Description | Ring Terminal, 18 14 AWG, #8 stud size, nylon insulated, standard package. |
Codale Part No. | 115018 |
Product Long Description | Ring tongue design assures a secure connection in high vibration applications. Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL 94V-2/HB, maximum insulation temperature 221 degrees Fahrenheit (105 degrees Celsius). UL and CSA rated up to 600 Volts per UL 486A/B. Standard Package. |
Sub Brand | Reel Smart |
For Use With | CT-550, CT-1550, CT-1551,CT-460 |
Barrel Type | Insulation Grip Sleeve |
Color Code | Blue |
Flammability Rating | UL 94 V-2/UL 94 HB |
Packaging Type | Bottle |
Product Short Description | Ring Terminal, 18 14 AWG, #8 stud size, nylon insulated, standard package. |
Item Long Description | Ring tongue design assures a secure connection in high vibration applications. Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL 94V-2/HB, maximum insulation temperature 221 degrees Fahrenheit (105 degrees Celsius). UL and CSA rated up to 600 Volts per UL 486A/B. Standard Package. |
MDM Pkg GTiN | 00074983800186 |
Finish | Tin-Plated |
Width | 0.31 in |
Size | #8 |
Color | Blue |
Type | Ring Terminal |
Barrel Type | Grip Sleeve |
Material | Copper |
Country of Origin | MX |
Wire Size | 16 |
Temperature Rating | 221 F |
Pkg Qty | 100 |
Family Brand Name | Panduit |
Tc Connection | Standard |
Max Operating Temperature | 221 degrees F |
Overall Length | 0.85 in |
Barrel Length | 0.43 in |
Color Coding | Blue |
Enclosure | Ring shape |
Sub Brand | Reel Smart |
Voltage | null |
