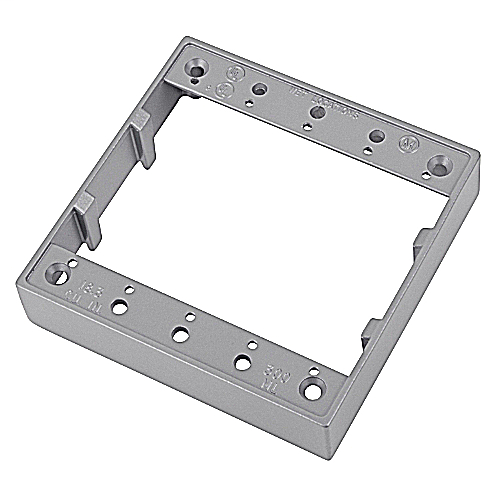

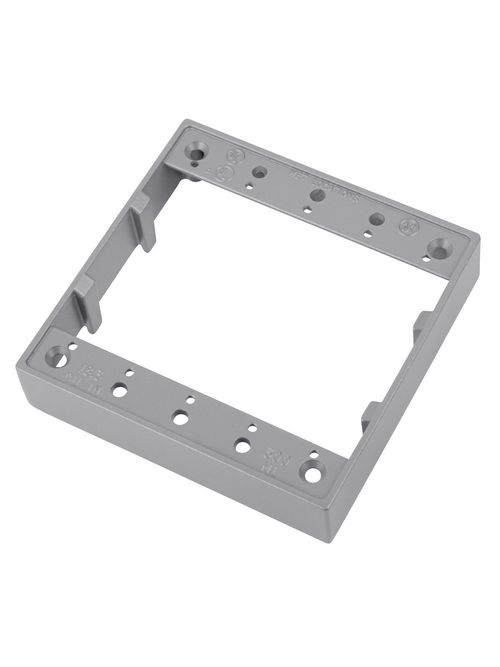

Red Dot 2IHE 2-Gang Rectangular Extension Ring
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$542.95/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABB Thomas & Betts
Mfg Catalog # 2IHE
Codale Part # 106310

Features

  • Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance
  • Precision cast and machined surfaces permit safer wire pulling.
  • Clean cover edges provide good gasket sealing.
  • Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.
  • Clear UL and cubic content markings speed approval by inspectors
  • Convenient mounting lugs for a variety of mounting methods
  • Securely fastened mounting plates reduce costly call backs

Application

  • Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
  • Junction box for branch conduits
  • Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations

General

  • Color: Silver
  • Number of Gangs: Two
  • Material: Die Cast Aluminum
  • Finish: Powder-coated

Packaging

  • Package Length: 10.75
  • T&B Weight Per UOM: 0.36 lbs. Each
  • Package Width: 8.38
  • Outer Package: 10
  • T&B Sold in UOM: Each
  • Inner Package: 1
  • Package Height: 6.25

Application Support

Notes

  • Rain tight when used with appropriate Red Dot covers.

Certifications

Documents

Overview

Codale Part No. 106310
Product Long Description Two Gang Universal Box Extension Ring, Silver, Aluminum, Gaskets and Screws Included, Pack of 10
Type Device Boxes, Covers & Accessories
Brand Name Red Dot
Application Built-in installation box
Material Aluminum Die Cast
Color Silver
Product UPC 04226939417
Finish Powder-Coated
Color Silver
Type Universal, Rectangular
Material Aluminum
Applications For Dry-Tite Boxes and Covers, Protects Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations
Family Brand Name Red Dot
Width 4-5/8 in
Depth 1 in
Height 4-9/16 in
Number of Gangs 2 Gang
Sub Brand Red Dot
