Manufacturer | ABB Thomas & Betts |
---|---|
Mfg Catalog # | 54148 |
Codale Part # | 12669 |
UPC | 78621054148 |

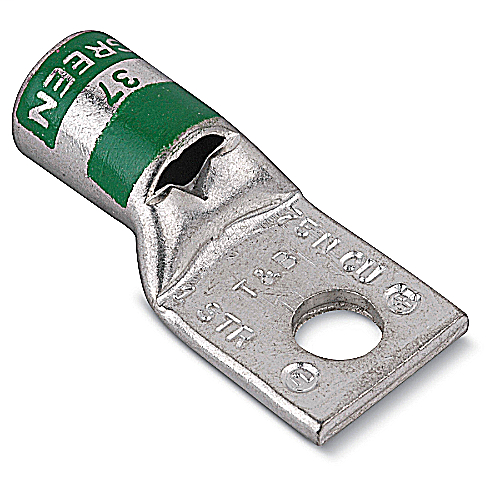

Catalog Description | Copper One-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size #1 AWG, 3/8 Inch Bolt Size, Tin Plated, Die Code 37, Die Color Code Green |
Codale Part No. | 12669 |
Product Long Description | Copper One-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size #1 AWG, 3/8 Inch Bolt Size, Tin Plated, Die Code 37, Die Color Code Green |
Type | Standard Barrel |
Brand Name | Color-Keyed |
Material | Copper |
Color | Green |
Voltage Rating | Max 35kV |
Insulation Material | None |
Cable Size | #1 AWG |
Item Long Description | Copper One-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size #1 AWG, 3/8 Inch Bolt Size, Tin Plated, Die Code 37, Die Color Code Green |
MDM Pkg GTiN | 05414363143550 |
Finish | Tin Plated |
Color | Green |
Type | Standard Barrel |
Barrel Type | Standard, Straight |
Material | Copper |
Stud Size | 3/8 in |
Conductor Size | 1 AWG |
Number of Holes | 1 Hole |
Wire Size | 1 AWG |
Cable Size | 1 AWG |
Number of Studs | 1 |
Tongue Angle | Straight |
Tongue Width | Standard |
Shape | Round |
Family Brand Name | Color-Keyed |
Insulated? | No |
Barrel Length | Standard |
Barrel Shape | Standard |
Sub Brand | Color-Keyed |
Voltage | null |
