Manufacturer | Eaton Crouse-Hinds |
---|---|
Mfg Catalog # | CGB498 |
Codale Part # | 13086 |
UPC | 78227413500 |
Product Description | 1 1/4 IN NPT MALE CORD CONNECTOR |
Catalog Description | 1 1/4 NPT MALE CORD/CABLE FITTING NEOPRENE BUSH |
Codale Part No. | 13086 |
Length | 3.001 IN |
Width | 2.25 IN |
Height | 2.25 IN |
Cable Type | Non-armoured and tray cable |
Weight | 1.15 LB |
Thread Type | NPT |
Thread Size | 1-1/4" |

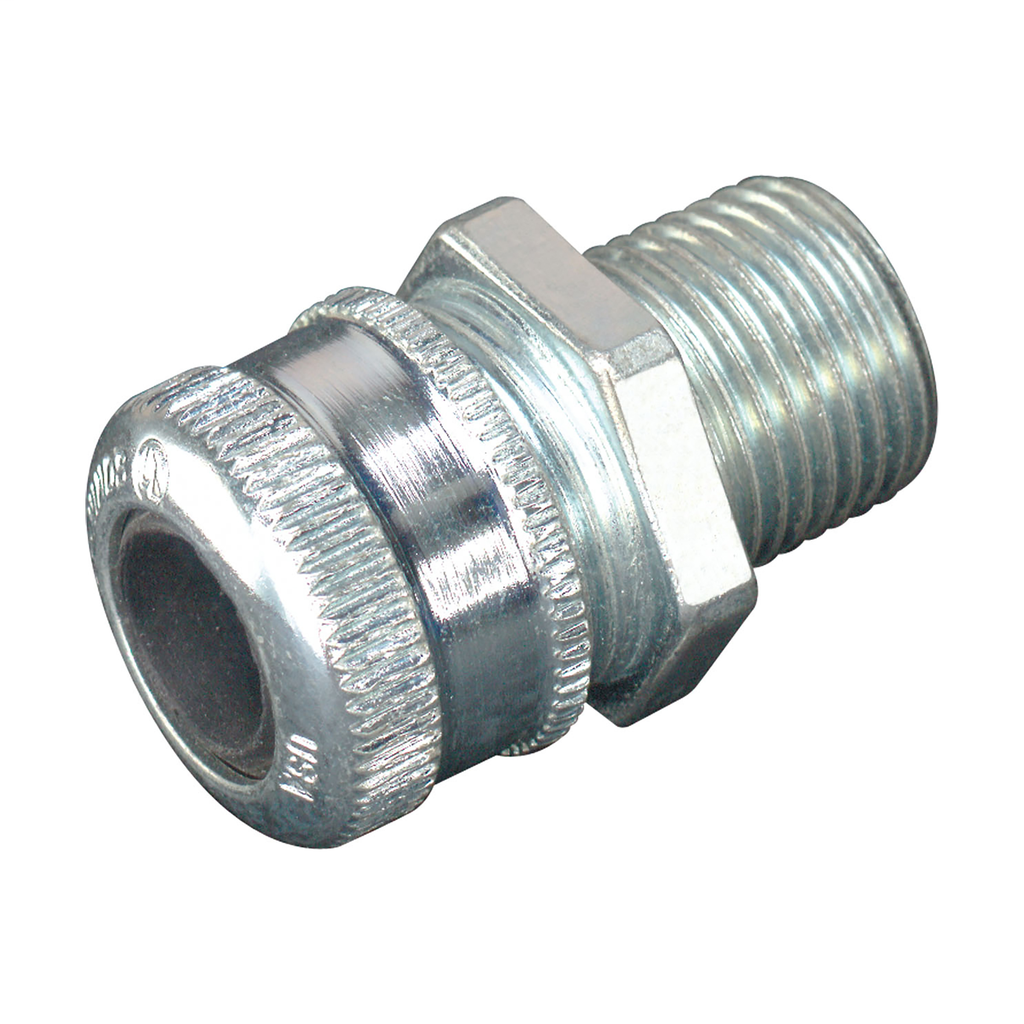

Product Short Description | Eaton's Crouse-Hinds series CGB Cable Gland |
Item Long Description | Eaton Crouse-Hinds series CGB cable gland, Cable range min/max: 0.875-1.000", Non-armoured and tray cable, Non-armoured, Steel, General purpose, 1-1/4" NPT |
MDM Pkg GTiN | 00782274135007 |
Length | 3.14 in |
Finish | Zink Chromate |
Width | 2.25 in |
Size | 1-1/4 In |
Type | Straight |
Material | Steel |
Applications | Non-Armored and Tray Cable, General Purpose |
Height | 2.25 in |
Weight | 1.15 lb |
Standard | UL (CANADA AND US),C |
Connection Type | Male NPT |
Temperature Rating | -25 to 40 C |
Family Brand Name | Crouse-Hinds Series |
Tc Connection | Male NPT |
Enclosure | Class I Div 2 |
