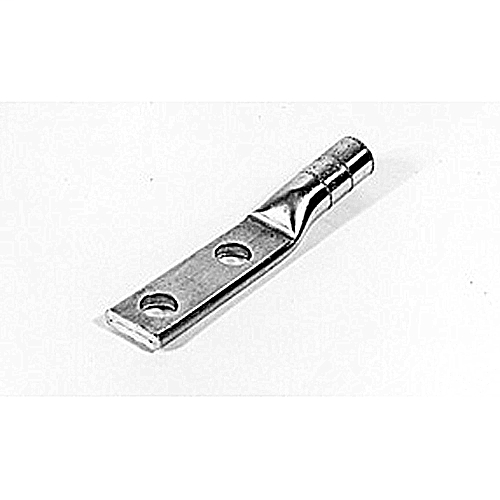

HOMAC AL250-NTN/ SA4/0NTN 2HOLE 4/0ACSR-250MCM LUG
$11.80/ea
In Stock | 9 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABB Elastimold
Mfg Catalog # AL250-NTN-/-SA4/0NTN
Codale Part # 4303179
Aluminum Compression Lug, 250 kcmil, Dual Rated Aluminum or Copper 90 Degree C., Bolt 1/2 inch, Two hole NEMA pad, Length 6 inches, Barrel 1.936 inches, Pad 1.237 inch wide x 3.344 inch long x .297 inch thick. Tin Plated

Overview

UPC 78378669343
Catalog Description Tin Plated Aluminum Compression Lug, 250 kcmil, AL9CU UL listed. 4/0 Stranded, 4/0 or 6/1 ACSR, 250-300 Compact, 246.9 AAAC. Installing Dies TX, 76, 249, 840, 11A. Bolt size 1/2 inch, Two hole NEMA pad, Length 6 inches, Barrel 1-15/16 inches, Pad 1-15/64 inch wide x 3-11/32 inch long x 19/64 inch thick. (2) 9/16 inch Diameter holes on 1-3/4 inch centers. Oxide Inhibitor. Red Cap.
Codale Part No. 4303179
Product Long Description Aluminum Compression Lug, 250 kcmil, Dual Rated Aluminum or Copper 90 Degree C., Bolt 1/2 inch, Two hole NEMA pad, Length 6 inches, Barrel 1.936 inches, Pad 1.237 inch wide x 3.344 inch long x .297 inch thick. Tin Plated
Type Compression Lug
Brand Name Blackburn
Application General Purpose Lugs for Aluminum and Copper Terminations
Material Aluminum
Size Length 6 inches, Barrel 1.936 inches, Pad 1.237 inch wide x 3.344 inch long x .297 inch thick
Finish Tin Plated
Temperature Rating 90 Degrees Celsius
Insulation Material No
Conductor Range 250 kmcil
Bolt Size 1/2 inch
Family Brand Name N/A
