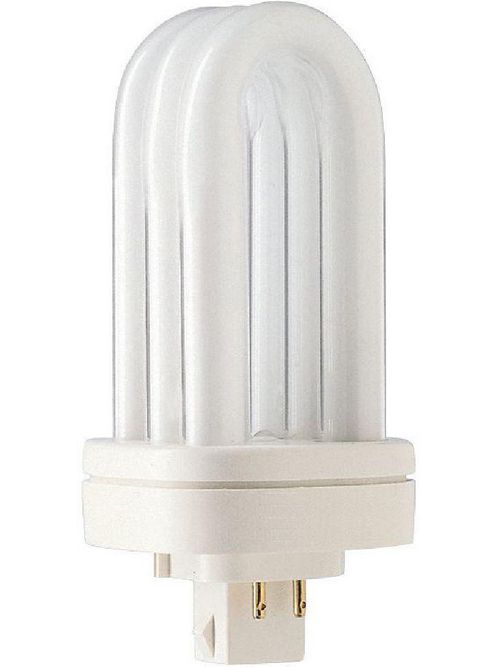

PHIL 458224 PL-T 18W/835/A/4P/ALTO

Features

• Temperature-independent lamp
• Extended relamping cycles
• Dimmable for application flexibility and energy savings
• More design flexibility
• Better for the environment
• Available in 18,26,32,42, and 57 watts with 2700,3000,3500,and 4100 color temperatures

Benefits

• Extend your relamp cycles and reduce your maintenance costs with 12,000 hours rated average life (3 hrs per start) and 20,000 hours rated average life (12 hrs per start).
• Better for the environment - only 1.4 mg of mercury per lamp.
• More design flexibility - 25% shorter than PL-C lamps.

Applications

• Ideal for downlights in offices, hotels and retail environments

Warning And Safety

• Lamp contains mercury. Manage in Accord with Disposal Laws. See: www.lamprecycle.org or 1-800-555-0050

Specifications

General Information

• Base: GX24Q-2 [ GX24q-2]
• LSF Preheat 2000 h Rated: 99 %
• LSF Preheat 4000 h Rated: 98 %
• LSF Preheat 6000 h Rated: 97 %
• LSF Preheat 8000 h Rated: 90 %

Light Technical

• Color Code: 835 [ CCT of 3500K]
• Initial lumen (Nom): 1175 lm
• Luminous Flux (Rated) (Nom): 1175 lm
• Color Designation: White (WH)
• Correlated Color Temperature (Nom): 3500 K
• Luminous Efficacy (rated) (Nom): 65.3 lm/W
• Color Rendering Index (Nom): 82
• LLMF 2000 h Rated: 92 %
• LLMF 4000 h Rated: 88 %
• LLMF 6000 h Rated: 85 %
• LLMF 8000 h Rated: 84 %
• LLMF 12000 h Rated: 81 %

Operating and Electrical

• Power (Rated) (Nom): 18.0 W
• Lamp Current (Nom): 0.225 A

Temperature

• Design Temperature (Nom): 28 °C

Controls and Dimming

• Dimmable: Yes

Mechanical and Housing

• Cap-Base Information: 4P

Approval and Application

• Energy Efficiency Label (EEL): B
• Mercury (Hg) Content (Nom): 1.4 mg
