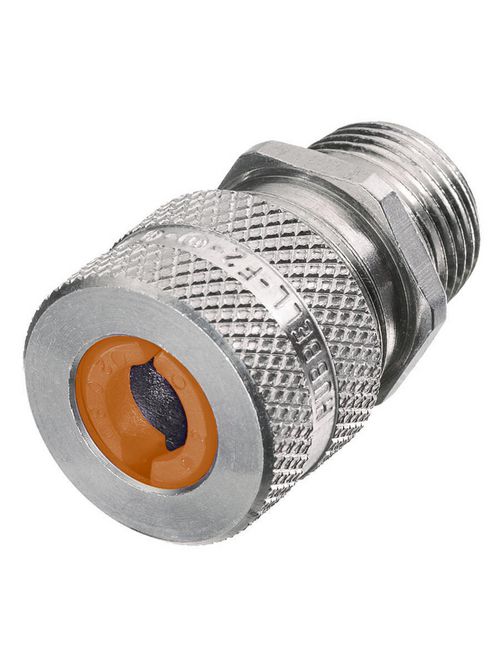

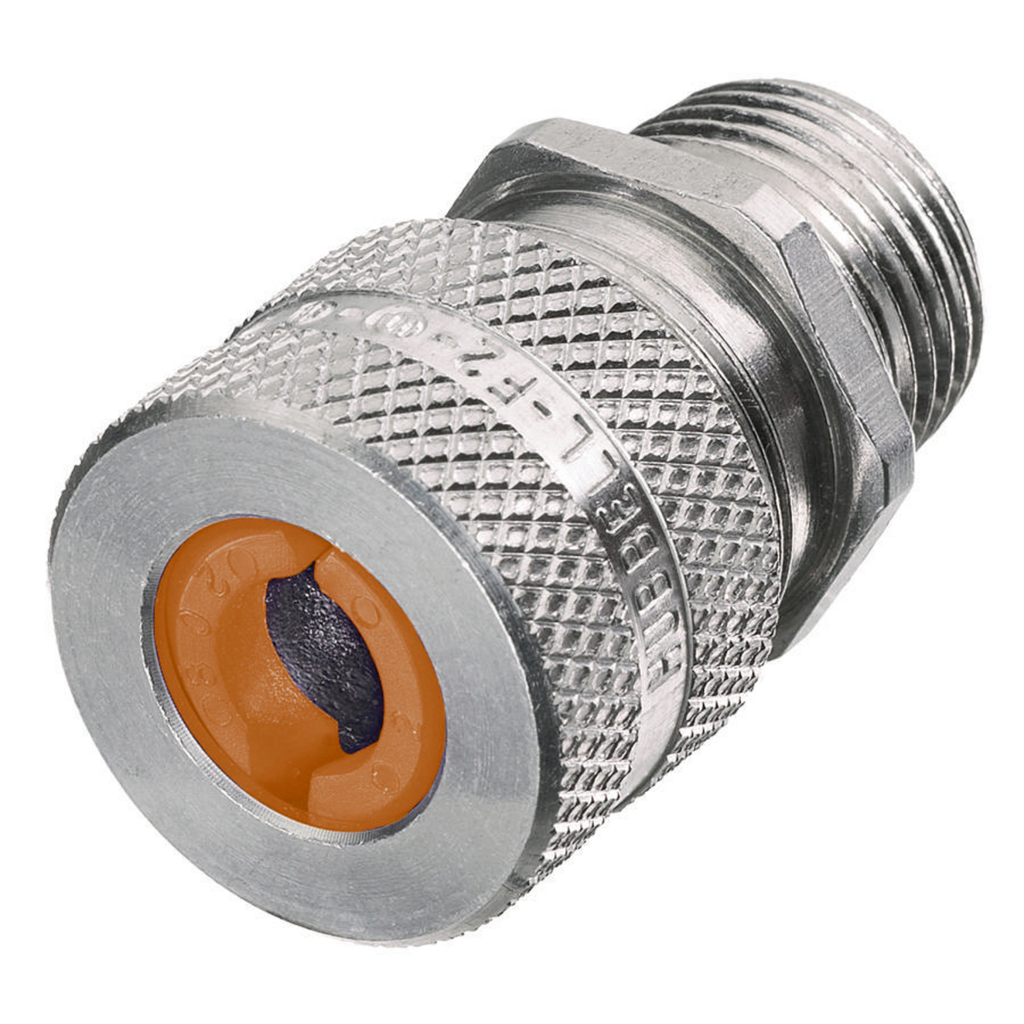

Hubbell Wiring Devices SHC1020 1/2 Inch Male Threaded 0.13 to 0.19 Inch Machined Aluminum Straight Cord Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$8.89/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell Wiring Device-Kellems
Mfg Catalog # SHC1020
Codale Part # 104363

Features

  • Aluminum cord connector provides durable performance
  • Knurled finish makes them easy to handle and maintain UL listing by hand tightening
  • Lightweight design
  • Standard Product

Specifications

  • Country of Origin: US
  • Each - Height: 2.000 in
  • Each - Length: 1.000 in
  • Each - Width: 1.000 in
  • Hub Size: 1/2 "
  • Industry Standard(s): UL Listed
  • Performance: Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
  • Application: Straight Male- Form 2
  • Conductor Range: 0.13-0 .19 in (3.2- .4.7 mm)
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
  • NEMA Rating: NEMA Type 4, 4X, 12 and 13
  • Number of Conductors: Single
  • Special Features: Standard Product
  • Standard: UL Listed
  • Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
  • Type: Straight Male

Certifications

  • EU RoHS Indicator: Yes

Overview

Codale Part No. 104363
Product Long Description Kellems Wire Management, Cord Connectors, Straight Male, .13-.19", 1/2", Aluminum
Type Straight Male
Application Straight Male- Form 2
Material Aluminum
Temperature Rating Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
NEMA Rating NEMA Type 4, 4X, 12 and 13
Conductor Range 0.13-0 .19 in (3.2- .4.7 mm)
Number of Wires / Conductors Single
Enviromental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Hub Size 1/2 "
Product Series Standard Duty
UNSPSC 39121431
Color Code Orange
Product UPC 78358520020
Length 1 Inch
Finish Machined
Width 1.000 in
Size 1/2" NPT IN
Type Straight, Male, Form 2, Standard
Material Aluminum
Number of Conductors Single
Product Series Standard Duty
Applications Straight Male- Form 2
Height 2 Inch
Temperature Rating -30 to 225 F
Family Brand Name Hubbell Wiring Device Kellems
Sub Brand Kellems Wire Management
Conductor Size 0.13 - 0.19 in
Cable Type Jacketed UL Listed Cable
Trade Size 1/2 Inch
Standard UL
Tc Connection NPT
Color Metallic
Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Country of Origin USA
