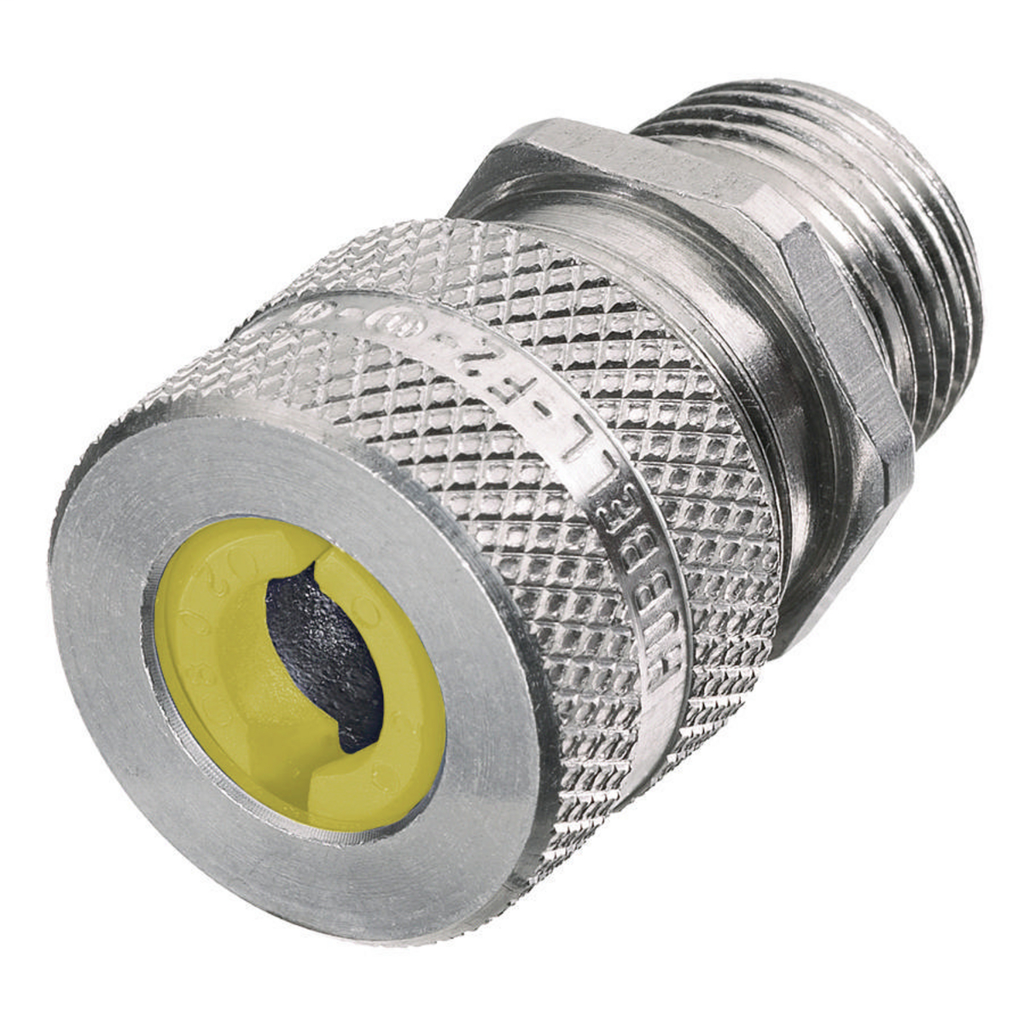

HUBBELL SHC1027 1/2 .625-.75 CONNECTOR
$8.29/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell Wiring Device-Kellems
Mfg Catalog # SHC1027
Codale Part # 104367
HUBBELL SHC1027 1/2 .625-.75 CONNECTOR

Overview

UPC 78358520027
Catalog Description CORD CONN, STR ML, .63-.75IN , 1/2IN , ALUM
Codale Part No. 104367
Product Long Description Kellems Wire Management, Cord Connectors, Straight Male, .50"-.63", 1/2", Aluminum
Type Straight Male
Application Straight Male- Form 3
Material Aluminum
Temperature Rating Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
NEMA Rating NEMA Type 4, 4X, 12 and 13
Conductor Range 0.63- 0.75 in (15.9- 19.0 mm)
Number of Wires / Conductors Single
Enviromental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Hub Size 1/2 "
Product Series Standard Duty
UNSPSC 39121431
Product Short Description Kellems Wire Management, Cord Connectors, Straight Male, .63-.75", 1/2", Aluminum
Color Code Yellow
MDM Item Long Description Kellems Wire Managem
MDM Pkg GTiN 00783585200279
Length 1.200 in
Finish Machined
Width 1.200 in
Size 1/2" NPT
Type Standard, Straight, Male, Form 3
Material Machined Aluminum
Number of Conductors 1
Conductor Size 0.63 - 0.75 in
Product Series Standard Duty
Applications Straight Male- Form 3
Cable Type Jacketed UL Listed Cable Only
Height 2.000 in
Temperature Rating -30 to 225 F
Family Brand Name Hubbell Wiring Devic
Tc Connection 1/2 in NPT
Sub Brand Kellems Wire Managem
