Manufacturer | Hubbell Wiring Device-Kellems |
---|---|
Mfg Catalog # | SHC1032 |
Codale Part # | 104372 |
UPC | 78358520032 |
Catalog Description | CORDCON, STR ML, .25-.38IN , 3/4IN , ALU |
Codale Part No. | 104372 |

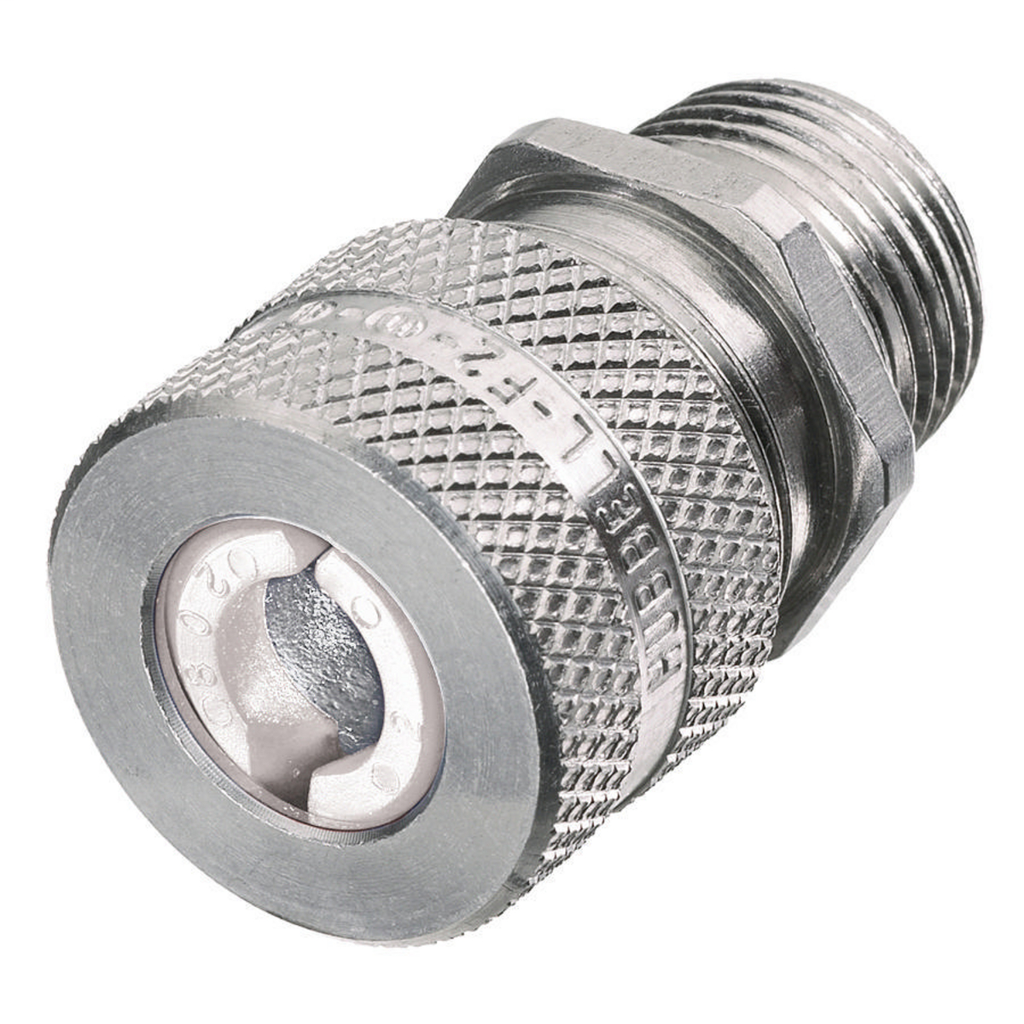

Product Long Description | Kellems Wire Management, Cord Connectors, Straight Male, .25"-.38", 3/4", Aluminum |
Type | Straight Male |
Application | Straight Male- Form 2 |
Material | Aluminum |
Color | Black |
Voltage Rating | Class 0 V |
Length | 11 in |
Width | 10.5 in |
NEMA Rating | NEMA Type 4, 4X, 12 and 13 |
Conductor Range | 0.25- 0.38 in (6.3- 9.7 mm) |
Number of Wires / Conductors | Single |
Weight | 0.79 lb |
Hub Size | 3/4" |
Style | Straight Cuff |
Product Series | Standard Duty |
UNSPSC | 39121431 |
Product Short Description | Kellems Wire Management, Cord Connectors, Straight Male, .25"-.38", 3/4", Aluminum |
Temperature Rating | Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) |
Enviromental Conditions | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
Color Code | White |
Item Long Description | Kellems Wire Management, Cord Connectors, Straight Male, .25"-.38", 3/4", Aluminum |
MDM Pkg GTiN | 00783585200323 |
Length | 6.000 in |
Finish | Machined |
Width | 4.000 in |
Size | 3/4" NPT IN |
Type | Straight, Male, Form 2, Standard |
Material | Aluminum |
Number of Conductors | Single |
Product Series | Standard Duty |
Applications | Straight Male- Form 2 |
Height | 1.200 in |
Temperature Rating | -30 to 225 F |
Family Brand Name | Hubbell Wiring Devic |
Sub Brand | Kellems Wire Managem |
Conductor Size | 0.25 - 0.38 in |
Cable Type | Jacketed UL Listed Cable |
Trade Size | 3/4 Inch |
Standard | UL |
Tc Connection | NPT |
MDM PRODUCT KEYWORD | LPCG753Z, RSR-2105, RSR-2106, CG-2575, 4803-3, 771-32, CGB293-SA, ZS205 |
Color | Metallic |
Environmental Conditions | Suitable For Use In |
