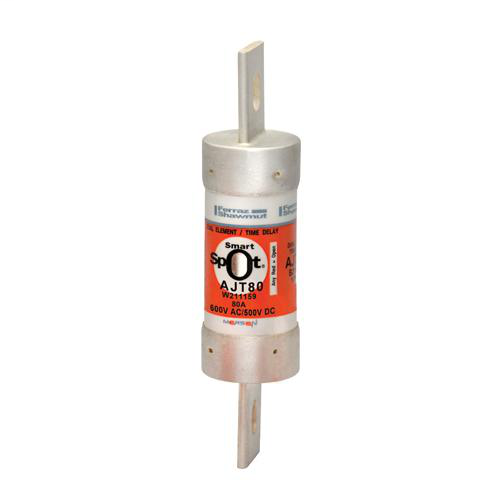

Fuse Amp-Trap 2000® 600V 80A Time-Delay Class J AJT Series Smart-Spot
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$87.99/ea
In Stock | 15 available at 2 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer SHAWMUT
Mfg Catalog # AJT80
Codale Part # 1433113
Fuse Amp-Trap 2000® 600V 80A Time-Delay Class J AJT Series Smart-Spot

Categories

Overview

UPC 78200196266
Catalog Description Amp-Trap 2000 time-delay AJT fuses provide IEC Type "2" (No Damage) protection to main, feeder, and branch-circuits, for all types of loads - yet, they require only half the mounting space needed for 600V UL Class RK fuses. Time-delay characteristics handle motor in-rush currents without nuisance trips. Its current-limiting ability and wide range of ratings provide excellent overcurrent protection for all your applications. An optional mechanical blown fuse indicator and Microswitch is available on blade-type (70 to 600A) fuses for visual and/or remote blown fuse indication. 600 Volts 80 amps .
Codale Part No. 1433113
Product Long Description Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJTs time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
Mounting Clip or Bolted
Product Short Description Fuse Amp-Trap 2000® 600V 80A Time-Delay Class J AJT Series Smart-Spot
Family Brand Name Ferraz Shawmut
Item Long Description Amp-Trap 2000 AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJTs time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
MDM Pkg GTiN 00782001962661
Length 4.63 in
Voltage null
Type Time-Delay
Diameter 1.06 in
Terminal Type Blade
Applications For Motor Circuits, Mains, Feeders, Branch Circuits, Lighting, Heaters, Transformers, Control Panels, Circuit Breaker Back-up, Bus Duct, Load Centers
Mounting Type Clip
Weight 0.28 lb
Frequency 50 Hz
Pkg Qty 5
Class J
Insulation Material GMG
Construction Fiberglass
Tc Connection Blade
Amperage 80 Amp
Interrupt Rating 200 kA
Indicator SmartSpot
Terminal Material Silver-Plated Copper
Sub Brand Amp-Trap 2000
Rated Voltage AC 600 V
Rated Voltage DC 500 V
Fuse Class Class J
MDM PRODUCT KEYWORD JTD080, LPJ-80SP, JDL80, AJT80EI, JTD080ID
