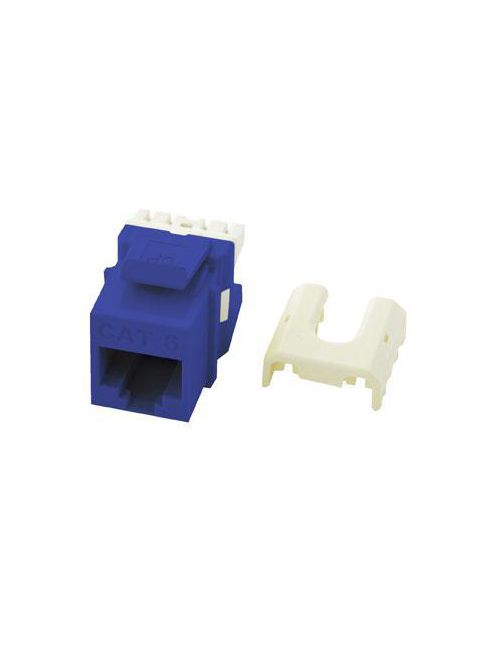

On-Q WP3476-BE RJ45 8-Position 8-Wire Category 6 Blue Plastic Quick Connect Keystone Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$8.90/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand Pass & Seymour
Mfg Catalog # WP3476-BE
Codale Part # 4307983

Features & Benefits

  • Easily terminate all four pairs using the Legrand Punch & Go Tool (AC3400)
  • RJ45 Inserts can be terminated with any 110 punchdown tool
  • Exceeds EIA/TIA 568A/B Cat 6 Performance Specifications
  • Available in Black, Brown, White, Light Almond, Grey, Blue, Orange, Ivory, Red

Specifications

General Info

  • Cable Type: Cat 6
  • Color: Blue
  • Housing Material: High Impact Flame Retardant Plastic
  • Type: Keystone Insert
  • Input Plug Type: RJ45 Male
  • Termination: via Punchdown Tool
  • Finish: 50 microinches 24K Hard Gold over 70-100 microinches Nickel
  • Connection Type: 8P8C
  • Pair Count: 4

Dimensions

  • Width Metric: 16.9 mm
  • Depth ( Metric): 30 mm
  • Height Metric: 22 mm
  • Height (U S): .87"
  • Width (U S): .665 in
  • Depth (U S): 1.18"

Listing Agencies/Third Party Information

  • UL Listing No: ANSI/UL 1863
  • UN SPS C: 39121704
  • CSA Listing Info: CAN/CSA-C22.2 No. 182.4-1990

Eco Information

  • RoHS Compliant: Yes

Technical Information

  • Humidity: Max Noncondensing 93%
  • Storage Temperature: -40°C to 70°C
  • Wire Gauge: 22 - 24 AWG
  • Flammabillity Rating: UL94-V0
  • Material: Phosphor Bronze Alloy
  • Mounting: Wallplate or Strap
  • Number of Receptacles: 1
  • Receptacle Type: RJ45 Female
  • Operating Temperature Fahrenheit: 14°F to 140°F
  • Operating Temperature Celsius: -10°C to 60°C
  • Ohm Value: Contact Resistance: Spring Wire - 20 milliohm max, IDC - 2.5 milliohm max

Available Options

  • Cat 6 Quick Connect RJ45 Keystone Insert, Brown
  • Cat 6 Quick Connect RJ45 Keystone Insert, Gray
  • Cat 6 Quick Connect RJ45 Keystone Insert, Blue
  • Cat 6 Quick Connect RJ45 Keystone Insert, Black
  • Cat 6 Quick Connect RJ45 Keystone Insert, Red
  • Cat 6 Quick Connect RJ45 Keystone Insert, Orange
  • Cat 6 Quick Connect RJ45 Keystone Insert, Light Almond
  • Cat 6 Quick Connect RJ45 Keystone Insert, White
  • Cat 6 Quick Connect RJ45 Keystone Insert, Ivory

Resources

Related Products

  • AC3607-BE-V1
  • AC3400

Overview

UPC 80442803672
Item Long Description Cat 6 Quick Connect RJ45 Keystone Insert, Blue
Finish Sn Alloy Plated, Gold and Nickel Plated Spring Wire
Width .665 in
Size 0.76 x 0.67 x 1.18 (19.30 x 16.9 x 30) in (mm)
Color Blue
Type RJ45, Female
Material Phosphor Bronze, High Impact Flame Retardant Plastic Housing
Applications Residential use
Cable Type Category 6
Depth 1.18 in
Height .87 in
Wire Size 24 AWG
Cable Size 24 - 22 AWG
Temperature Rating 14 - 140 F
Family Brand Name On-Q
Tc Connection RJ45 Female
Blade Dimensions 0.76 x 0.67 x 1.18 in
Environmental Conditions 0 - 93% RH Non-Condensing
Number of Positions 8
Enclosure Housing Material: High Impact Flame Retardant Plastic
Used With Round, Flat and Solid Core Cables
Sub Brand Legrand-On-Q
Voltage 1000 Volt
