Manufacturer | Ideal Industries |
---|---|
Mfg Catalog # | 30-451 |
Codale Part # | 141316 |
UPC | 78325030451 |
Product Description | 18-10AWG WING-NUT WIRE CONNECTOR (100 BOX) |
Catalog Description | IDEAL, Wire Connector, Wing-Nut, Twist-On, Number Of Conductors: 1 to 6, Conductor Range: 18 - 10 AWG, Min 2 - 18, MAX 3-12, Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F), Material: Flame-retardant polypropelene shell, Color: Yellow, Voltage Rating: 600 V, Model Number: 451, Width: 1-1/64 IN, Height: 11/16 IN, Flammability Rating: UL 94V-2 |
Codale Part No. | 141316 |
Product Long Description | More power with every twist. |

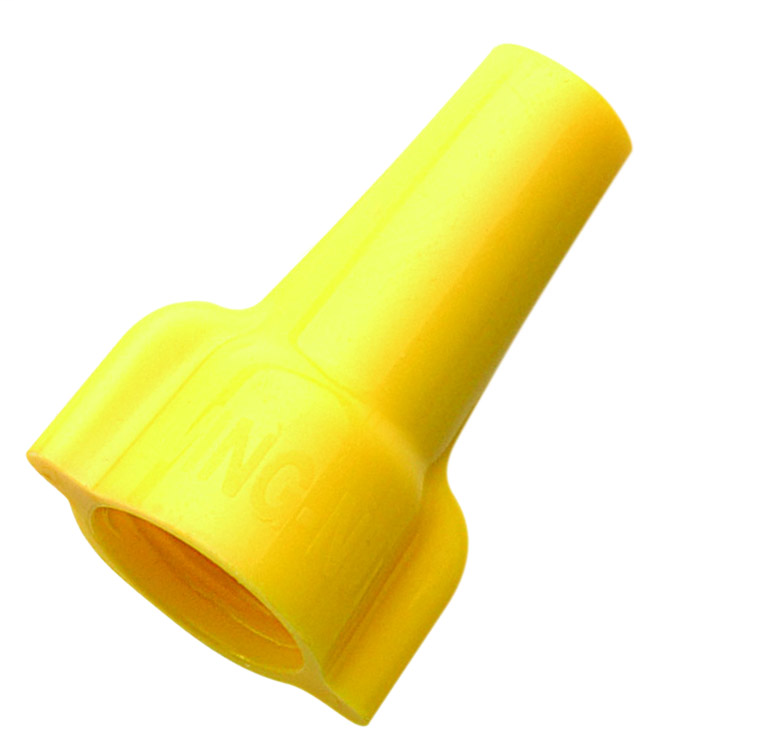

Product Short Description | Wing-Nut® Wire Connector, Model 451® Yellow, Box of 100 |
Item Long Description | More power with every twist.The Wing-Nut Wire Connector provides an easy, secure grip when connecting a wide range of wires. The specially designed contoured wings make for extra torque and quick work on any electrical job. The wide range, live-action spring is flexible enough to handle small combinations with ease but then expands to accept large combinations when you need it. It can also be reused on same size or larger combinations for quick and easy circuit changes and additions.The Wing-Nut also features a tough, copolymer, flame-retardant shell that withstands environmental extremes with a deep skirt that provides maximum dielectric protection to prevent flash-over and turned-back strands.The Red Model 452 offers the widest range winged connector in the industry from 2 #18 to 4 #10. |
MDM Pkg GTiN | 00783250304516 |
Color | Yellow |
Type | Twist-On |
Material | Flame-Retardant Poly |
Number of Conductors | 1 to 6 |
Conductor Size | 18-10 AWG |
Applications | Insulating or Joining 2 or more conductors |
Temperature Rating | 105 C |
Family Brand Name | Ideal |
Environmental Conditions | 105 C |
Sub Brand | Wing Nut |
MDM DDS PROP65 WARNING | ![]() |
Voltage | null |
MDM PRODUCT KEYWORD | Wirenuts Wire Nuts Connectors |
